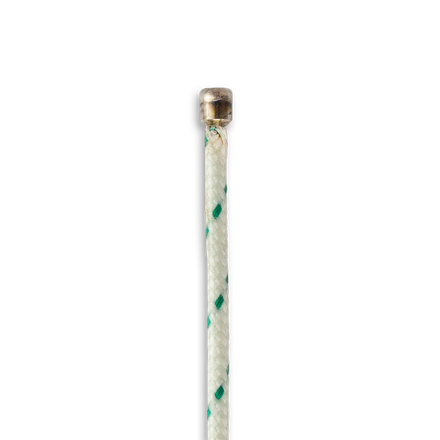

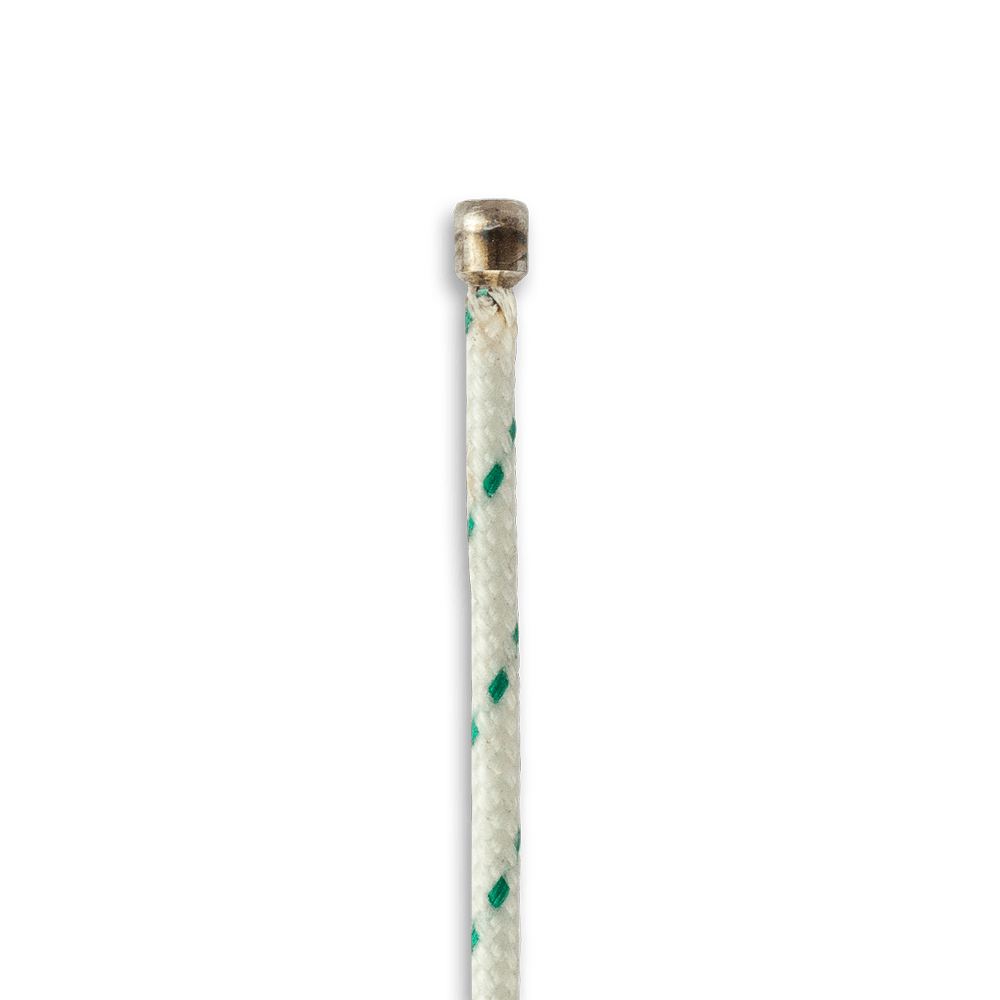

Inline thermocouple Type K, NiCr-Ni
- Temperature measurment: up to +1,000°C
- Wire type: Fibreglass/fibreglass, 0.5 mm, wire, Tmax: +450 °C
Description
The drive-in thermocouple is particularly suitable for measuring the temperature of brake discs or pads. It can be hammered into a hole and measure the temperature by grinding. The design also allows measurements to be taken over a longer period of time. The head can be ground down with the brake pad without losing its function. Temperatures of up to 1000°C can be measured on the measuring head.
Technical data
- Thermocouple pairing: Type K, NiCr-Ni
- Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07

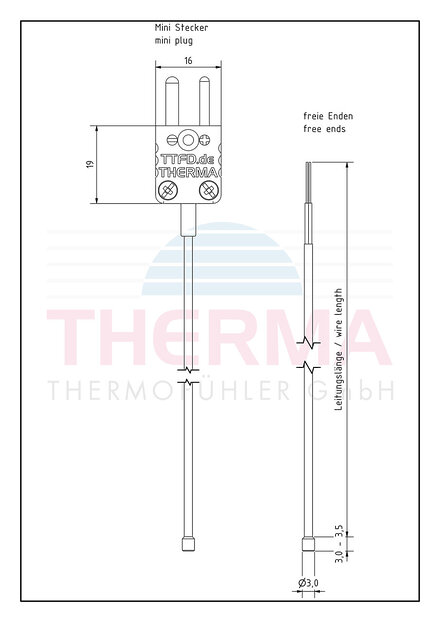

- Head: Stainless steel, ∅3,0 x 3,5mm
- Conductor: Fibreglass G/G24-KK-IEC
- Conductor: Wire, 2 x 0.5 mm
- Insolation: Fibreglass
- Operating temperature: up to +450 °C
- Wire dimension: approx. 2.1 x 1.5 mm
- Wire length: 500–1,500 mm
- Connection: Selection
Limiting deviation
Class 1 as per DIN EN 60584-1: 2014-07
- -40 °C to +375 °C = ± 1,5 °C
- +375 °C to +1.000 °C = ± 0,004 x |t|
Discount on large quantities on request
