Surface thermocouples
A number of things need to be noted when measuring temperatures on surfaces. To avoid distortion of the measuring result, the entire measuring surface of the thermocouple must have contact with the surface being measured. A low temperature influence by the thermocouple is also important. This can only be achieved by ensuring a low net weight of the thermocouple. On electrically conductive surfaces, it must be borne in mind that currents applied from elsewhere can distort the measuring result. No other electrical equipment should be connected or earthed to the surface. If this cannot be avoided, insulated thermocouples should be chosen. In addition to the temperature range, where the thermocouple can be attached it is also crucial for making the right choice.
We offer thermocouples for every surface, providing easy installation and rapid response times. The type, wire length and connection type can be chosen at will for all surface thermocouples.
1. Designs

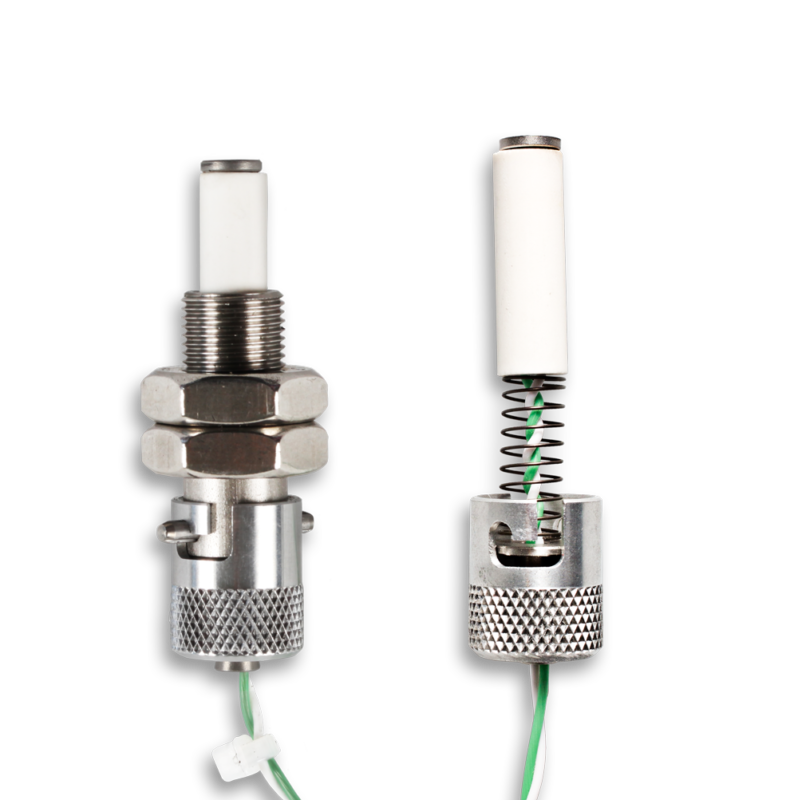

With the spring-mounted loop thermocouple, the surface temperature of moving parts, e.g. brake disks, drums or treadmills, can be determined. The measuring point consists of a small metal plate which is seated on a round ceramic housing. A spring which pushes the measuring point with a consistent pressure against the surface is fitted behind the housing. By attaching the mounting adapter, the spring-mounted sensor is guided onto the surface using a bayonet cap. This ideally compensates movements caused by centrifugal forces and vibrations, as well as the reduction in volume caused by wear, and guarantees a valid measuring result.
| Typical area of application | Pros | Cons |
|---|---|---|
|
|
|

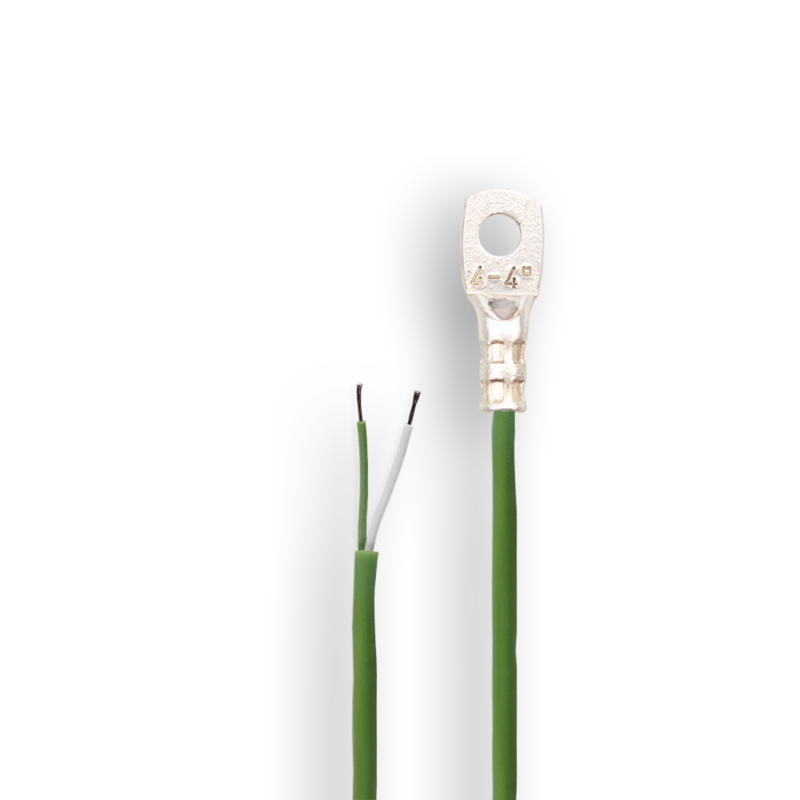

We offer a particularly robust version with a surface sensor in the form of a cable lug. The thermocouple’s measuring point is integrated into the stainless steel cable lug, thereby allowing the thermocouple to be screwed onto a surface. The surface temperature can thus be reliably measured at a defined point. Thanks to the preparation for metric thread sizes, the installation location can be quickly changed, facilitating multiple use. Depending on the wire connected, measurement of surface temperatures up to +550 °C is possible.
| Typical area of application | Pros | Cons |
|---|---|---|
|
|
|
With the spring-mounted loop thermocouple, the surface temperature of moving parts, e.g. brake disks, drums or treadmills, can be determined. The measuring point consists of a small metal plate which is seated on a round ceramic housing. A spring which pushes the measuring point with a consistent pressure against the surface is fitted behind the housing. By attaching the mounting adapter, the spring-mounted sensor is guided onto the surface using a bayonet cap. This ideally compensates movements caused by centrifugal forces and vibrations, as well as the reduction in volume caused by wear, and guarantees a valid measuring result.
| Typical area of application | Pros | Cons |
|---|---|---|
|
|
|
Images of surface thermocouples
Buy surface thermocouples online

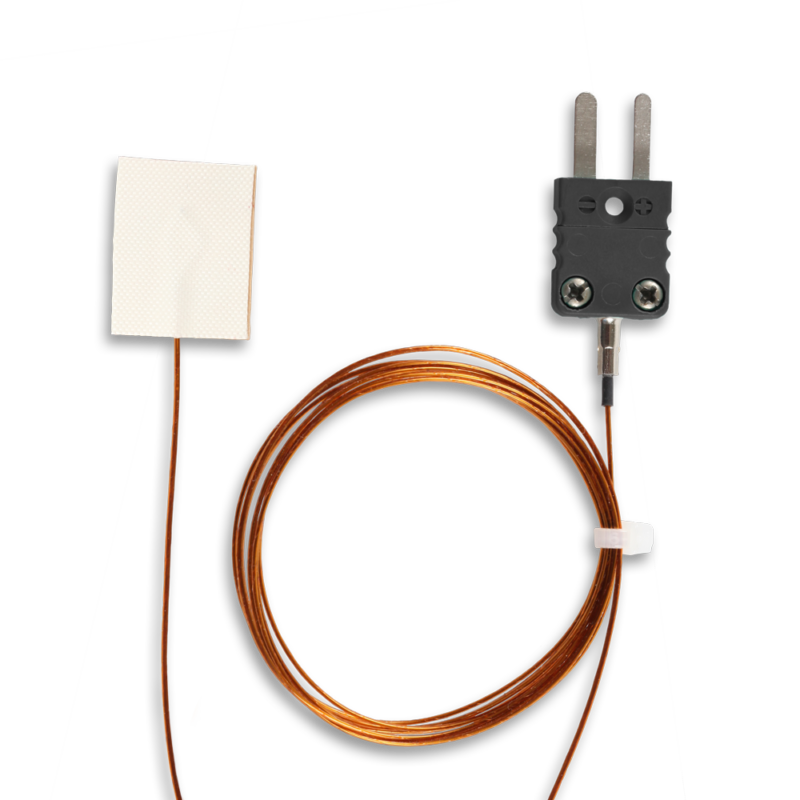

Cable lug | Fibreglass | Type K
20,55 €
Spring loaded | Copper | Type K
37,68 €
Cable lug | Fibreglass | Type J
20,55 €Unlock Precise Temperature Monitoring with Surface Thermocouples
Surface thermocouples have revolutionized temperature measurement in various industries, offering unparalleled precision and reliability. These ingenious devices consist of two dissimilar metal wires joined at one end, creating a junction that generates a small electrical voltage proportional to the temperature difference between the junction and the reference point. What sets surface thermocouples apart is their ability to measure temperatures directly on the surface of an object, making them invaluable in countless applications.
We’ve seen firsthand how surface thermocouples transform temperature monitoring processes. Their compact design allows for easy installation in tight spaces, while their fast response time ensures real-time data collection. This rapid feedback is crucial in industries where even slight temperature fluctuations can significantly impact product quality or process efficiency.
One of the key advantages of surface thermocouples is their versatility. They can be used on flat or curved surfaces, making them suitable for a wide range of applications. Whether you’re working with metal, plastic, or even glass surfaces, there’s a surface thermocouple designed to meet your specific needs. This adaptability has made them a go-to solution for engineers and technicians across various sectors.

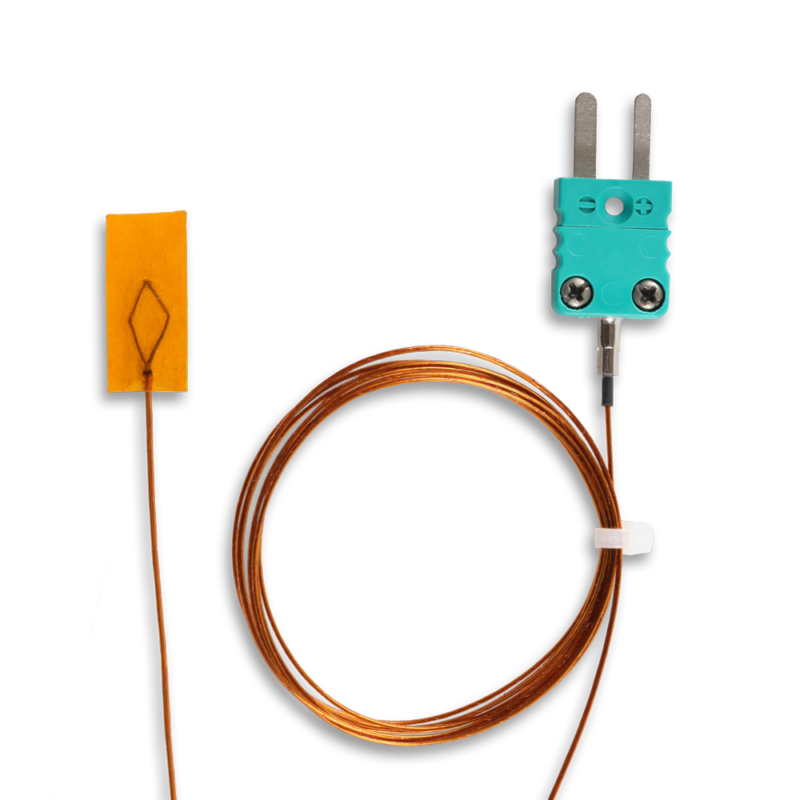

Surface mount thermocouples, a subset of this technology, offer even greater flexibility in installation. These low-profile sensors can be easily attached to surfaces using adhesives or mechanical fasteners, minimizing disruption to the monitored system. This feature is particularly valuable in scenarios where maintaining the integrity of the monitored surface is crucial.
How Surface Mount Thermocouples Revolutionize Industrial Processes
The impact of surface mount thermocouples on industrial processes cannot be overstated. These innovative sensors have transformed how we approach temperature monitoring in manufacturing, processing, and quality control applications. By providing accurate, real-time temperature data, surface mount thermocouples enable precise process control, leading to improved product consistency and reduced waste.
We’ve observed that industries ranging from automotive to aerospace have embraced surface mount thermocouple technology. In automotive manufacturing, for instance, these sensors play a critical role in monitoring the temperature of engine components during testing and operation. This data is essential for optimizing engine performance, improving fuel efficiency, and ensuring compliance with emissions standards.
The food and beverage industry has also benefited significantly from surface mount thermocouples. These sensors are used to monitor the temperature of processing equipment, ensuring that food products are prepared and packaged at the correct temperatures. This not only ensures food safety but also helps maintain consistent product quality, which is crucial for customer satisfaction and brand reputation.
In the electronics industry, surface mount thermocouples have become indispensable for thermal management. As electronic devices become smaller and more powerful, managing heat dissipation becomes increasingly challenging. Surface mount thermocouples allow engineers to monitor temperature distribution across circuit boards and components, enabling the design of more efficient cooling systems and preventing thermal-related failures.
Boost Efficiency in Your Manufacturing with Surface Thermocouples
Implementing surface thermocouples in manufacturing processes can lead to substantial improvements in efficiency and productivity. These sensors provide the data necessary to optimize heating and cooling cycles, reduce energy consumption, and minimize downtime due to equipment overheating.
We’ve helped numerous clients enhance their manufacturing efficiency by strategically incorporating surface thermocouples into their processes. One of the key benefits is the ability to identify and address temperature-related inefficiencies quickly. For example, in plastic injection molding, precise temperature control is crucial for producing high-quality parts. Surface thermocouples placed on the mold surface provide real-time feedback, allowing operators to adjust parameters on the fly and reduce scrap rates.
Another area where surface thermocouples boost efficiency is in heat treatment processes. Whether you’re working with metals, ceramics, or composites, accurate temperature control is essential for achieving desired material properties. Surface thermocouples enable precise monitoring of workpiece temperatures throughout the heat treatment cycle, ensuring consistent results and reducing the need for rework or post-processing.
Thermocouple surface probes, a variant of surface thermocouples, offer additional flexibility in certain manufacturing scenarios. These probes can be easily moved from one measurement point to another, making them ideal for spot-checking temperatures across large pieces of equipment or for troubleshooting temperature-related issues. This mobility can significantly reduce the time and cost associated with comprehensive temperature monitoring.
Improve Product Quality Using Advanced Surface Mount Thermocouple Technology
Advanced surface mount thermocouple technology has emerged as a game-changer in product quality control across various industries. By providing precise, localized temperature measurements, these sensors enable manufacturers to maintain tight control over critical processes, resulting in higher quality products and reduced defect rates.
We’ve seen remarkable improvements in product quality when clients integrate surface mount thermocouples into their quality control systems. In the semiconductor industry, for instance, these sensors play a crucial role in monitoring wafer temperatures during various stages of chip production. Even minor temperature variations can lead to defects in the final product, making the precision offered by surface mount thermocouples invaluable.
Surface thermocouple type K, one of the most common variants, offers a wide temperature range and good accuracy, making it suitable for a broad range of applications. Its reliability and cost-effectiveness have made it a popular choice for quality control in industries ranging from automotive to consumer electronics. By strategically placing type K surface thermocouples at critical points in the production process, manufacturers can ensure that products meet stringent quality standards.
High temperature surface thermocouples have opened up new possibilities for quality control in extreme environments. These specialized sensors can withstand temperatures well above 1000°C, making them ideal for monitoring processes such as metal casting, glass manufacturing, and ceramic production. By providing accurate temperature data in these challenging conditions, high temperature surface thermocouples help ensure product consistency and reduce the risk of defects caused by temperature-related issues.
Thermocouples for surface temperature measurement have also proven invaluable in the pharmaceutical and biotechnology industries. In these sectors, maintaining precise temperature control during production and storage is critical for ensuring product efficacy and safety. Surface temperature thermocouples allow for continuous monitoring of equipment and storage facilities, helping maintain the integrity of temperature-sensitive products throughout their lifecycle.
