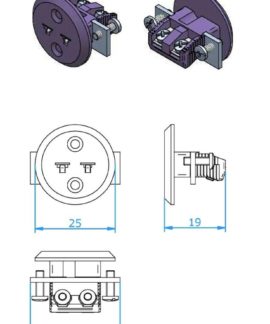

Panel Miniature Insert

Order Thermocouple Panel-Mount Couplings Directly from the Manufacturer

You order thermocouple panel-mount couplings from Therma directly from our own production in Lindlar, with no middleman and short lead times. Therma has been manufacturing connection technology since 1991, by hand and in line with ISO 9001, and ships most standard versions ex stock within one week.

In our range of miniature thermocouple connectors, you will find standard versions such as PMI as well as high-temperature variants such as PMIH for considerably hotter environments. If you need a larger format, the standard connectors series provides matching thermocouple panel-mount couplings with identical colour coding and polarity.

If a thermocouple panel-mount coupling is required in special dimensions, with a self-locking mechanism or with bracket mounting, our development department handles the implementation according to drawing or STEP file. On request, Therma supplies an inspection certificate 3.1 with every batch.

Miniature Panel-Mount Couplings for Type K, J, T and N in the Shop

The miniature panel-mount couplings fit all common thermocouples of types K (NiCr-Ni), J (Fe-CuNi), T (Cu-CuNi) and N (NiCrSi-NiSi). Each connector type is manufactured with thermal-EMF-free contacts so the measuring chain works without unwanted effects at the reference junction.

The colour coding of the thermocouple panel-mount coupling follows DIN EN 50212 and prevents mix-ups during operation. Type K is green, type J black, type T brown and type N pink. This means plug connections can be assigned to a sensor in plain sight on the equipment, without having to consult a diagram.

On the sensor side, customers often combine the panel-mount couplings with matching compensating cables in tolerance class 2. On request, Therma supplies the thermocouple panel-mount coupling together with cable and sensor as a fully assembled set.

Robust Connection from Sensor to Evaluation Device

A robust connection from sensor to evaluation device is essential as soon as a thermocouple is permanently attached to a machine, a furnace or a supply line. Thermocouple panel-mount couplings from Therma are designed for fixed installation in control cabinets, front panels and operator desks and withstand typical loads from vibration, heat and cleaning cycles.

In standard form, a thermocouple panel-mount coupling withstands the typical industrial range up to 220 °C; the high-temperature PMIH variant extends the application window to considerably hotter applications. The couplings are therefore suitable both for the wiring of sheathed thermocouples in the system periphery and for the connection to digital indicators.

Self-locking models such as the PMLI secure the plug connection against unintentional disconnection, which is particularly relevant in test rigs and installations with high vibration loads. Variants with bracket mounting also make replacement easier in service cases.

Personal Expert Advice on Thermocouple Panel-Mount Couplings

You receive personal expert advice on thermocouple panel-mount couplings from Therma directly from staff who have been working with connection technology since the company was founded in 1991. In our family-owned business, advice is understood as a duty rather than an extra service, from the initial enquiry through to dispatch.

For your thermocouple panel-mount coupling, you give us the sensor type, the form factor, the installation environment and the desired quantity. You then receive a technically reviewed recommendation, often on the same working day. For special requests, a sketch, a data sheet or a STEP file is enough and our development department takes over the rest. Standard items leave our Lindlar plant within one week as a rule by UPS.

You can reach us via the contact form for a binding quote request, an inspection certificate 3.1 or a quantity discount for larger orders. Therma understands temperature measurement as a long-term partnership with industry, research and motorsport.
