Startseite » Shop » Displays » Data logger temperature | 2-channels | Type K, T
Previous product
Sheathing thermocouple | Teflon | Type K | larger Ø 3mm 23,34 €
Back to products
Next product
Data logger temperature | 4-channels | Type K, T, J 390,00 €
Click to enlarge

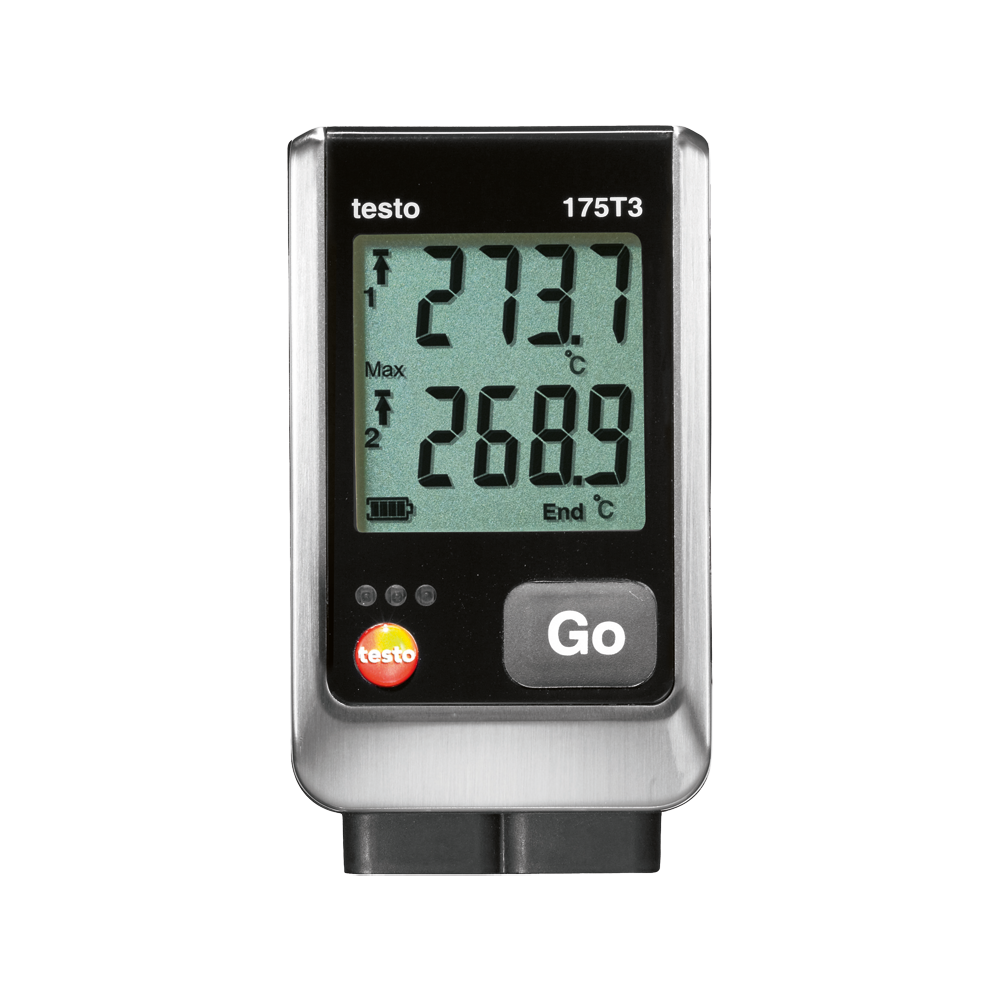

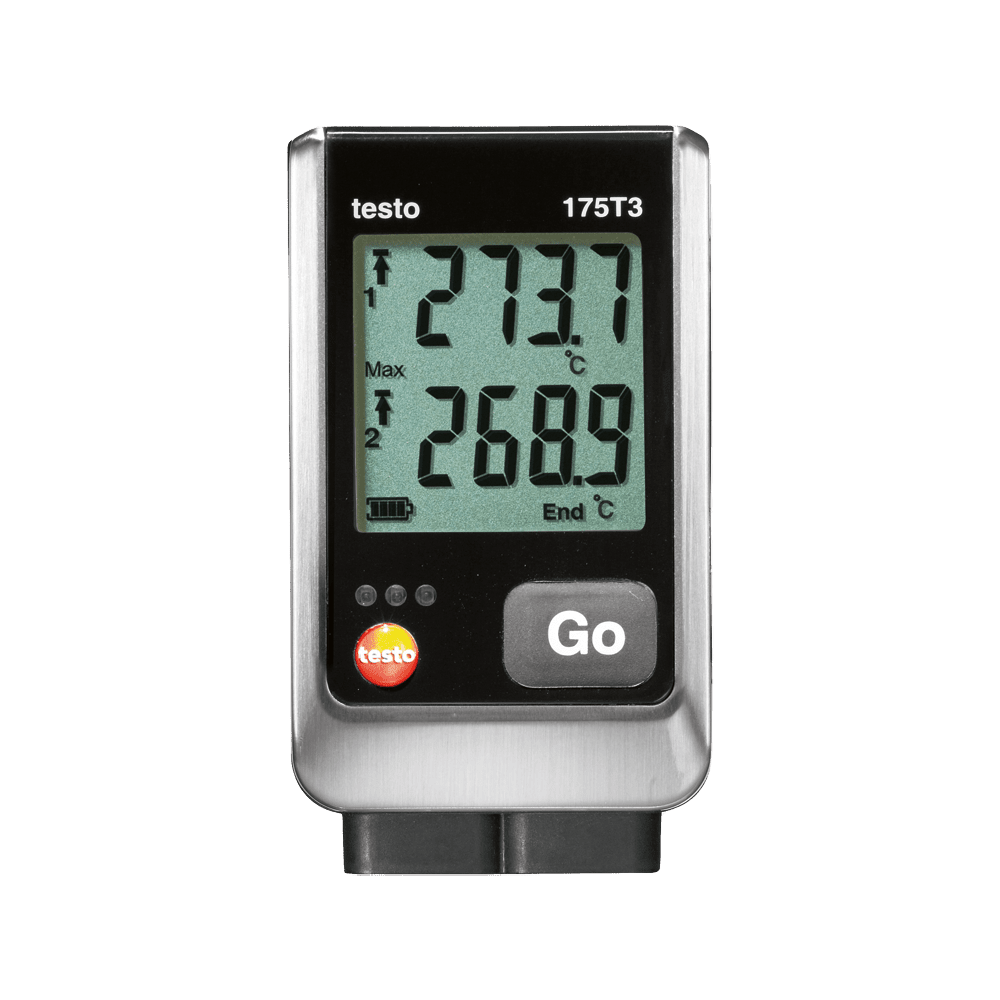

Data logger temperature | 2-channels | Type K, T

  • Two external sensor connections (thermocouple Type T and Type K)

close
Categories
  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Data logger for two external thermocouples

  • Connection 2 x plug miniature (CMP)

Type K (NiCr-Ni)

  • Measuring range: -50 … +1000 °C
  • Accuracy ±1 digit: ±0.5 °C (-50 … +70 °C);  ±0.7 % of m.v. (+70.1 … +1000 °C)
  • Resolution: 0.1 °C

Type T (Cu-CuNi)

  • Measuring range: -50 … +400 °C
  • Accuracy ±1 digit: ±0.5 °C (-50 … +70 °C); ±0.7 % of m.v. (+70.1 … +400 °C)
  • Resolution: 0.1 °C

Benefits

  • Large, easily legible display
  • High data security
  • Measurement data memory for 1 million measurement values
  • Up to 3 years’ battery life

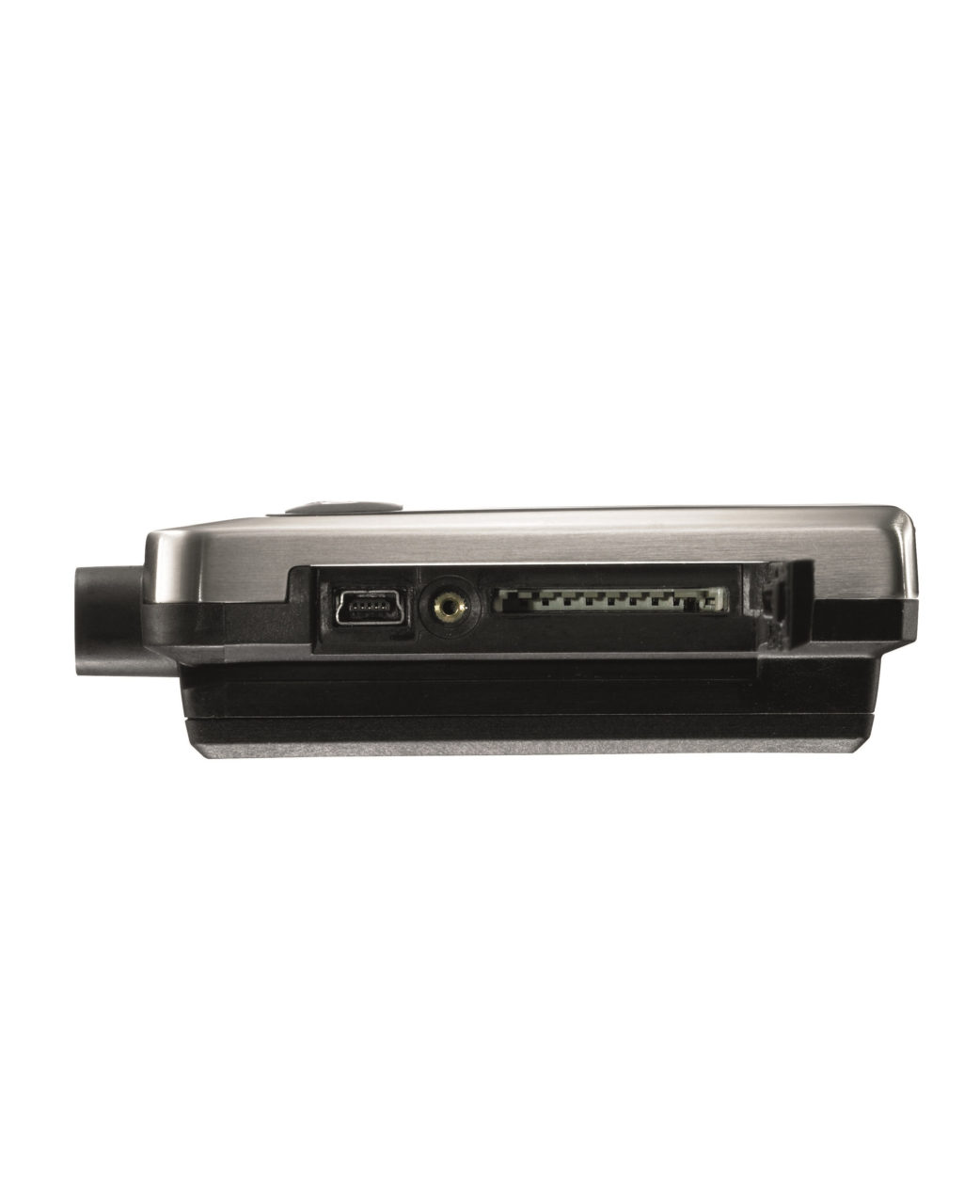

  • Data transfer via USB cable or SD card
  • Two external sensor connections (thermocouple Type T and Type K)

Description

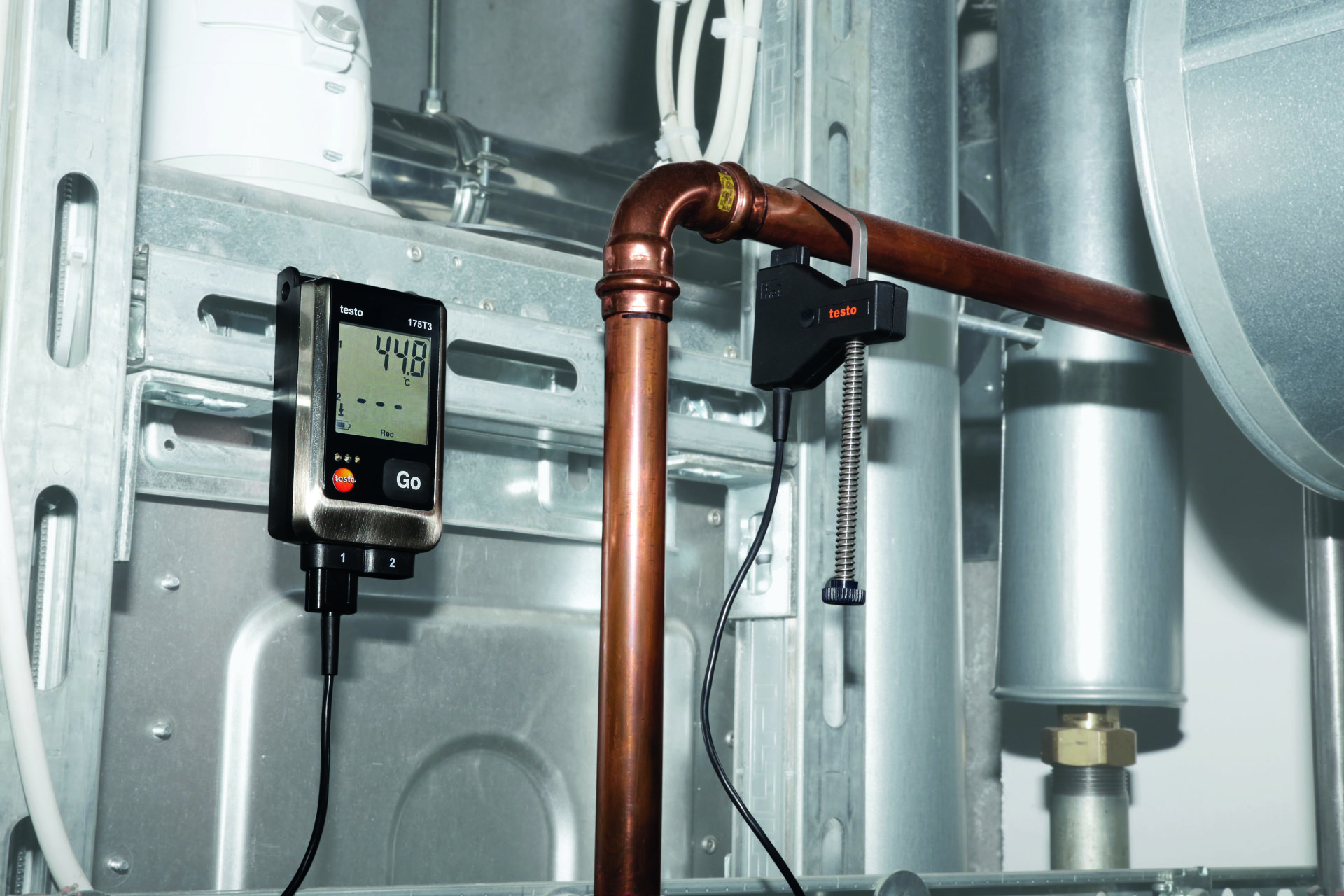

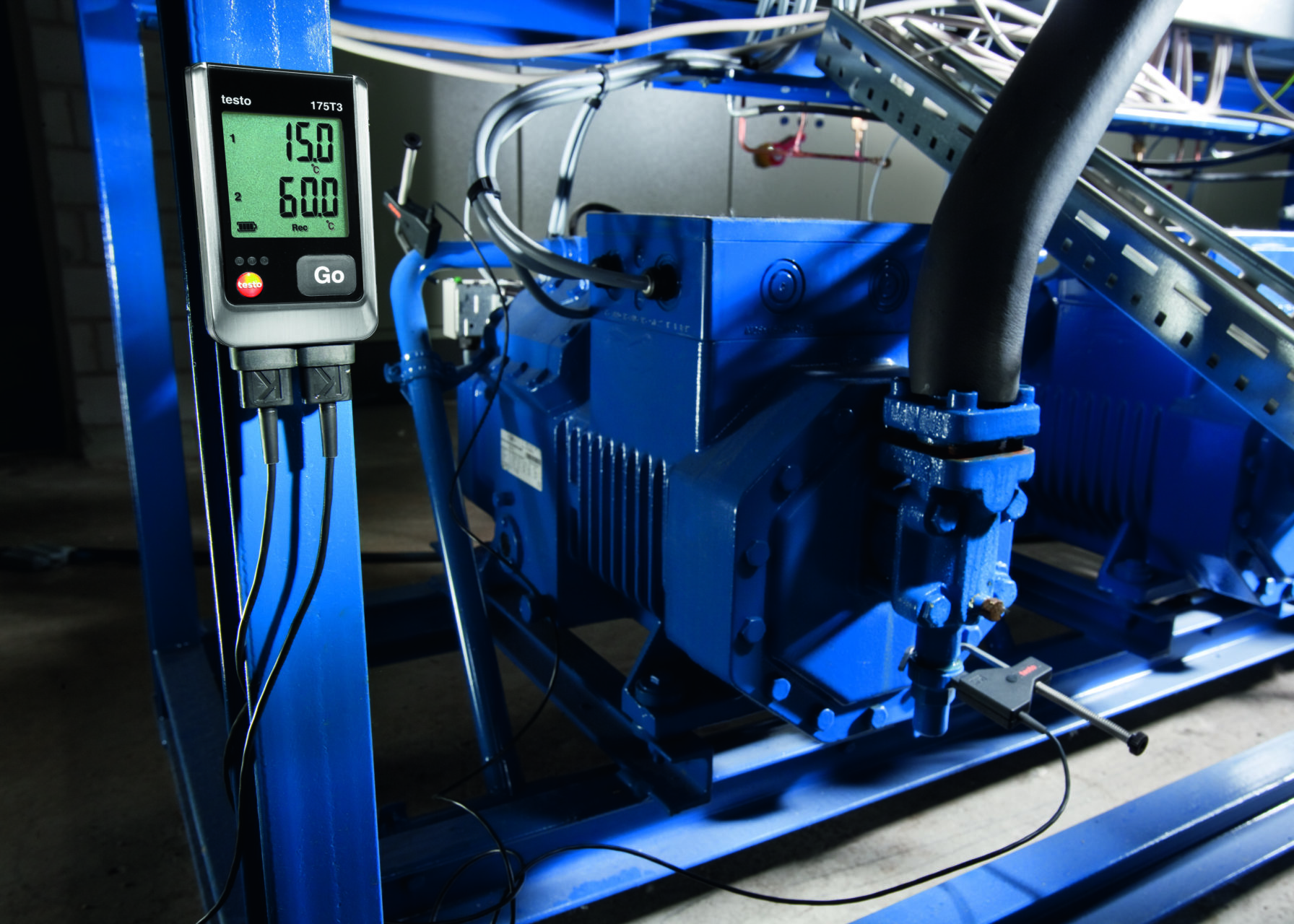

Temperature often needs to be monitored and recorded simultaneously at two sites. The testo 175 T3 is excellently suited to this job, thanks to two connections for external thermocouple probes (Type K and Type T). The wide measuring range makes the data logger universally applicable. The free ComSoft Basic software allows fast programming of the data logger and easy data analysis. In the autumn, the heating period begins, and with it the time for complaints by tenants that their appartments cannot be heated to the desired extent. With the testo 175 T3 and the versatile external thermocouple probes, you can, for example, perform targeted checks on the flow and return temperatures of individual radiators, in order to identify and remedy causes.

Technical data

  • Channels: 2 x external
  • Battery type: 3 x AlMn Typ AAA or Energizer
  • Battery life: 3 years (15 min. measuring cycle, +25 °C)
  • Operating temperature: -20 to +55 °C
  • Storage temperature: -20 to +55 °C
  • Dimensions: 89 x 53 x 27 mm
  • Weight: 130 g
  • Housing: ABS/PC
  • EC Directive: 2004/108/EG
  • Protection class: IP65
  • Measuring rate: 10 sec – 24 h
  • Memory: 1 mio. measurement values

Download data sheet »

Equipment / Items delivered

testo 175 T3, 2-channel temperature data logger with external sensor connections (TC Type T and Type K) incl. wall holder, lock, batteries and calibration protocol

matching thermocouples

Discount on large quantities on request

Additional information
Weight 0.25 kg
