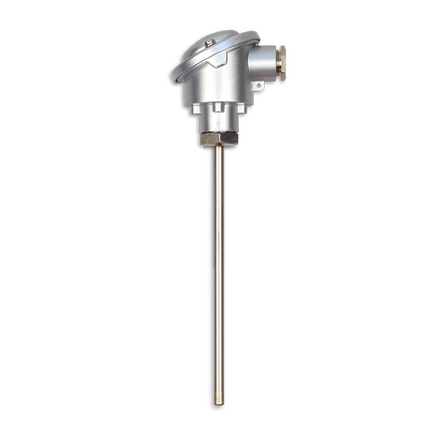

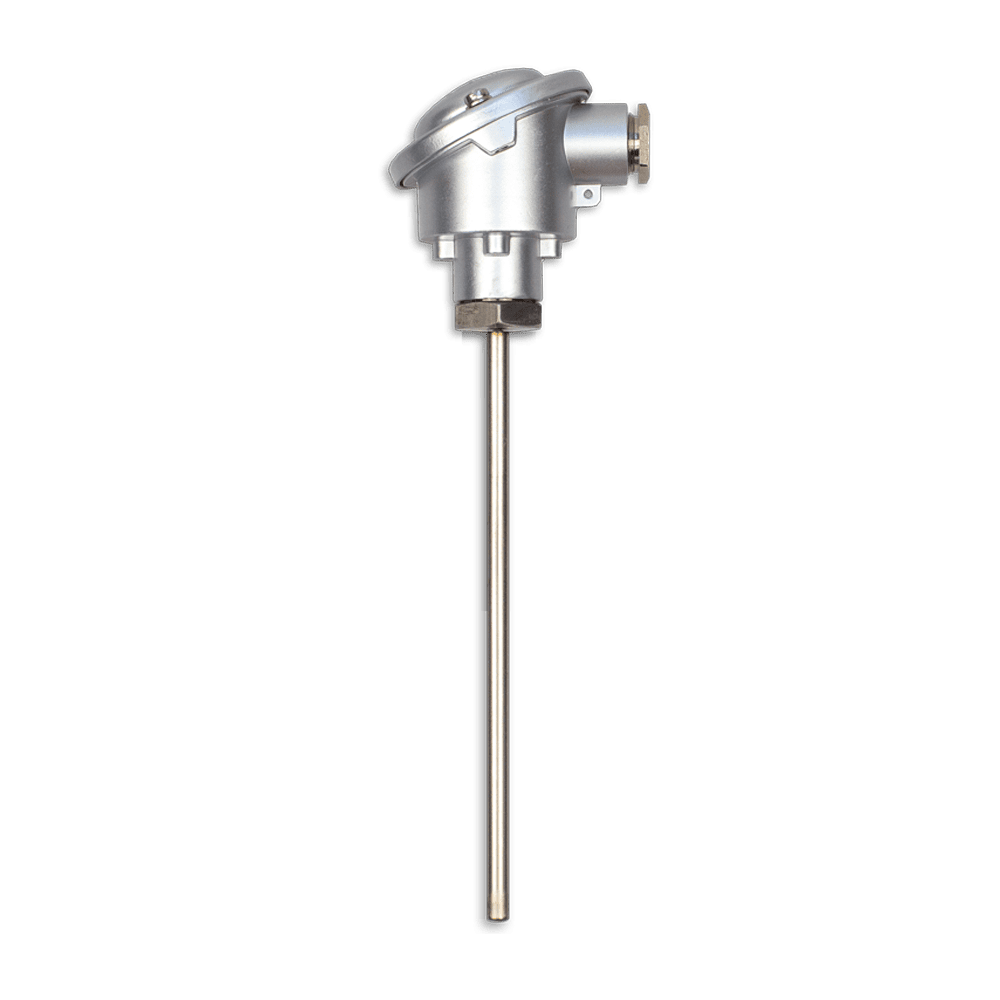

Plug-in thermocouple type K, NiCr-Ni, terminal head form B
- Temperature range: up to +1,150 °C, continuous, depending on selected sheathing diameter and measuring medium or atmosphere accuray
- accuracy cl. 1: ±1.5°C or 0.004 x |t|
Description
Our plug-in thermocouples for precise temperature measurements are the ideal choice for temperature measurements in gaseous and liquid media. Whether in heating, furnace or apparatus engineering – these sensors offer reliable results. Thanks to high-quality materials and a special manufacturing process, they can even be used at extreme temperatures of up to 1150°C. Rely on our proven technology for precise temperature detection.
There is a choice of element diameter, element length and the option of integrating a head transmitter with an output of 4 – 20 mA with or without galvanic isolation.
Technical data
- Sheathing thermocouple pairing: Type K, NiCr-Ni
- Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07
- Sheathing material: Inconel600 (2.4816)
- Measurement point: hot junction insulated
- Probe diameter: 3.0–6.0 mm
- Element length: 50–400 mm

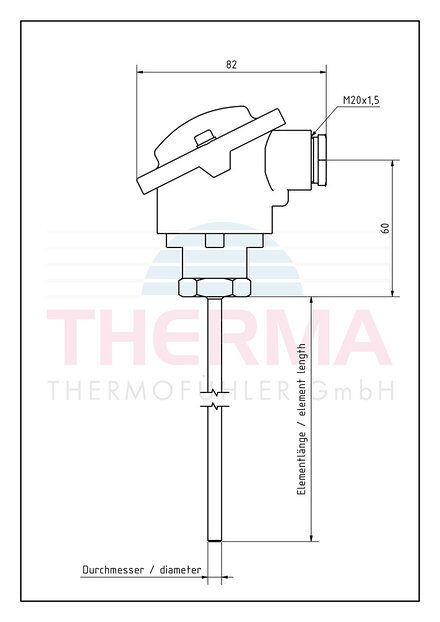

- Connection head: Form B according to DIN 43729
- Transmitter: with / without
- Configuration: please let us know the values for min. and max. in °C.
- Example measuring range :
- 0°C to +50°C
- 0°C = 4mA ; +50°C = 20mA
Limiting deviation
Class 1 as per DIN EN 60584-1: 2014-07
- -40 °C to +375 °C = ± 1.5 °C
- +375 °C to +1,000°C = ± 0.004 x |t|
Other designs or materials on request
Discount on large quantities on request
