Startseite » Shop » Transmitters » THERMA Direkt T
TEX/CUTEXTW-24F-JJ-IEC | 10 m 34,90 €
Back to products
Compression type fittings for sheathing thermocouples 13,10 €
Click to enlarge

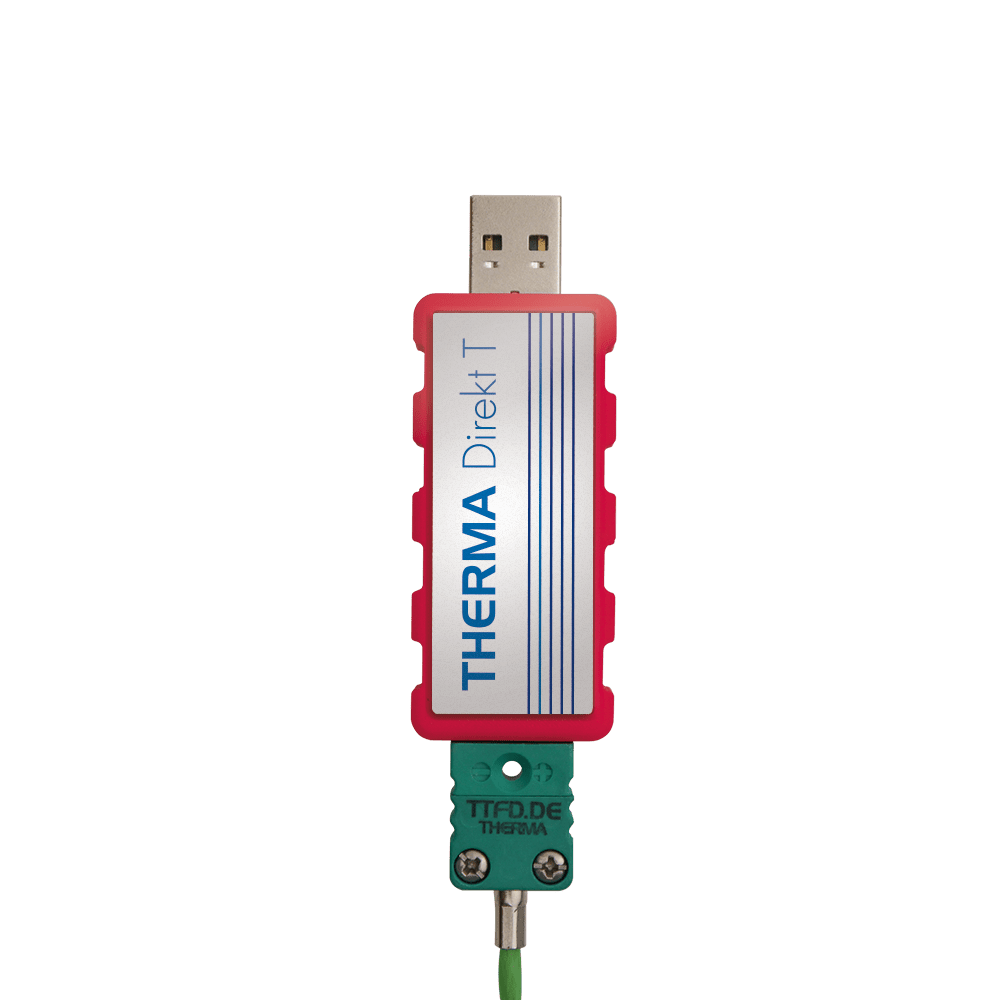

THERMA Direkt T

Übersicht:

  • USB-Stick mit Software zum direkten Auslesen und Weiterverarbeiten am PC
  • Steckverbindung – USB-Stick flexibel an Temperaturfühler anschließen
  • Verarbeitung der Messwerte, Weitergabe an die Software
  • Unterschiedliche Temperaturfühler und Thermoelemente möglich
  • Verschiedene Leitungstypen, -längen und Art der Anschlüsse wählbar

Title Range Discount
Rabattstaffel 1 3 + 6% 332,76 €
Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Water temperature sensor
    • Exhaust gas temperature sensors
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

USB-Temperaturwandler – inklusive kostenloser Auslese-Software – effizientes und flexibles Messen ohne zusätzlicher Messanlage – mobil und direkt vor Ort – für alle gängigen Thermoelemente.

Übersicht:

  • USB-Stick mit Software zum direkten Auslesen und Weiterverarbeiten am PC
  • Steckverbindung – USB-Stick flexibel an Temperaturfühler anschließen
  • Verarbeitung der Messwerte, Weitergabe an die Software
  • Unterschiedliche Temperaturfühler und Thermoelemente möglich
  • Verschiedene Leitungstypen, -längen und Art der Anschlüsse wählbar

Produktdatenblatt herunterladen »

Software und Bedienungsanleitung herunterladen »

Ihre Vorteile mit THERMA Direkt T:

  • Messbereich: von –270 bis +1.820 °C – abhängig vom Typ
  • Unterstützt Typ: B, E, J, K, N, R, S, T
  • inklusive leistungsstarker Software
  • inklusive kostenfreier Software-Updates
  • frei konfigurierbare Thermofühler (Thermoelemente in verschiedenen Typen, Durchmessern, Leitungs- und Elementlängen, Leitungstypen und -anschlüssen)
  • Alarm versenden über Netzwerk (WLAN), SMS, Voice-Mail, E-Mail, Anwendung (in Vorbereitung)
  • Messungen in Echtzeit an Excel-Tabelle übergeben
  • Kleinstbauweise
  • kalibrierter Sensor mit Vergleichsstellenkompensation
  • Messdatenerfassungs-, Überwachungs- und Protokollierungssoftware
  • integriertes USB 2.0 Interface, Elektronik komplett im USB-Stecker integriert
  • anschließbare Geräteanzahl nahezu unbegrenzt (nur durch das USB-System und die Anschlusszahl Ihres PCs bzw. USB-Hubs begrenzt)
  • keine externe Stromversorgung nötig. (Bei Anschluss vieler Sensoren gleichzeitig kann ein Power HUB mit eigener Stromversorgung erforderlich werden.)
  • optional auch für Druck- und Feuchte-Messungen verfügbar

Anwendungen:

  • Messung, Aufzeichnung und Überwachung der Temperatur
  • Laboranwendungen
  • Automobilindustrie, speziell mobile Messungen z.B. Testfahrten bzw. Fahrzeuge im Motorsport
  • Klima- und Lüftungstechnik
  • Lebensmittelindustrie
  • Gewächshäuser
  • Wetterstationen
  • Ständige Protokollierung aller Messwerte und Alarmereignisse

Technische Daten:

Temperaturmessung
Messbereich –270 °C bis +1.820 °C
Genauigkeit typisch ±1°C
Auflösung typisch 0,01 °C
Wiederholgenauigkeit typisch ±0,1 °C
Reaktionszeit typisch 250 ms
Unterstützt Typ T, E, J, K, N, R, S, B
Spannungsversorgung
Versorgungsspannung Versorgung über USB
Stromaufnahme < 20 mA
Ausgänge
Kommunikation USB 2.0 Anschluss
für PCs mit Windows Betriebssystem, Win 7, Win 8, Win 10.

Richtlinien und Normen:

Störaussendung
Prüfgrundlage Produktnorm
Elektrische Störfeldstärke EN 55022:1998+A1:2000+A2:2003
Störfestigkeit
Prüfgrundlage Produktnorm
Entladung stat. Elektrizität nach EN55024:1998+A1:2001, EN 61000-4-2
Elektromagnetische Felder nach EN55024:1998+A1:2001, EN 61000-4-3

Sicherheitshinweise:

Der Therma Direkt T darf nicht in Anwendungen eingesetzt werden, bei denen Personen gefährdet oder verletzt werden können. Er darf auch nicht als Not-Aus-Schalter an Anlagen und Maschinen oder in anderen sicherheitsrelevanten Bereichen verwendet werden!

Der USB-Stick THERMA Direkt T darf weder Temperaturen unter –20 °C noch über +70 °C ausgesetzt werden, da er sonst beschädigt werden kann!

Rabatt bei größere Mengen auf Anfrage.

Additional information
Weight 0,05 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 480 Category: Transmitters
