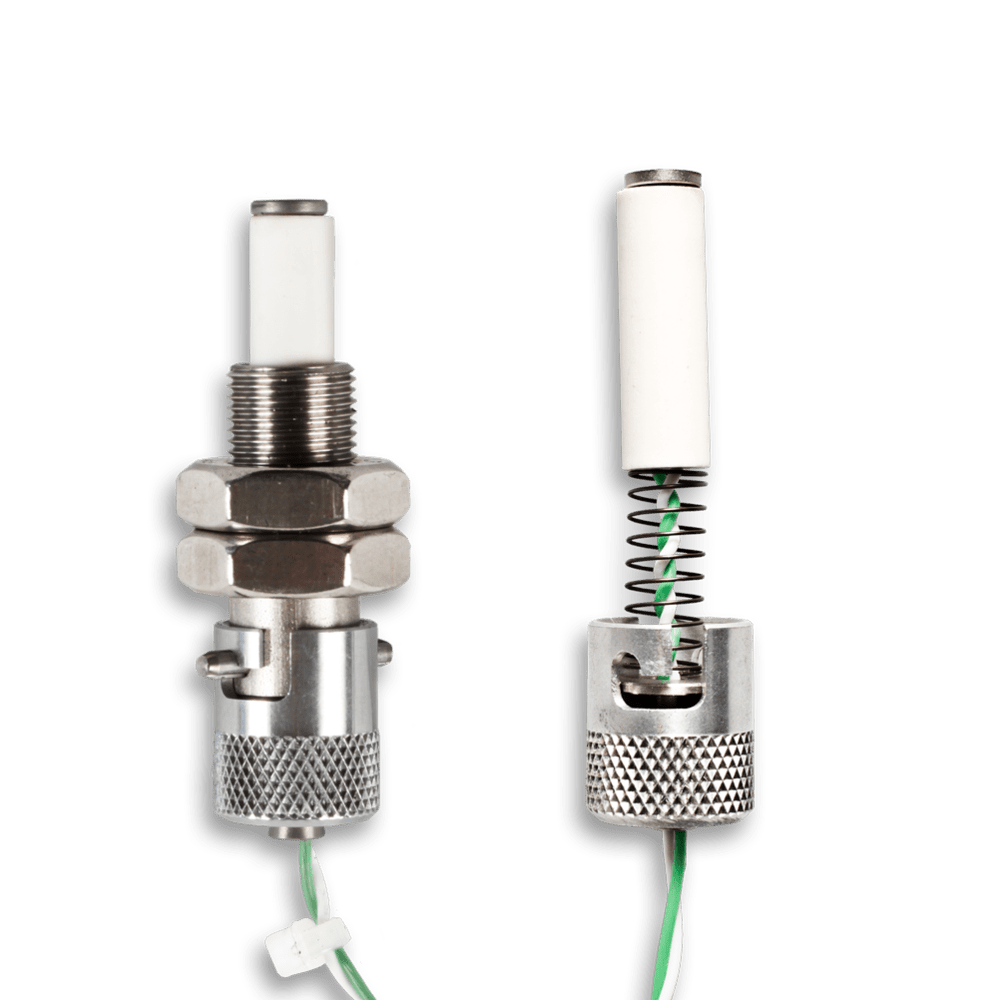

Spring loaded friction thermocouple, Type K
- Temperature range: -100 °C to +900 °C continuous
- Wire type: Teflon, single-conductor, open strand, Tmax: +230 °C continuous
Description
The surface temperature on moving parts, for instance brake disks, drums or raceways is determined with the spring-loaded friction thermocouple. By attaching the mounting adapter, the spring-loaded sensor is guided on the surface with uniform pressure by means of a bayonet cap. That perfectly compensates movements caused by centrifugal force and vibrations as well as the volume decrease caused by wear and it ensures a valid measurement.
Technical data
- Thermocouple pairing: Type K
- Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07
- Measurement point: VA-plate Ø 7.0 mm, 1 mm thick
- Measurement point: hot junction grounded
- Housing:Ceramic, Ø 8.0 x 25 mm
- Wire length: 500–5,000 mm
- Wire length:FEP-Teflon, strand, 2x 0,22 mm², open strand
- Temperature range of the wire:up to 205 °C in continuous duty, 230 °C peak
- Connection:With or without bayonet cap and mounting adapter M 12×1 with 2 counternuts
