Startseite » Shop » Thermocouples » Plug-in thermocouple » T-20209 Dipstick-Thermocouple | Teflon | Type K
Panel Miniature Insert Flanged (PMIFB) 4,62 €
Back to products
Teflon | Type K | 2x 0,08 mm AWG40 | Tmax 300 °C 10,60 €
Click to enlarge

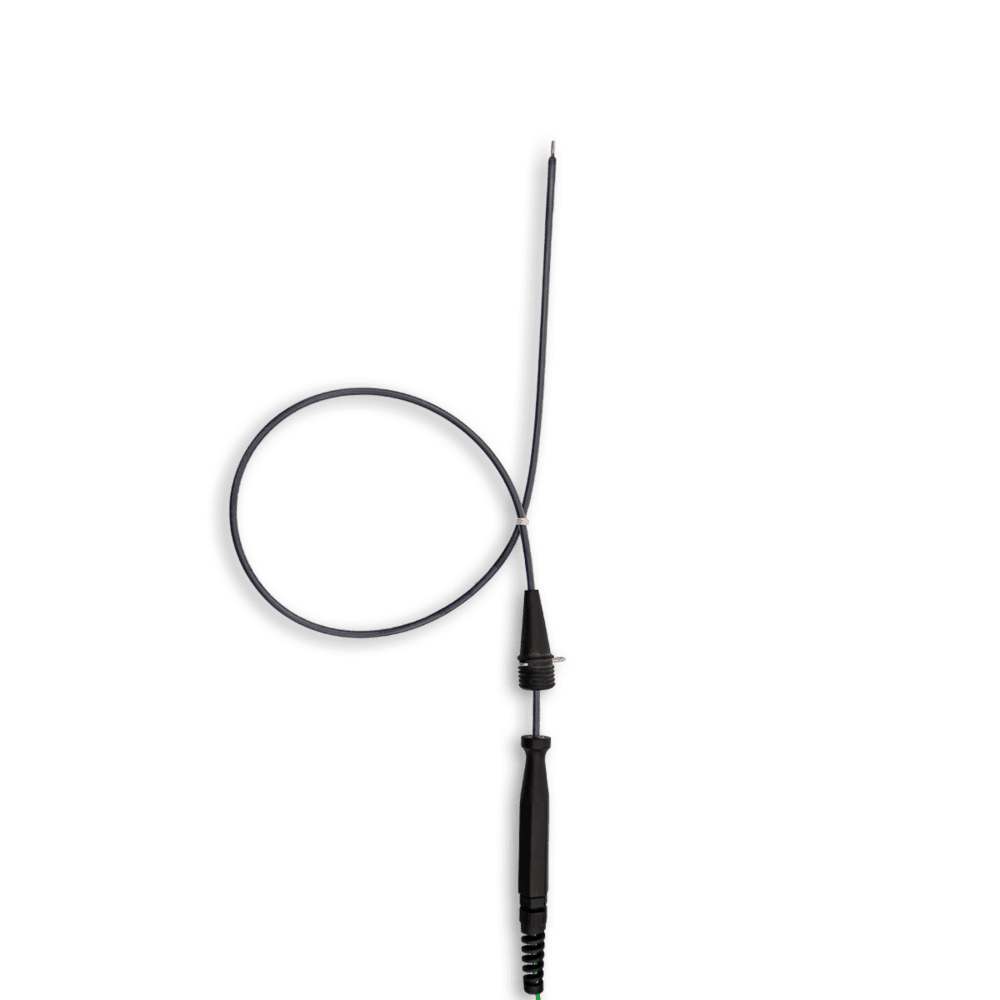

T-20209 Dipstick-Thermocouple | Teflon | Type K

  • Thermocouple pairing: Type K, Cl. 1
  • Temperature range: -40 °C to +260 °C continuous
  • Wire type: Teflon with CU shielding, Tmax: +200 °C continuous

Title Range Discount
Discount scale 1 6 - 10 5% 121,59 €
Discount scale 2 11 - 20 10% 115,19 €
Discount scale 3 21 + 15% 108,79 €
Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Water temperature sensor
    • Exhaust gas temperature sensors
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Description

This thermocouple can be used for measuring the oil temperatur at testing vehicles. It can be inserted in the standard dipstick hole. The stick is flexible and can reach a perfect position in the engine.

It has a handle for easy use, the length can be adjusted with the rubber cone.

Technical data

  • Thermocouple pairing: Type K
  • Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07
  • Probe housing:Stainless Steel
  • Measurement point:  insulated
  • Probe diameter: 2.0 mm to 4.8 mm
  • flexible length: 800 mm
  • Handle: PVC, black
  • Conductor: Teflon with CU shielding
  • Conductor: Strand, 2x 0.22 mm²
  • Wire length: 500–5,000 mm
  • Connection: Selection
  • Rubber-cone withe compression fitting



Discount on large quantities on request

Additional information
Weight 0,35 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 491 Categories: Thermocouples, Plug-in thermocouple

You may also like…

Select options

Connector plug + Coupling jack Miniature | Locking (CMLP-CMLJ)

14,20 €
Select options

Connector plug + Coupling jack Standard | Solid pins (CSP-CSJ)

10,96 €
Select options

THERMA Direkt T

354,00 €
Select options

Connector plug + Coupling jack Miniature (CMP-CMJ)

8,62 €
Select options

Connector plug + Coupling jack Miniature | High-temperature (CMPH-CMJH)

12,68 €
Select options

Data logger temperature | 2-channels | Type K, T

227,00 €
-1%
Add to cart

Digital Quick Response Thermometer for NiCr-Ni, Type K

73,45 € 72,99 €

Related products

Select options

Dipstick-thermocouple | teflon | Type K

41,45 €
Select options

Screw-in thermocouple | Silicone | Type J

29,54 €
Select options

Sheathing thermocouple | Fibreglass | Type N |

22,95 €
Select options

Thermocouple extension | Teflon | Type K

7,16 €
Select options

Adhesive foil | Kapton | 9.0 x 20 mm | Tmax +260 °C

7,60 €
Select options

Sheathing tube | Silicone | Type N |

18,85 €
Select options

Mounting adapter

14,44 €
Select options

Teflon | Type K | 2x 0,08 mm AWG40 | Tmax 300 °C

10,60 €
Select options

Sheathing thermocouple | Fibreglass | Type J

20,75 €
Select options

Sheathing tube | Fibreglass | Type N |

19,65 €
Select options

Sheated | without conductor | Type N |

16,00 €
Select options

Sheathing tube | Fibreglass | Type J

17,65 €

Is your product not included?

Do you need an offer in advance? Do you need an individual solution? No problem: just give us a call and send us an email. Phone: +49 (0) 2266 / 487330-30 or E-Mail: info@therma-shop.de.

Measure the temperature of oil with professional devices

Our thermocouples are not only used in industry and in laboratories, but also in professional racing. In high-performance engines, measuring the oil level temperature is particularly important to avoid overheating. We have many satisfied customers in professional racing and guarantee you accurate measurement results for the safe use of turbo engines. Measuring engine oil temperature is important to ensure driver safety. Measuring the oil also ensures that the high-performance engines are not overstressed and overheated. In the extreme conditions and high performance demands in professional racing, it is therefore important to be able to rely on an exact and durable thermocouple.

Measuring oil temperature in the automotive industry

Special temperature sensors are not only used in Formula 1. Measuring the oil in a car is also important in the automotive industry, for example when using and testing test vehicles. This ensures that the engine oil does not threaten to overheat. Measuring the temperature of oil without a thermometer or thermocouple only works if precise readings are not required. It is possible to measure oil temperature without a thermometer, for example with a thermal imaging camera, but it is more difficult to obtain reliable and constant results. This methodology is more useful when trying to manage overall temperatures in a high performance vehicle than when measuring the exact temperature of oil.

Powerful temperature sensors to measure engine oil

Efficient cooling and monitoring a safe temperature on all vehicle elements is an important task for racing cars and high-performance cars. Insertion thermometers or screw-in sensors are particularly suitable for determining the temperature of liquid substances such as engine oil or fuel. The type K thermocouple is a good choice for measuring oil, as it offers high precision over a wide temperature range. In addition, type K thermocouples are very robust and durable, which results in high reliability when monitoring the oil temperature. We recommend our oil dipstick with Teflon lines, as you benefit from optimal positioning in the engine compartment thanks to the flexible design. In addition, measuring the oil is made easier by the fact that the thermocouple can be easily inserted and removed again. The isolated measuring point delivers accurate results even under extreme conditions and can be used at up to 200° in continuous operation.

Flexible configurations for measuring oil with oil dipstick

With our powerful thermocouple for measuring oil temperature, we not only offer you a large measuring range and robust and durable processing. You can also choose the lead length and connector with flexible dimensions to allow for an optimal fit. We offer dimensions from 500 mm to 5000 mm for the cable length. You can also choose from many different options for the connection type for measuring oil. For example, free connection ends are possible, but on mini plugs with flat contacts, just like standard plugs. We would be happy to advise you on the most suitable connection option for you and are also experts in Lemo plugs and Lemo couplings. We offer you powerful and professional thermocouples at fair prices and of course also guarantee attractive volume discounts. Feel free to contact us for non-binding advice on our thermal sensors suitable for measuring oil.
