Type S

PlatinRhodium-Platin (Pt10Rh-Pt)

The colour of the outer sheath is orange, the positive wire is also orange and the negative wire is white. Due to the precious metals used, a compensating wire is always used as the connecting wire. For type S, compensation wires SCA (0 °C to +100 °C) and SCB (0 °C to +200 °C) are defined according to DIN EN 60584-3.

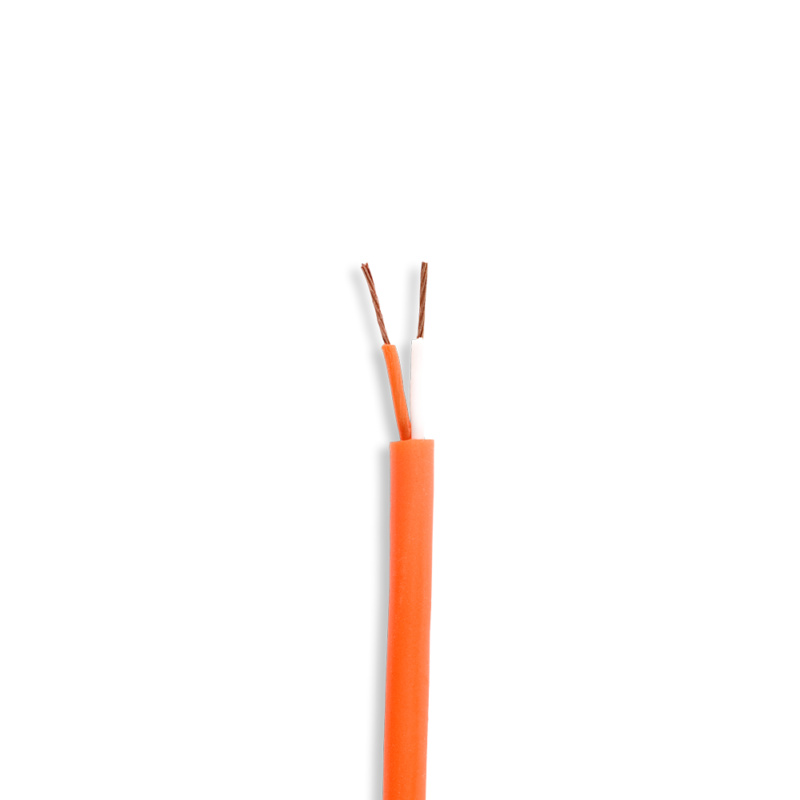

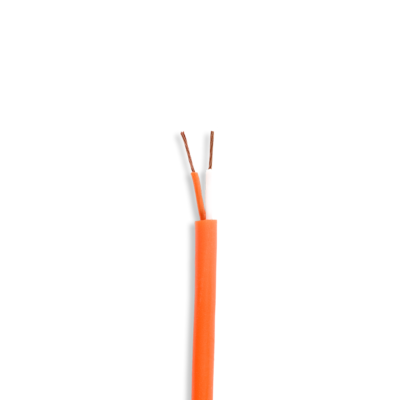

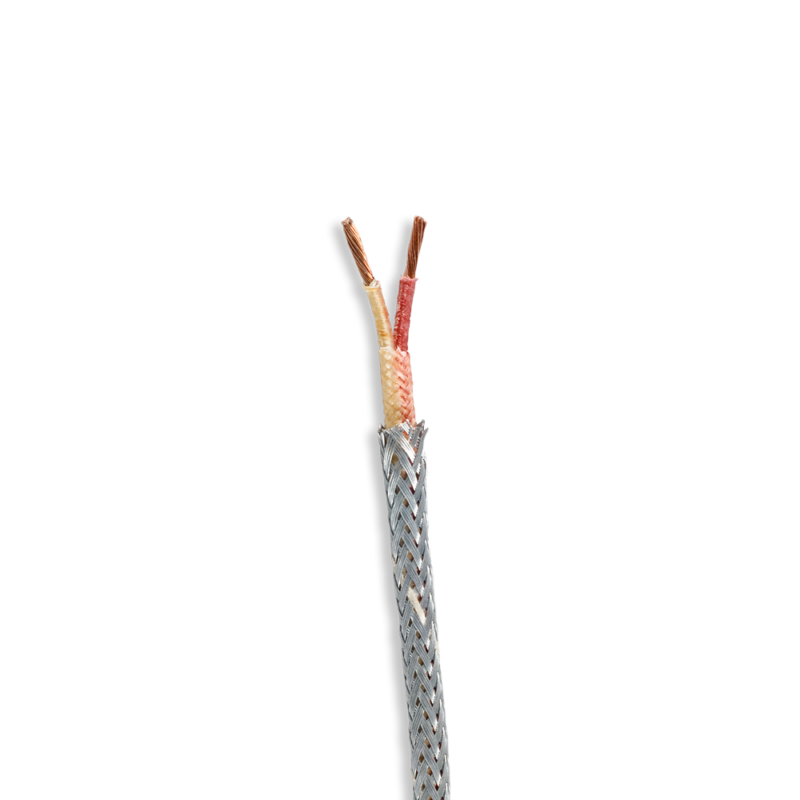

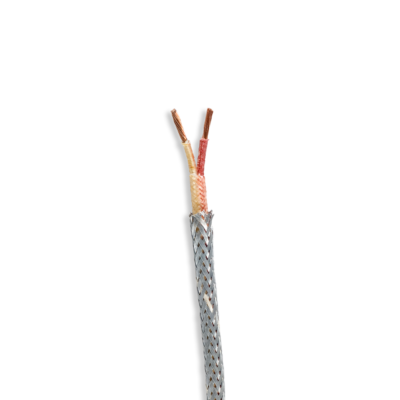

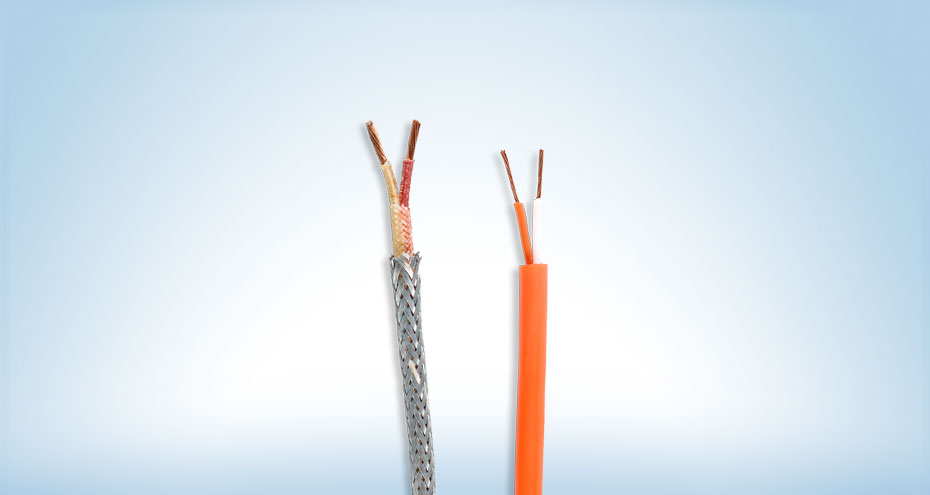

Images of type S wires
