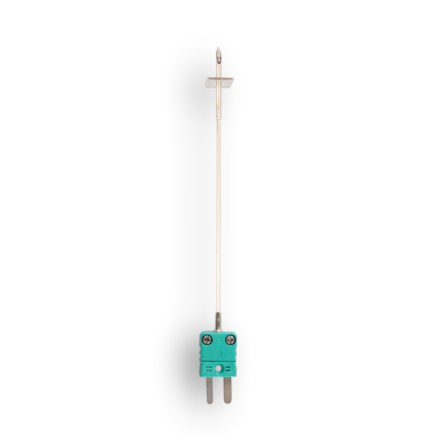

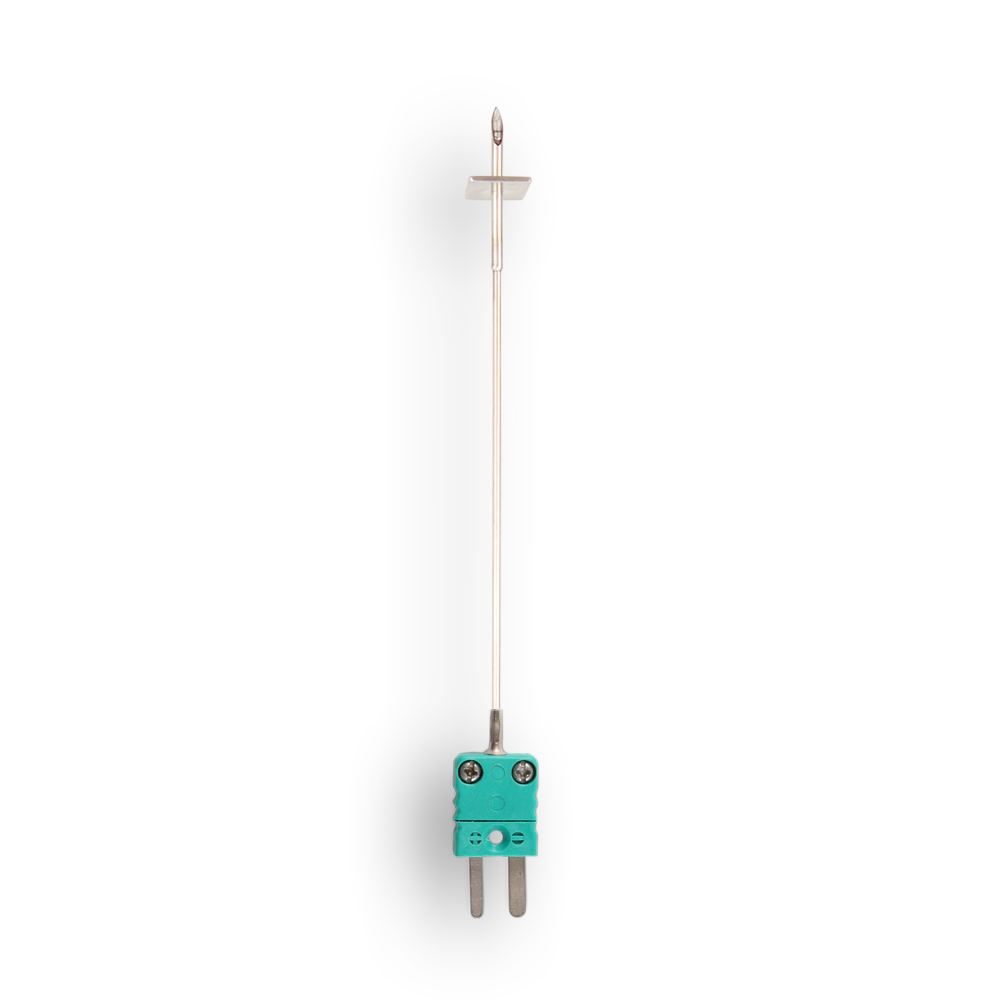

Precise an sophisticated – Dipstick-thermocouples made by Therma
Description

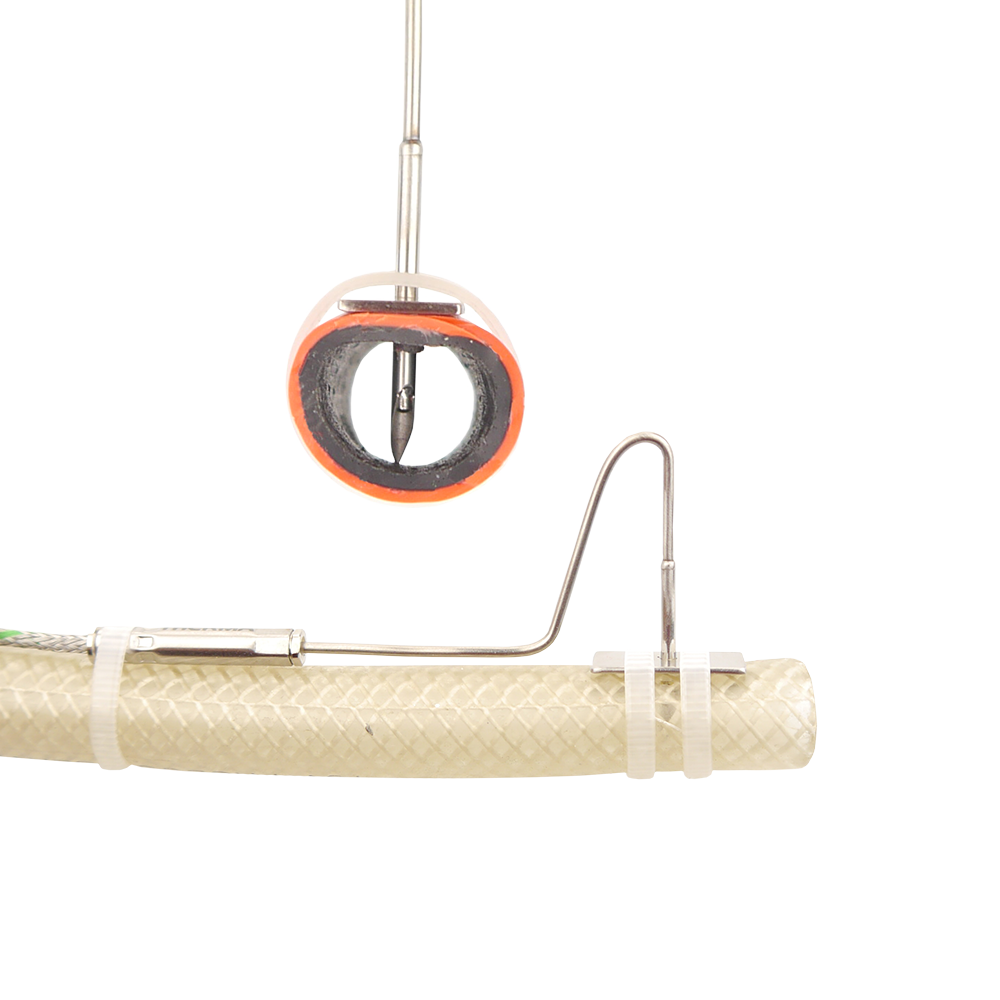

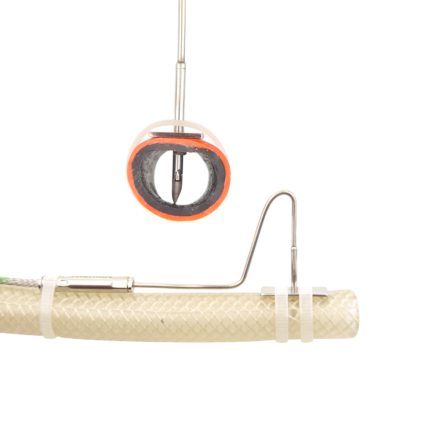

With the sharp needle the thermocouple easily can be stickinto tubes. It allows a fast and easy measurement of the medium inside of thetube. One possible application can be the cooling water tube of an engine. The stainlesssteel plate is made to be tighten by zipties.

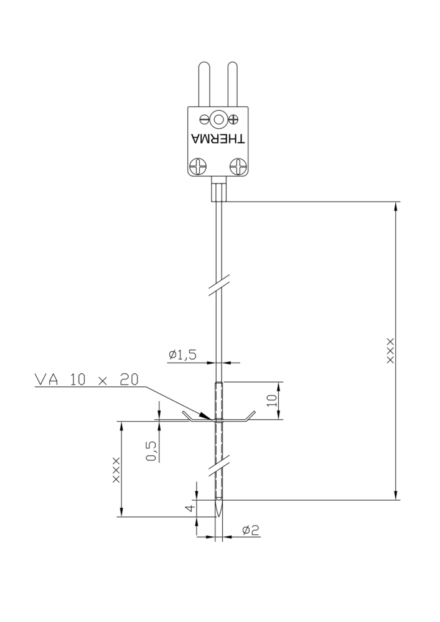

Technical data
- Sheathing thermocouple pairing: Type K
- Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07
- Sheathing material: Inconel600
- Measurement point: hot junction insulated
- Probe diameter: 2.0 mm
- Element length: 100–1,000 mm
- Retaining plate: stainless steel, 10 x 20mm
- Injection depth: 7-30mm
- Connection: Selection
- High-temp. zipties (+195°C) : optional
Discount on large quantities on request
