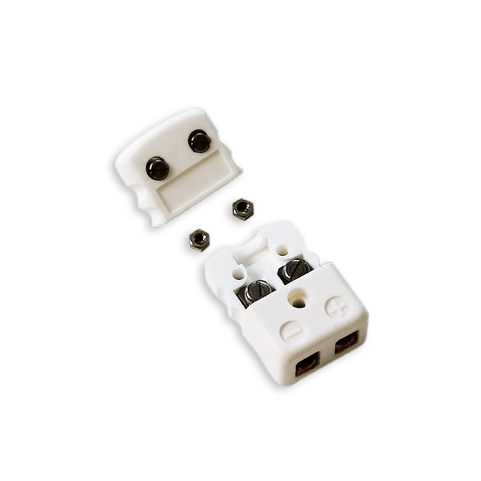

Coupling jack Standard | Ceramic (CSJC)

Use:
Connector for thermocouple and RTD circuits. The solid connector pins guarantee reliable connection under even the most difficult conditions.

Mechanical design:

• Ceramic body with original thermocouple material springloaded inserts
• Polarized pins ensure proper connection.
• Oversize terminal screw head for easy wiring
• One body design.
• High purity alumina body material.

Conductor diameter:

• Accepts wires up to 1,6 mm.
• Max. cable diameter 8.0 mm.

Temperature rating:

• Max. +650 °C.

Available types:

• online available: Type K, J, E, N, T, U, R/S, B
• on request:
  • Type C
  • gold plated, hard nickel plated contacts

Resistance themometer:

• for RTD use type U (Cu/Cu).

Colour designations:

• Body color white with color dot

Material-Code:

Discount on large quantities on request
