Use:

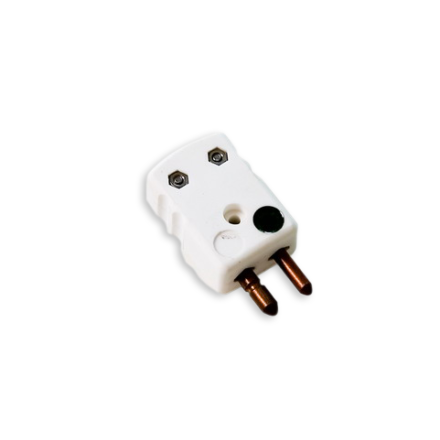

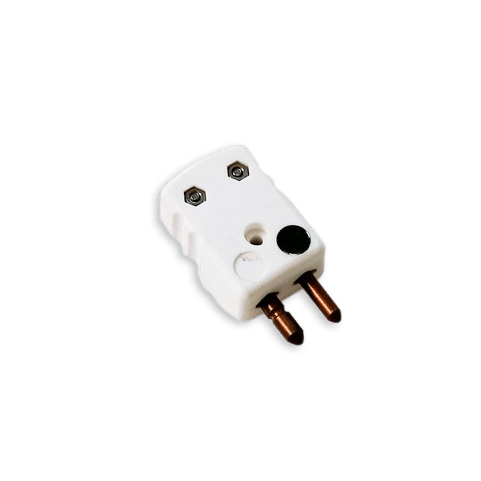

Connector for thermocouple and RTD circuits. The solid connector pins guarantee reliable connection under even the most difficult conditions.

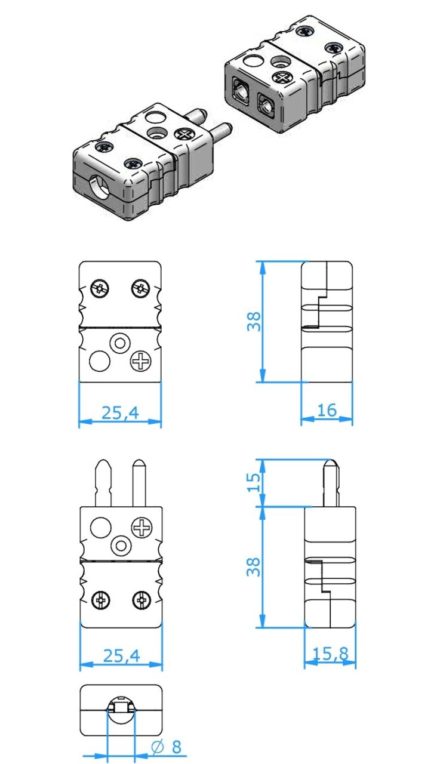

Mechanical design:
- Ceramic body with original thermocouple material pins
- Polarized pins ensure proper connection.
- Oversize terminal screw head for easy wiring
- One body design.
- High purity alumina body material.
Conductor diameter:
- Accepts wires up to 1,6 mm.
- Max. cable diameter 8.0 mm.
Temperature rating:
- Max. +650 °C.
Available types:
- online available: Type K, J, E, N, T, U, R/S, B
- on request:
- Type C
- gold plated, hard nickel plated pins
- hollow pins
Resistance themometer:
- for RTD use type U (Cu/Cu).
Colour designations:
- Body color white with color dot
Material-Code:
Discount on large quantities on request
