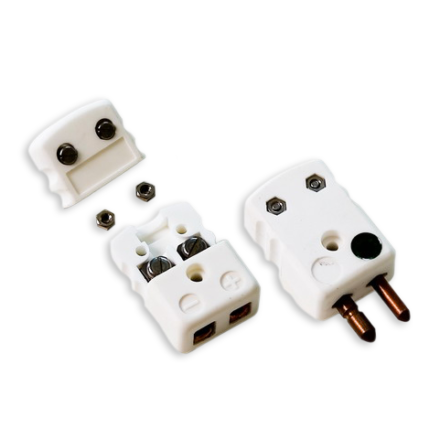

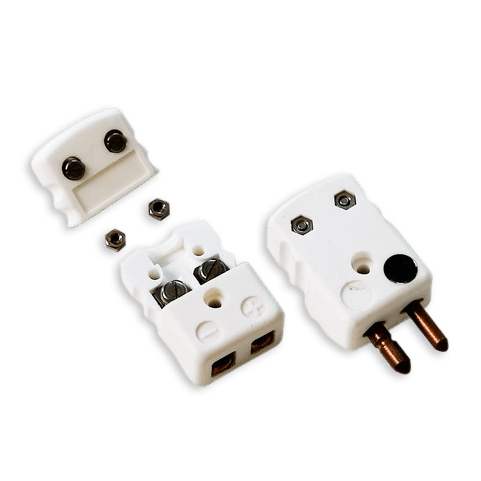

Connector for thermocouple and RTD circuits. The solid connector pins guarantee reliable connection under even the most difficult conditions.
- Ceramic body with original thermocouple material pins and springloaded inserts
- Polarized pins ensure proper connection.
- Oversize terminal screw head for easy wiring
- One body design.
- High purity alumina body material.
- Accepts wires up to 1,6 mm.
- Max. cable diameter 8.0 mm.
- Max. +650 °C.
- online available: Type K, J, E, N, T, U, R/S, B
- on request:
- Type C
- gold plated, hard nickel plated pins
- hollow pins
- for RTD use type U (Cu/Cu).
- Body color white with color dot
Discount on large quantities on request
