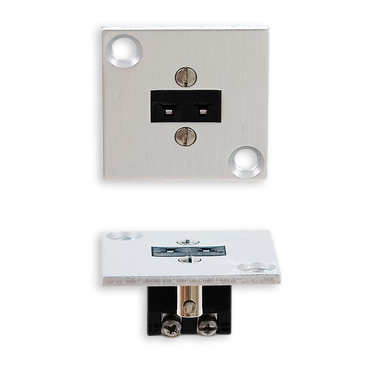

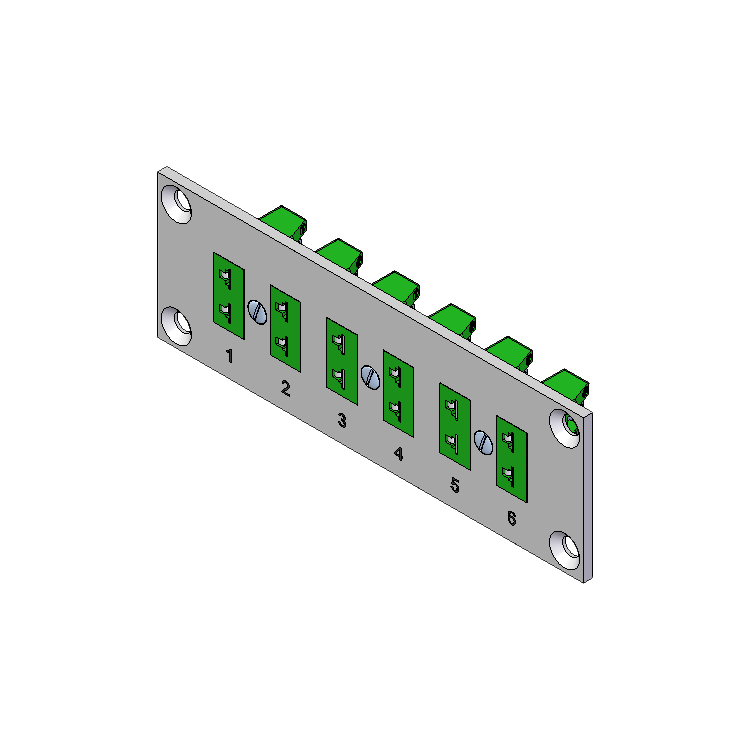

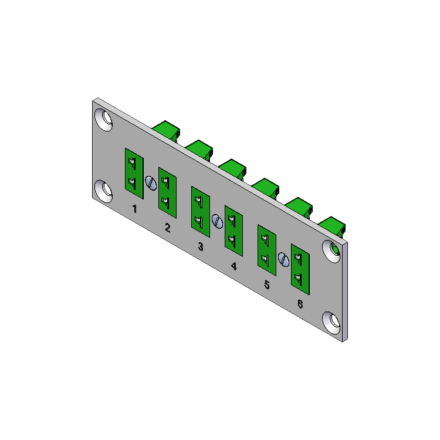

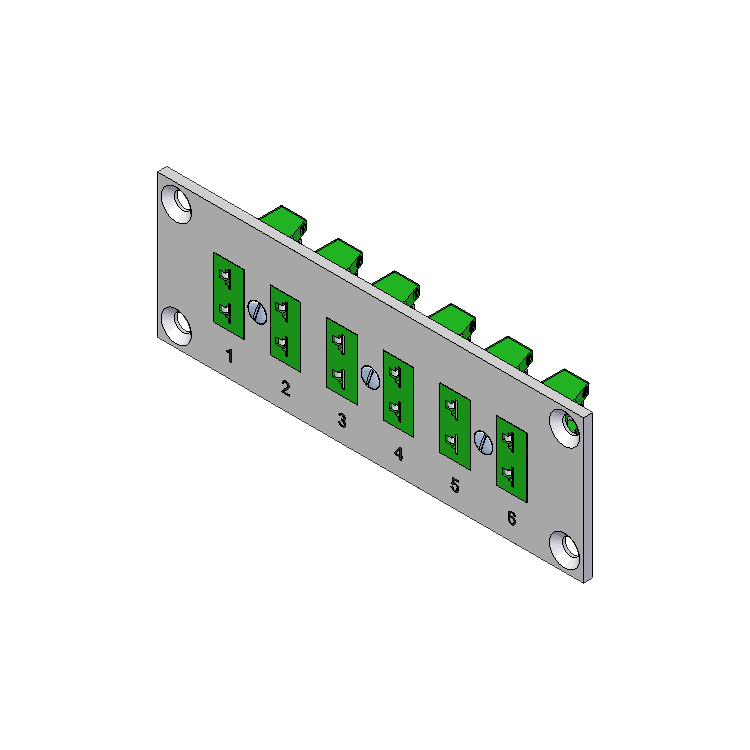

Panel Assembly Miniature Horizontal (PAM)

up to 24 circuits possible
Temperature load max. +220 °C
Contacts of original thermocouple material
All international colour designations are available

Title	Range	Discount
Rabattstaffel 1	3 - 9	3% 16,39 €
Rabattstaffel 2	10 - 24	5% 16,06 €
Rabattstaffel 3	25 +	10% 15,21 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

Use:
Connector panels for thermocouple and resistance thermometer measurement circuits for installation in control rooms, operating panels, laboratory areas, switch panels, push-in housings, etc.

Mechanical design:

Aluminium front plate, anodised, protected against corrosion.
Measurement circuit numbering, abrasion- and wipe-proof.
Attachments of stainless steel and nickel-plated brass.
The bevelled connection levels enable easy connection and disconnection of the conductors in the installed condition.
Individual built-in couplings can be replaced by loosening only a few screws.
Flat, flush front surface enables easy cleaning.
Standard panels with 1, 2, 3, 4, 6, 8, 12, 18 and 24 built-in jacks.

Conductor diameter:

Reliable connection up to 0.6 mm diameter.

Temperature load:

Max +220° C.

Available types:

online available: Type K, J, E, N, T, U, R/S, B
on request: Type C

Dimension:

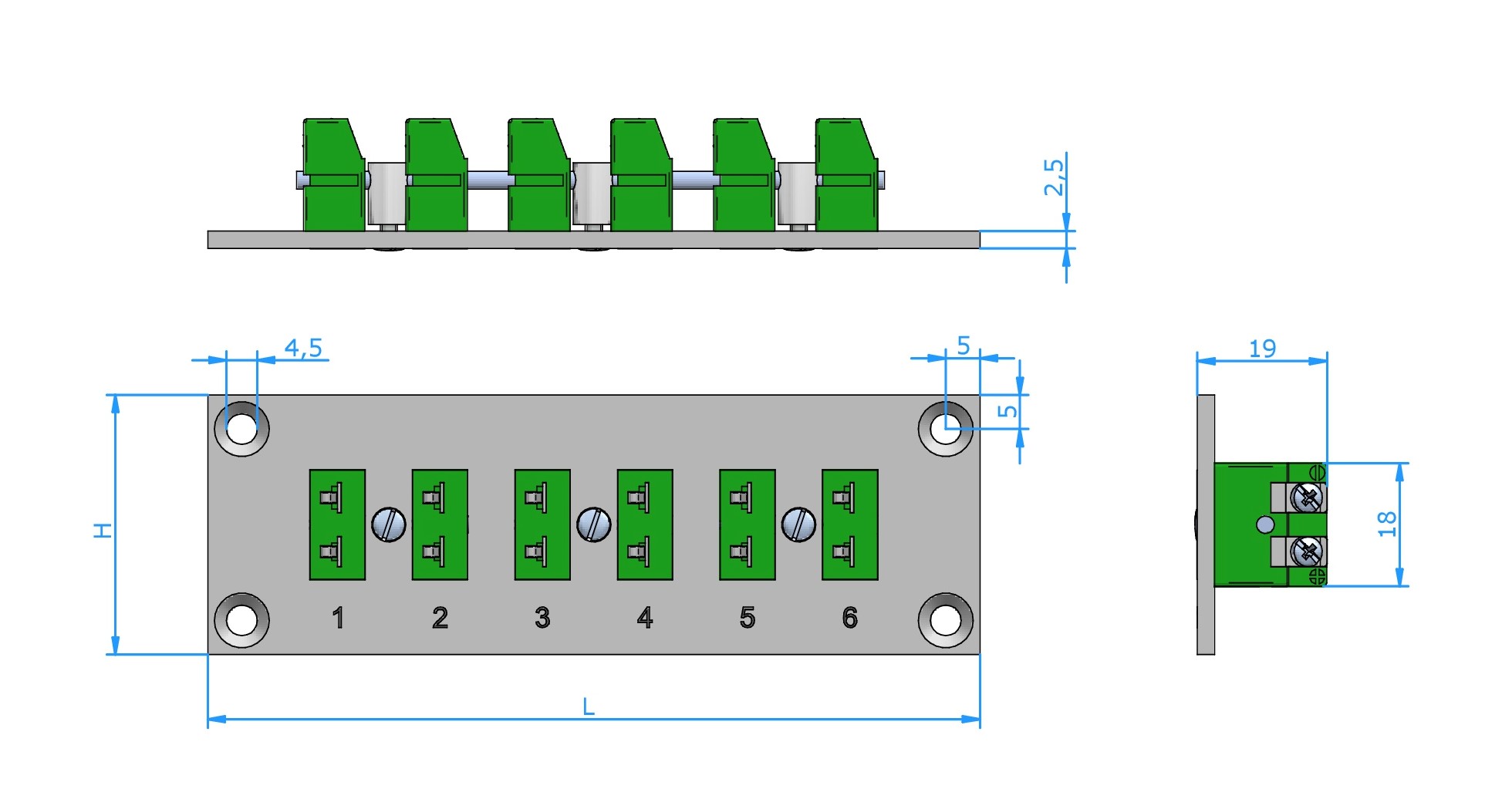

Circuits	Rows	Panel dimension (L x H in mm)	Dimension panel cut-out (in mm)
1	1	38 x 38	23 Ø
2	1	53 x 38	30 x 22
3	1	76 x 38	53 x 22
4	1	83 x 38	60 x 22
6	1	113 x 38	90 x 22
8	1	143 x 38	120 x 22
10	1	173 x 38	150 x 22
12	1	203 x 38	180 x 22
18	1	293 x 38	270 x 22
18	2	158 x 76	135 x 60
24	2	203 x 76	180 x 60

Material-Code:

Additional information

Weight	0,1 kg

Individual product inquiry

Do you need a similar product or have a special product request?

We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 54 Categories: Thermo connectors, Miniature connectors, Panel Miniature
