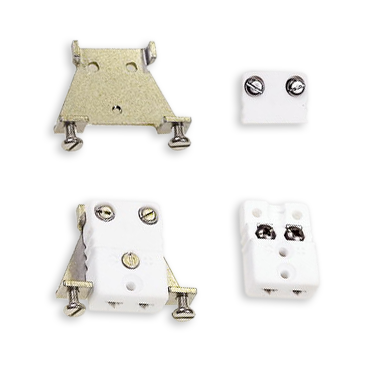

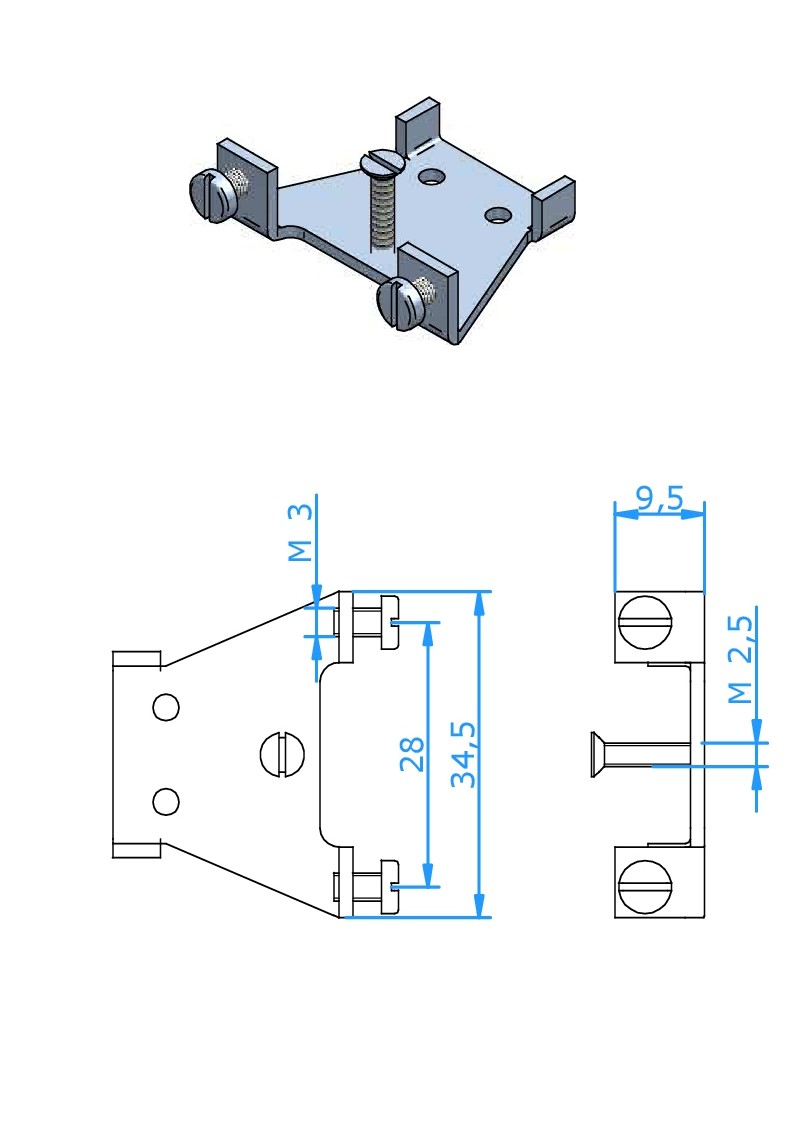

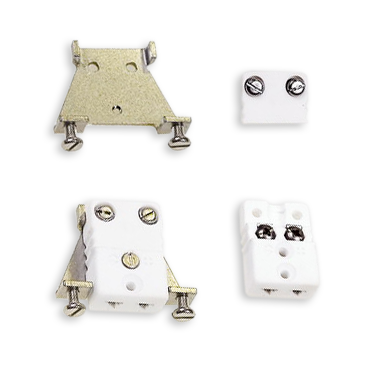

Miniature Connector Panel Bracket

Mounting of Miniatur.hightemperature- or ceramic-coupling jack

Description

Use:
Installation clamp for ceramic jack, high-temperature Jack for panel installation. Panel thickness max. 2,5mm.

Mechanical design:

  • All parts, including the screws, are made of stainless steel.

Order no.:

  • A-20.210 Clamp for ceramic jack.
  • A-20.307 Clamp for high-temperature jack.

Discount on large quantities on request

Additional information
Weight 0.1 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 53 Categories: , ,

You may also like…

Select options
Close

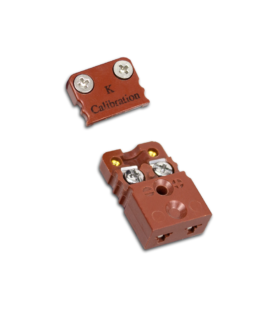

Coupling jack Miniature | High-temperature (CMJH)

6,34 €
Select options
Close

Coupling jack Miniature | Ceramic (CMJC)

9,40 €
Select options
Close

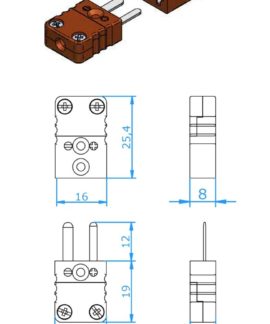

Connector plug + Coupling jack Miniature | High-temperature (CMPH-CMJH)

12,68 €
Select options
Close

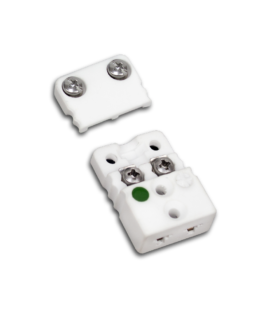

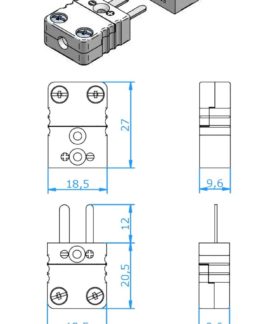

Connector plug + Coupling jack Miniature | Ceramic (CMPC-CMJC)
