Startseite » Shop » Thermo connectors » Standard connectors » Connector Standard » Connector plug + Coupling jack Standard | Jab-in (CSPQ-CSJQ)

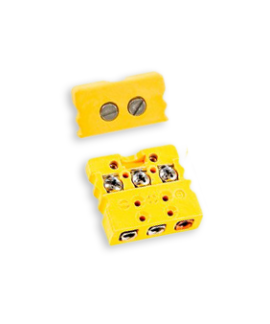

Coupling jack Standard | Three-pin (CSJT) 10,02 €
Back to products
Connector plug + Coupling jack Standard | Solid pins (CSP-CSJ) 10,96 €
Click to enlarge

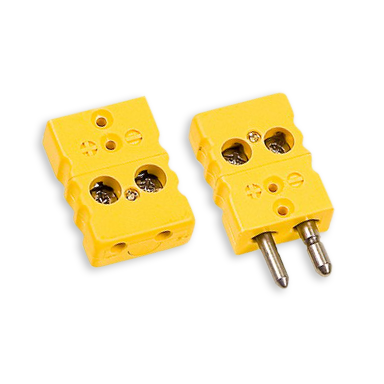

Connector plug + Coupling jack Standard | Jab-in (CSPQ-CSJQ)

  • jab-in cover allow easy connection
  • contacts of original thermocouple material
  • All international colour designations are available

Title Range Discount
Rabattstaffel 1 26 - 50 10% 11,07 €
Rabattstaffel 2 51 - 100 20% 9,84 €
Rabattstaffel 3 101 + 25% 9,23 €
Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Water temperature sensor
    • Exhaust gas temperature sensors
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Recently Viewed Products

  • Coupling jack Standard | Duplex (CSJD) 12,75 €
  • Connector plug Standard | Duplex (CSPD) 13,10 €
  • Panel Standard Insert Three-pin High-temperature (PSITH) 13,52 €
Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Use:
Connector for thermocouple and RTD circuits. The solid connector pins guarantee reliable connection under even the most difficult conditions. Jab-in cover allow easy connection without need cover removal.

Mechanical design:

  • Glass filled high quality thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins.
  • Central cover screw design for quick wiring.
  • Molded barriers prevent short circuit.
  • Captive cover screw for easy assembly.
  • Easy wire connection through sandwich construction
  • Stainless Steel screws with Phillips head

Conductor diameter:

  • Accepts wires up to 1,6 mm.

Temperature rating:

  • Max. +180 °C.

Available types:

  • online available: Type K, J, E, N, T, U, R/S, B
  • on request:
    • Type C
    • gold plated, hard nickel plated pins
    • hollow pins

Resistance themometer:

  • for RTD use type U (Cu/Cu).



Colour designations:

  • All international colour designations are available:
    DIN IEC, DIN 43710, ANSI, NFE, BS, JIS, etc.

Material-Code:

Discount on large quantities on request

Additional information
Weight 0,06 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 417 Categories: Thermo connectors, Standard connectors, Connector Standard
