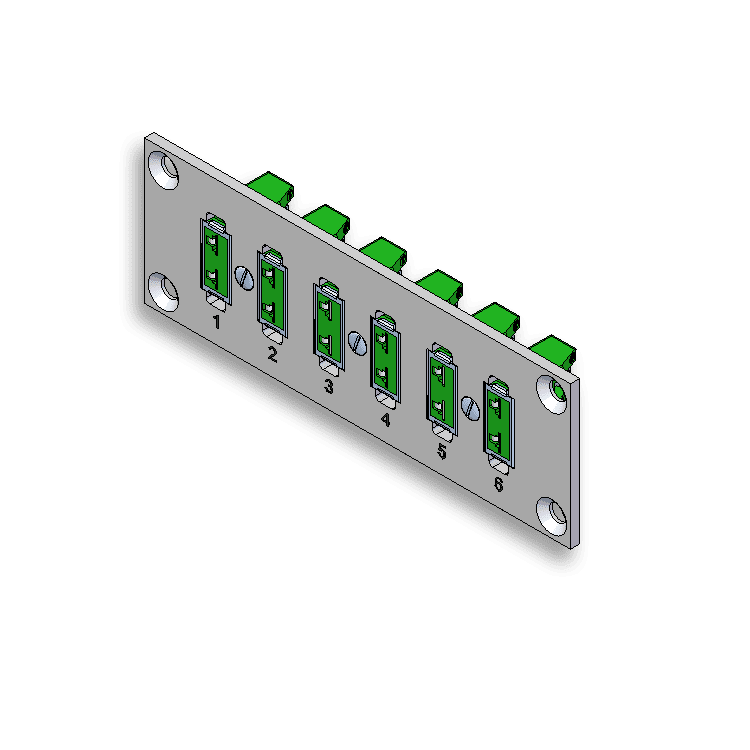

Panel Assembly Miniature Horizontal, self-locking (PAML)

  • Advantage: Self locking connector pair
  • up to 24 circuits possible
  • Temperature load max. +220 °C
  • Contacts of original thermocouple material pins

Title Range Discount
Rabattstaffel 1 6 - 10 5% 24,82 €
Rabattstaffel 2 11 - 20 10% 23,52 €
Rabattstaffel 3 21 + 15% 22,21 €
close
Categories
  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Use:
Connector panels for thermocouple and resistance thermometer measurement circuits for installation in control rooms, operating panels, laboratory areas, switch panels, push-in housings, etc.

Advantage:
Self-locking connector. The locking device prevents accidental faulty connections and unintentional disconnection during the measurement process. This Panel is mounted with Panel Miniature Locking Insert (PMLI). Matching Plug CMLP.

Mechanical design:

  • Aluminium front plate, anodised, protected against corrosion.
  • Measurement circuit numbering, abrasion- and wipe-proof.
  • Attachments of stainless steel and nickel-plated brass.
  • The bevelled connection levels enable easy connection and disconnection of the conductors in the installed condition.
  • Individual built-in couplings can be replaced by loosening only a few screws.
  • Flat, flush front surface enables easy cleaning.
  • Standard panels with 1, 2, 3, 4, 5, 6, 8, 12, 18 and 24 built-in jacks.

Conductor diameter:

  • Reliable connection up to 0.6 mm diameter.

Temperature load:

  • Max +220° C.


Available types:

  • online available: Type K, J, E, N, T, U, R/S, B
  • on request: Type C

Dimension:

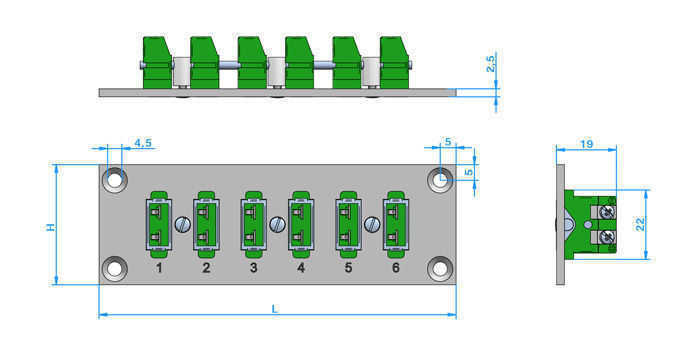

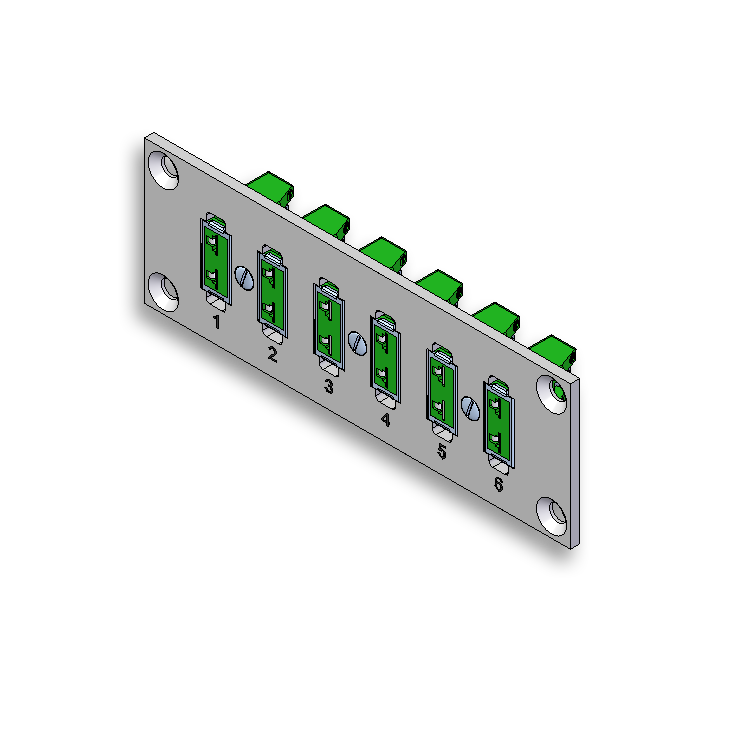

Circuits Rows Panel
dimension
(L x H in mm)
Dimension
panel cut-out
(in mm)
1 1 38 x 38 23 Ø
2 1 53 x 38 30 x 22
3 1 76 x 38 53 x 22
4 1 83 x 38 60 x 22
5 1 98 x 38 75 x 22
6 1 113 x 38 90 x 22
8 1 143 x 38 120 x 22
12 1 203 x 38 180 x 22
18 1 293 x 38 270 x 22
24 2 203 x 76 180 x 60

Material-Code:

Additional information
Weight 0.1 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 55 Categories: Miniature connectors, Panel Miniature, Thermo connectors

You may also like…

Select options
Close

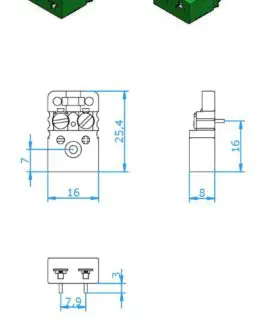

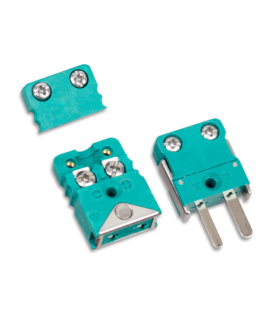

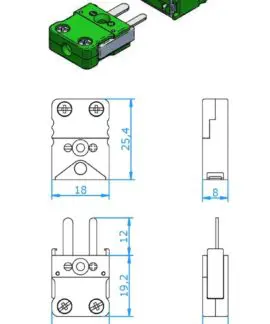

Connector plug + Coupling jack Miniature | Locking (CMLP-CMLJ)

14,20 €
Pmli
Select options
Close

Panel Miniature Locking Insert (PMLI)

7,20 €
-1%
Add to cart
Close

Digital Quick Response Thermometer for NiCr-Ni, Type K

73,45 € 72,99 €
Select options
Close

Thermocouple extension | Teflon | Type K

12,50 €
Select options
Close

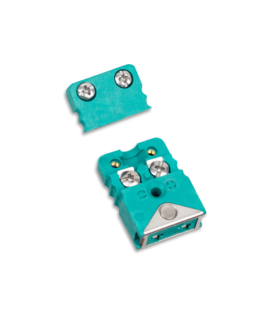

Coupling jack Miniature | Locking (CMLJ)

7,10 €

Related products

Select options
Close

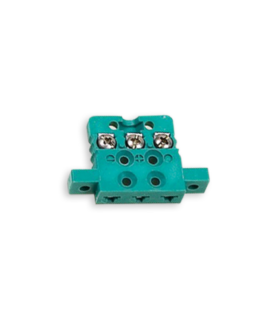

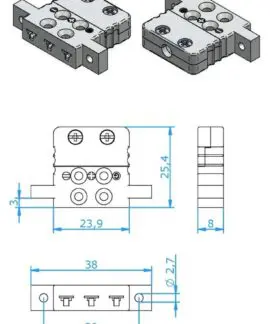

Panel Miniature Insert Three-pin Lugged (PMITL)
