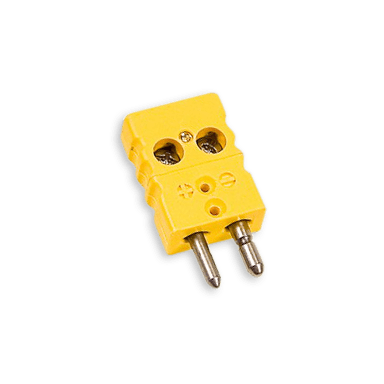

Connector plug Standard | Jab-in (CSPQ)

  • Jab-in cover allow easy connection
  • Contacts of original thermocouple material pins
  • All international colour designations are available
» individual request
Range Discount
10 - 24 5%
25 - 49 10%
50 - 99 15%
100 + 20%
Sales only to companies, traders and institutions.
We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.
Description

Use:
Connector for thermocouple and RTD circuits. Jab-in cover allow easy connection without need for cover removal. Solid pin design ensures good contact even in demanding applications.

Mechanical design:

  • Glass filled thermoplastic body
  • Contacts of original thermocouple materials.
  • Reverse polarity protection by different pin thicknesses.
  • Central cover attachment for fast installation.
  • Moulded barriers prevent short-circuits.
  • Screw terminals enable quick connection.

Conductor diameter:

  • Accepts wires up to 1,6 mm.

Temperature rating

  • Max. +180 °C.

Available types:

  • online available: Type K, J, E, N, T, U, R/S, B
  • on request:
    • Type C
    • gold plated, hard nickel plated pins
    • hollow pins

Resistance themometer:

  • for RTD use type U (Cu/Cu).



Colour designations:

  • All international colour designations are available:
    DIN IEC, DIN 43710, ANSI, NFE, BS, JIS, etc.

Material-Code:

Discount on large quantities on request

Additional information
Weight 0,03 kg
