Startseite » Shop » Thermo connectors » Miniature connectors » Panel Miniature Insert » Panel Miniature Insert (PMI)
Previous product
Connector plug Miniature | Three-pin (CMPT) 6,12 €
Back to products
Next product
Sheathing tube | Teflon | Type N | 19,35 €
Click to enlarge

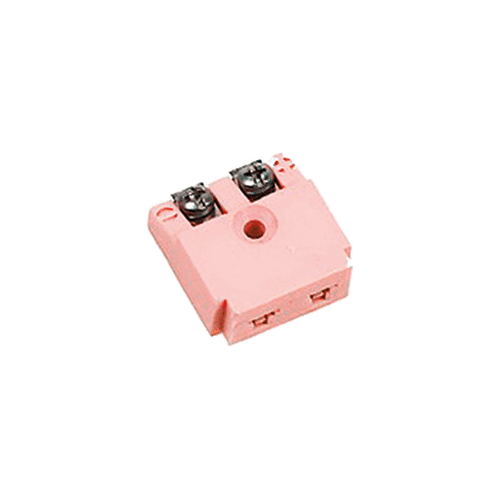

Panel Miniature Insert (PMI)

  • Temperature load max. +220 °C
  • Contacts of original thermocouple material
  • All international colour designations are available

Title Range Discount
Rabattstaffel 1 26 - 50 10% 3,97 €
Rabattstaffel 2 51 - 100 20% 3,53 €
Rabattstaffel 3 101 + 25% 3,31 €
close
Categories
  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Use:
Panel insert for thermocouple and RTD circuits.

Mechanical design:

  • Glass filled thermoplastic body with original thermocouple springloaded inserts.
  • Contacts of original thermocouple materials.
  • Polarized pins ensure proper connection.
  • Easy wire connection through sandwich construction.
  • Molded barriers prevent short circuit.
  • Rugged one body design.
  • Polarity indication on body.

Conductor diameter:

  • Accepts wires up to 0,6 mm

Temperature rating

  • Max. +220 °C.

Available types:

  • online available: Type K, J, E, N, T, U, R/S, B
  • on request: Type C

Resistance themometer:

  • for RTD use type U (Cu/Cu).



Colour designations:

  • All international colour designations are available:
    DIN IEC, DIN 43710, ANSI, NFE, BS, JIS, etc.

Material-Code:

Discount on large quantities on request

Additional information
Weight 0.01 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 46 Categories: Miniature connectors, Panel Miniature Insert, Thermo connectors
