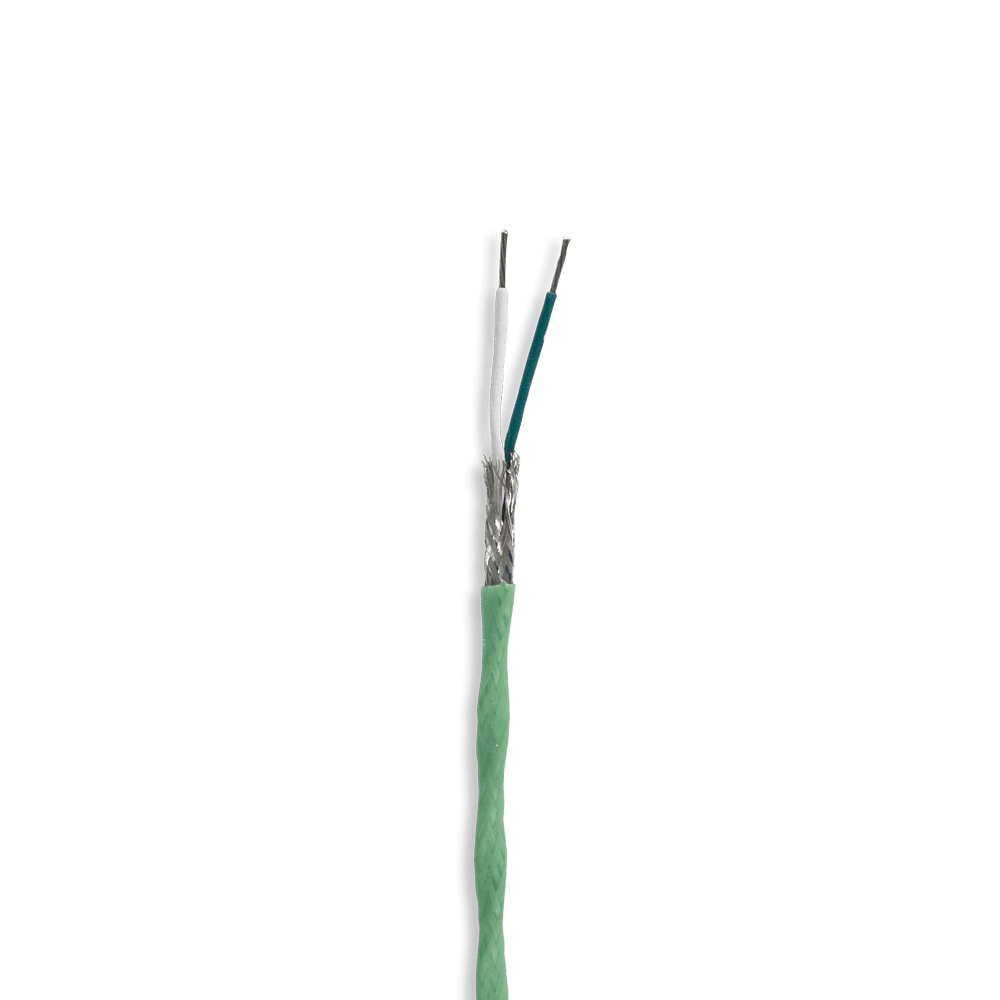

Teflon with shield | Type K | AWG 24F

Technical data:

Thermocouple combination: NiCr-Ni Type “K”
Limiting deviation: Class 1 as per DIN EN IEC 60584-3
Stranded conductor: stranded, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
Conductor insulation: PFA Teflon (260 °C continuous)
Conductor guide: stranded
Braiding: Cu tin-plated
Outer sheathing: FEP Teflon
Operating temperature: -100 °C to +200 °C
Outer dimension: approx. 3.0 mm round
Sheathing colour: green
Core colour: + = green, – = white

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description
Additional information

Description

Thermowire
TEX/CUTEXTW-24F-KK-IEC

Technical data:

Thermocouple combination: NiCr-Ni Type “K”
Limiting deviation: Class 1 as per DIN EN IEC 60584-3
Stranded conductor: stranded, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
Conductor insulation: PFA Teflon (260 °C continuous)
Conductor guide: stranded
Braiding: Cu tin-plated
Outer sheathing: FEP Teflon
Operating temperature: -100 °C to +200 °C
Outer dimension: approx. 3.0 mm round
Sheathing colour: green
Core colour: + = green, – = white

Additional information

Weight	0,20 kg

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 1012 Categories: Wires and cables, Thermowires, Type "K", Teflon, Compensating wires, Type "K", Teflon

Is your product not included?

Do you need an offer in advance? Do you need an individual solution? No problem: just give us a call and send us an email. Phone: +49 (0) 2266 / 487330-30 or E-Mail: info@therma-shop.de.
