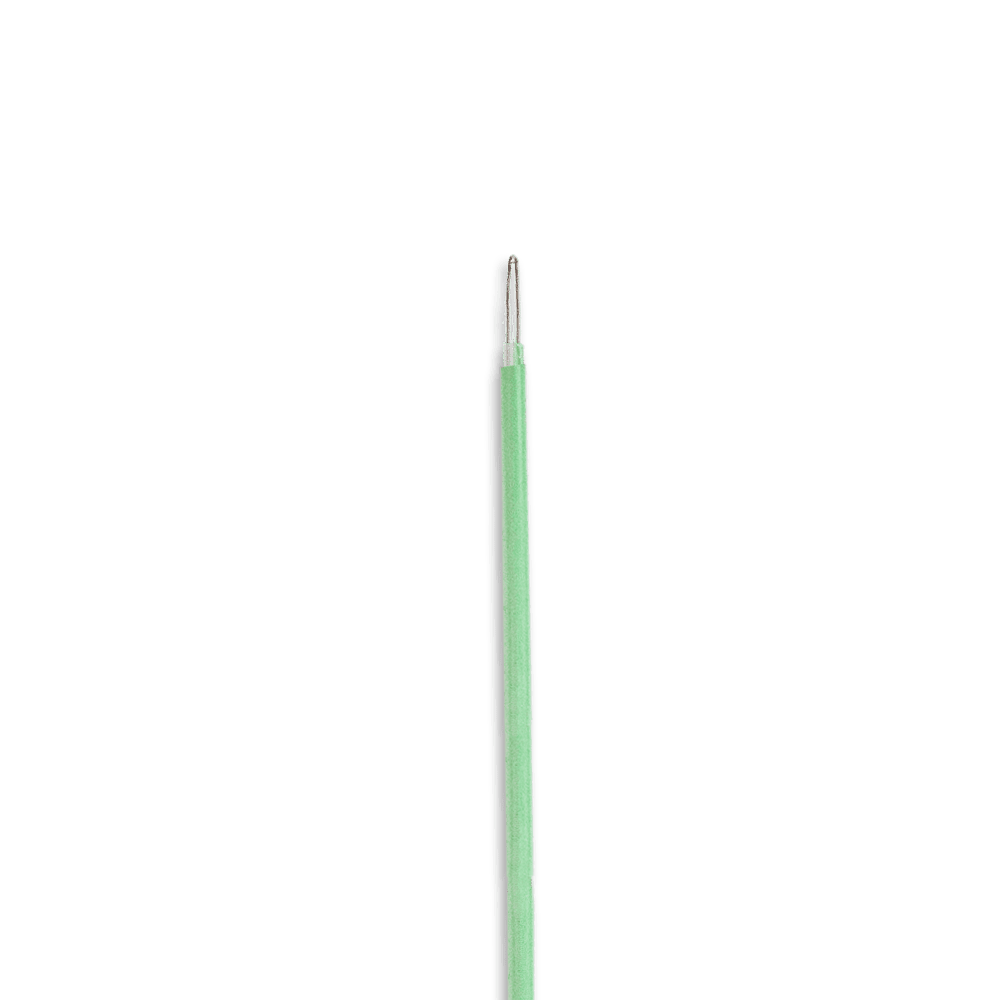

Inline thermocouple Type K
- Temperature range: :-190 °C to +260 °C, short-duration to +300 °C
- Wire type: Teflon,0.08 mm, wire, Tmax: +300 °C
Description

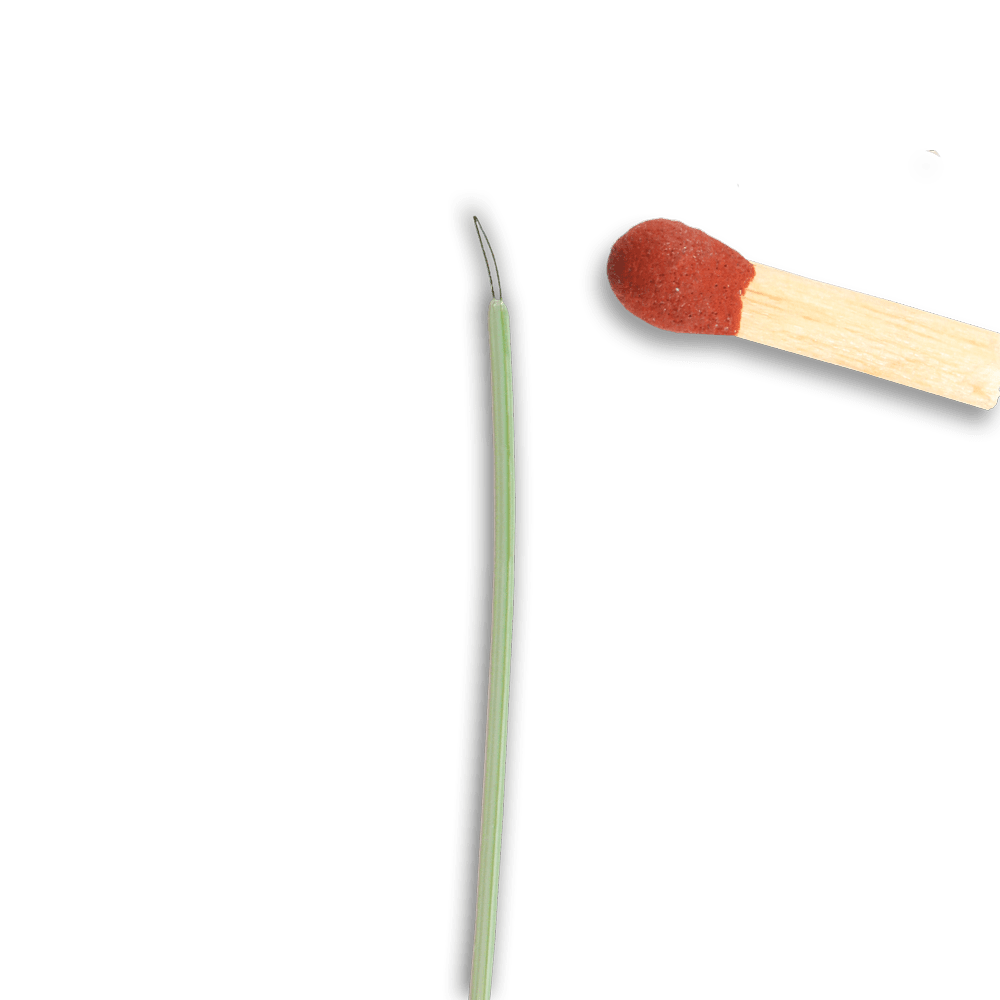

This inline thermocouple can be individually installed. For measurements in the wiring harness, on difficult to access points or on the smallest components. The thin wire, barely 0.7 mm in diameter, facilitates highly flexible installation. The thin probe tip guarantees very rapid response.
Technical data
- Thermocouple pairing: NiCr-Ni, Type K
- Limiting deviation:Cl.1 as per DIN EN 60584-1: 2014-07
- Conductor: Teflon TF/TF-40-KK-IEC
- Insulation: PFA-Teflon, 260 °C
- Conductor Ø: 2 x0,08 mm, solid
- Dimension: 0,4 x 0,7 mm
- Wire length: 500–5,000 mm
- Connection: Selection
Discount on large quantities on request
