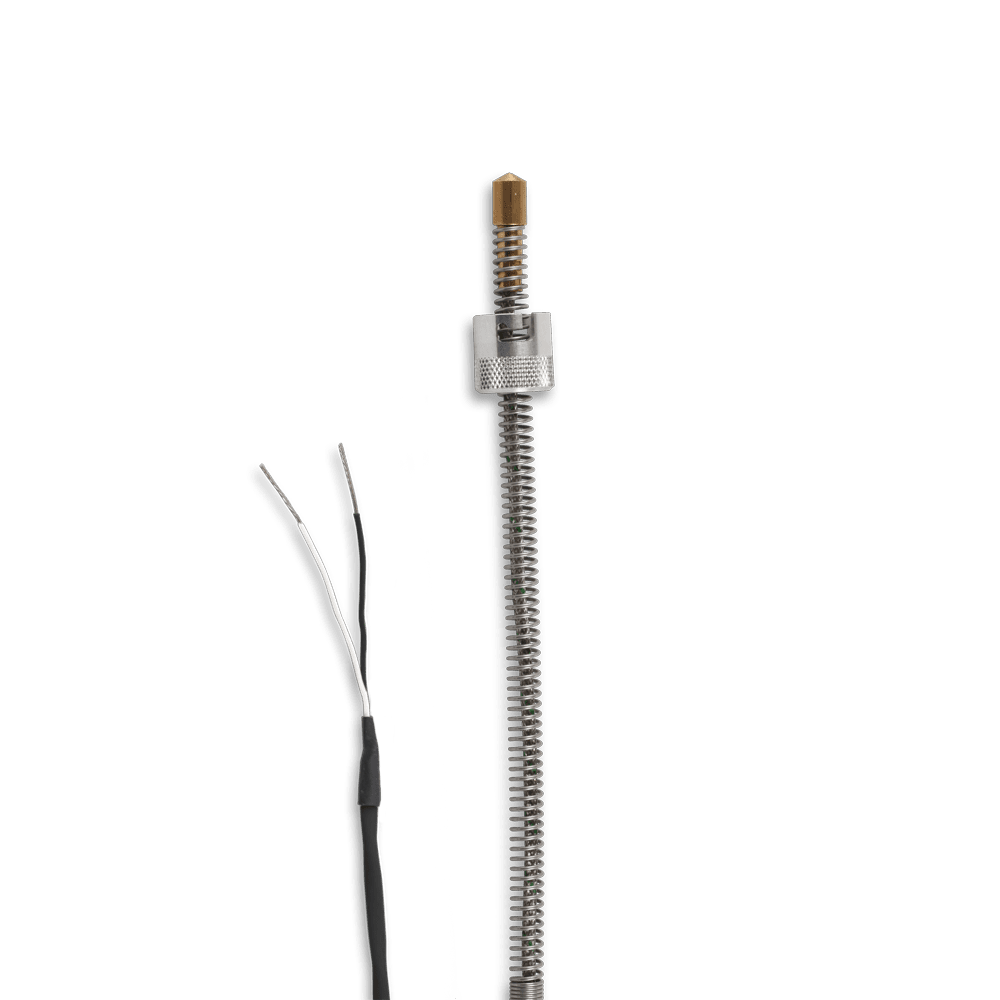

Plug-in thermocouple | Teflon | Type J

Plug-in thermocouple Type J

• Temperature range: -100 °C to +260 °C continuous
• Wire type: Teflon with CU shielding, Tmax: +200 °C continuous

Technical data

• Thermocouple pairing: Type J
• Limiting deviation:Cl. 1 as per DIN EN 60584-1: 2014-07
• Measuring point: insulated
• Probe housing: Brass
• Probe Ø:6.0 x 10 or 8.0 x 10 mm
• Bayonet cap:interior approx. Ø 12.5 mm or 14.5 mm
• Positioning range:along the spring approx. 180 mm
• Conductor:Teflon with CU shielding
• Conductor insulation: Teflon
• Conductor: AWG 24F (2 x 0.22 mm²)
• Wire length: 500–5,000 mm
• Connection: Selection
• R ISO / 500VDC : >200 MOhm

Recommended bore diameter 6.4mm or 8.4mm.

Discount on large quantities on request
