Data logger temperature | 2-channels | Type K, T 227,00 €
Back to products
Sheathing thermocouple | Teflon | Type T | 20,98 €
Click to enlarge

Data logger temperature | 4-channels | Type K, T, J

  • Connection 2 x plug miniature (CMP)
  • testo 176 T4, with a large display
  • testo 176 T3, In a metal housing for more robustness (without display)

Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Water temperature sensor
    • Exhaust gas temperature sensors
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

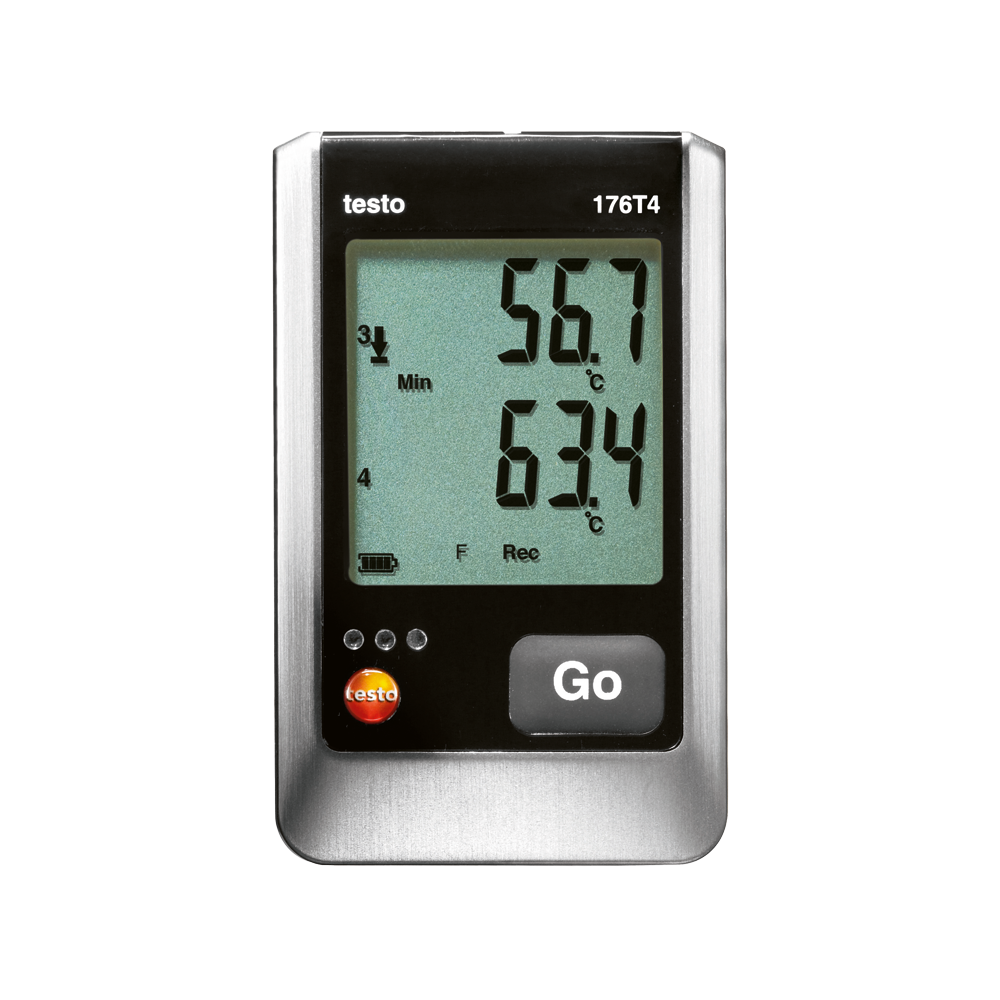

Data logger for four external thermocouples

  • Connection 2 x plug miniature (CMP)
  • testo 176 T4, with a large display
  • testo 176 T3, In a metal housing for more robustness (without display)

Type K (NiCr-Ni)

  • Measuring range: -200 … +1000 °C
  • Accuracy ±1 digit: ±1 % of m.v. (-200 … -100.1 °C); ±0.3 °C (-100 … +70 °C); ±0.5 % of m.v. (+70.1 … +1000 °C)
  • Resolution: 0.1 °C

Type T (Cu-CuNi)

  • Measuring range: -200 … +400 °C
  • Accuracy ±1 digit: ±1 % of m.v. (-200 … -100.1 °C); ±0.3 °C (-100 … +70 °C); ±0.5 % of m.v. (+70.1 … +400 °C)
  • Resolution: 0.1 °C

Type J (Fe-CuNi)

  • Measuring range: -100 … +700 °C
  • Accuracy ±1 digit: ±0.3 °C (-100 … +70 °C); ±0.5 % of m.v. (+70.1 … +750 °C)
  • Resolution: 0.1 °C

Benefits

  • High data security
  • Thermocouples Type T, Type K, Type J connectable
  • Simultaneous measurement at four sitesn
  • Measurement data memory for 2 million measurement values
  • Up to 8 years‘ battery life
  • Data transfer via USB cable or SD card
  • In a metal housing for more robustness (testo 176 T3) or with a large display for a clearer overview (testo 176 T4)

Description

It is often important to check whether the prescribed temperature values in a process are really being adhered to. The testo 176 T3 in its robust metal housing is the right data logger for measuring and recording temperatures simultaneously at four different sites in industrial processes. Thanks to the broad selection of connectable thermocouple probes, the requirements of the most widely differing applications can be fulfilled. Users of the testo 176 T4 can additionally count on a clear display which provides information on measurement values and limit value violations on site. This allows the user to obtain a quick overview without having to read out the logger on a PC. The free ComSoft Basic software allows fast programming of the data logger and easy data analysis.

Technical Data

  • Channels: 4 x external
  • Battery type: 1 x Lithium (TL-5903)
  • Battery life: 8 years (15 min. measuring cycle, +25 °C)
  • Operating temperature: 20 to +70 °C
  • Storage temperature: -40 to +85 °C
  • Dimensions: 103 x 63 x 33 mm
  • Weight: approx. 430 g (testo 176 T3); approx. 230 g (testo 176 T4)
  • Protection class: IP65
  • Measuring rate: 1 s to 24 h (freely selectable, for online measurement 2 s to 24 h)
  • Memory: 2 mio. measurement values

Download data sheet »

Equipment / Items delivered

testo 176 T4, 4-channel temperature data logger with external sensor connections (TC Type T, Type K and Type J) incl. wall holder, lock, batteries and calibration protocol

testo 176 T3, 4-channel temperature data logger in metal housing with external sensor connection (TC Type T, Type K and Type J) incl. wall holder, lock, batteries and calibration protocol

matching thermocouples

Discount on large quantities on request

Additional information
Weight 0,6 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 490-1 Category: Displays
