Dipstick-thermocouple | Fibreglass | Type K

Thermocouple pairing: Type K, Cl. 1
Sheathing material: Inconel600, -100 °C to +1.100 °C, continuous, depending on selected sheathing diameter and measuring medium or atmosphere
Wire type: Fibreglass with VA braid, Tmax: +450 °C

Element length *

Wire length *

Plunge depth *

Connector *

High Temp. cable ties, 10 pcs *

» individual request

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

Precise an sophisticated – Dipstick-thermocouples made by Therma

Description

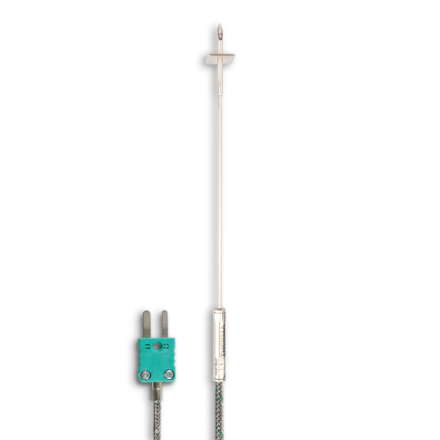

With the sharp needle the thermocouple easily can be stickinto tubes. It allows a fast and easy measurement of the medium inside of thetube. One possible application can be the cooling water tube of an engine. The stainlesssteel plate is made to be tighten by zipties.

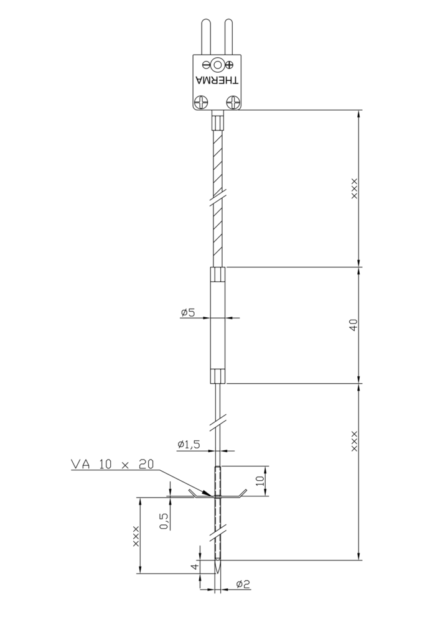

Technical data

Sheathing thermocouple pairing: Type K
Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07
Sheathing material: Inconel600
Measurement point: hot junction insulated
Probe diameter: 2.0 mm
Element length: 100–1,000 mm
Retaining plate: stainless steel, 10 x 20mm
Injection depth: 7-30mm
Adapter sleeve: 5.0 x 40 mm
Conductor: Fibreglass with VA braid
Conductor: Strand, 2x 0.22 mm²
Wire length: 500–5,000 mm
Connection: Selection
High-temp. zipties (+195°C) : optional

Discount on large quantities on request

Additional information

Weight	0,05 kg

Individual product inquiry

Do you need a similar product or have a special product request?

We would be happy to help you find the best solution for any quantity with our personal advice and individual production. Please use the product inquiry form below:

Your advantages with us for over 30 years

Entire production made in Germany (100% handmade)
German specialists (Employees have mostly been with the family business since it was founded)
High quality and maximum of durability (high quality materials, better and experienced manufacturing)
Custom-made production according to specific configuration within 1-2 weeks and according to your requirements
Buy sensors & probes online including configuration + further scale of discounts on request

SKU: 484 Categories: Thermocouples, Dipstick-Thermocouples
