G1/2″ screw-in thermocouple | Terminal head form B | Type K

  • accuracy cl. 1: ±1.5°C or 0.004 x |t|
  • Sheathing material: Inconel600, up to +1,150 °C, continuous, depending on selected sheathing diameter and measuring medium or atmosphere
» individual request
Range Discount
3 - 9 3%
10 - 24 5%
25 + 10%
Sales only to companies, traders and institutions.
We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.
Description

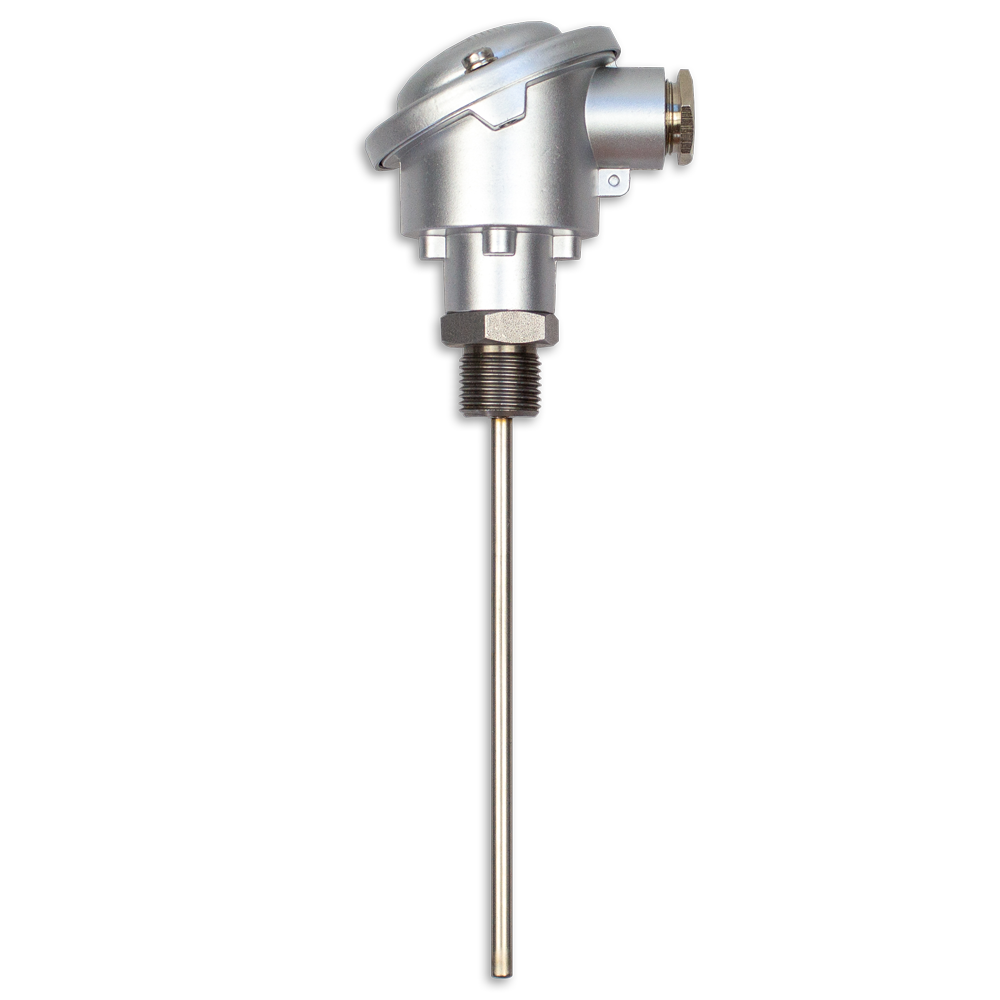

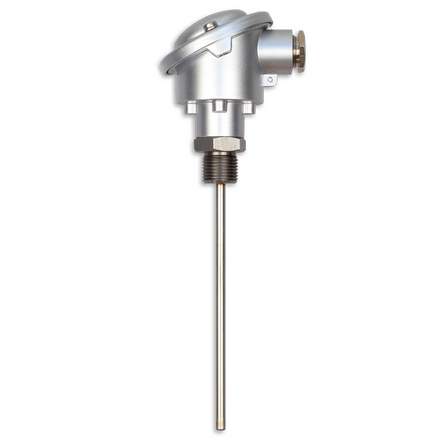

G1/2″ screw-in thermocouple type K, NiCr-Ni, terminal head form B

  • Temperature range: up to +1,150 °C, continuous, depending on selected sheathing diameter and measuring medium or atmosphere accuray
  • accuracy cl. 1: ±1.5°C or 0.004 x |t|

Description

Our screw-in thermocouple for precise temperature measurements are the ideal choice for temperature measurements in gaseous and liquid media. Whether in heating, furnace or apparatus engineering – these sensors offer reliable results. Thanks to high-quality materials and a special manufacturing process, they can even be used at extreme temperatures of up to 1150°C. Rely on our proven technology for precise temperature detection.

There is a choice of element diameter, element length and the option of integrating a head transmitter with an output of 4 – 20 mA with or without galvanic isolation.



Technical data

  • Sheathing thermocouple pairing: Type K, NiCr-Ni
  • Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07
  • Sheathing material: Inconel600 (2.4816)
  • Measurement point: hot junction insulated
  • Probe diameter: 3.0–6.0 mm
  • Mounting length: 50–400 mm
  • Thread: G1/2″
  • Connection head: Form B according to DIN 43729
  • Transmitter: with / without
  • Configuration: please let us know the values for min. and max. in °C.
    • Example measuring range :
    • 0°C to +50°C
    • 0°C = 4mA ; +50°C = 20mA

Limiting deviation

Class 1 as per DIN EN 60584-1: 2014-07

  • -40 °C to +375 °C       = ± 1.5 °C
  • +375 °C to +1,000°C     = ± 0.004 x |t|

User instructions transmitter (galvanically isolated) (PDF)

User instructions transmitter (NOT galvanically isolated) (PDF)

Other designs or materials on request

Discount on large quantities on request

Additional information
Weight 0,03 kg
