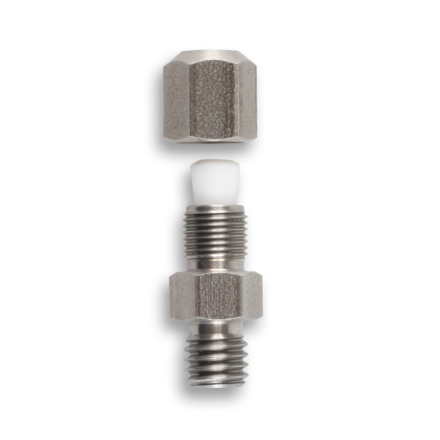

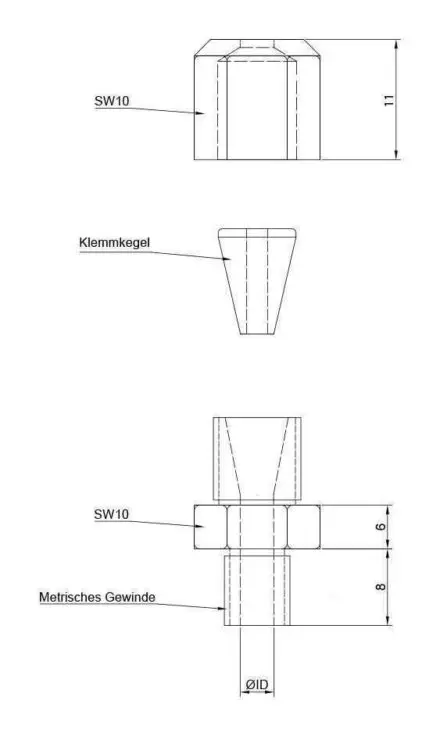

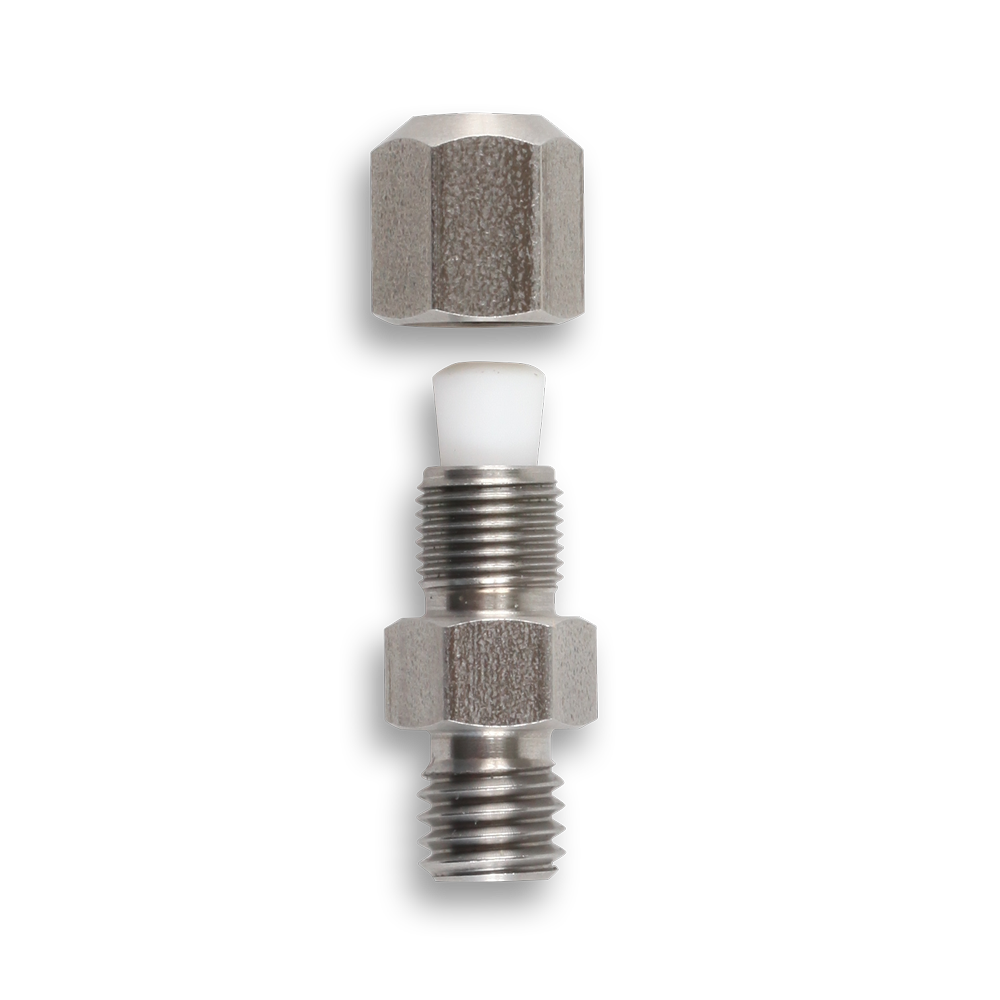

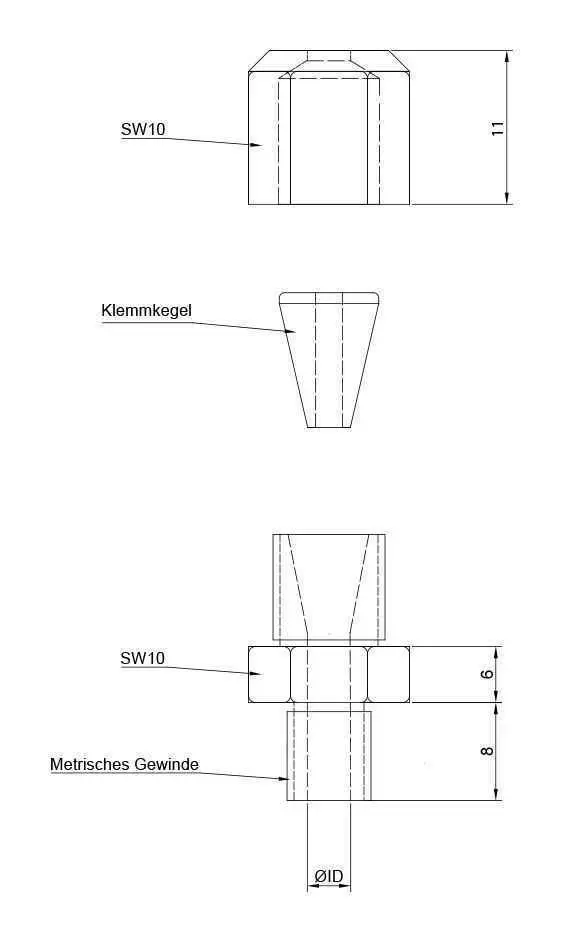

The compression-type fittings are the link between the thermocouple and the test area and facilitate precise adaptation. After installing the compression-type fitting, the thermocouple can be inserted and clamped in with the desired installation length. That makes it possible to perform individual measurements with self-defined installation lengths directly onsite.
- Stainless steel compression-type fitting
- Probe diameter: 1.0 to 3.2 mm
- Male thread: M6, M8, M8x1
- Cone clamp: Teflon
Discount on large quantities on request
