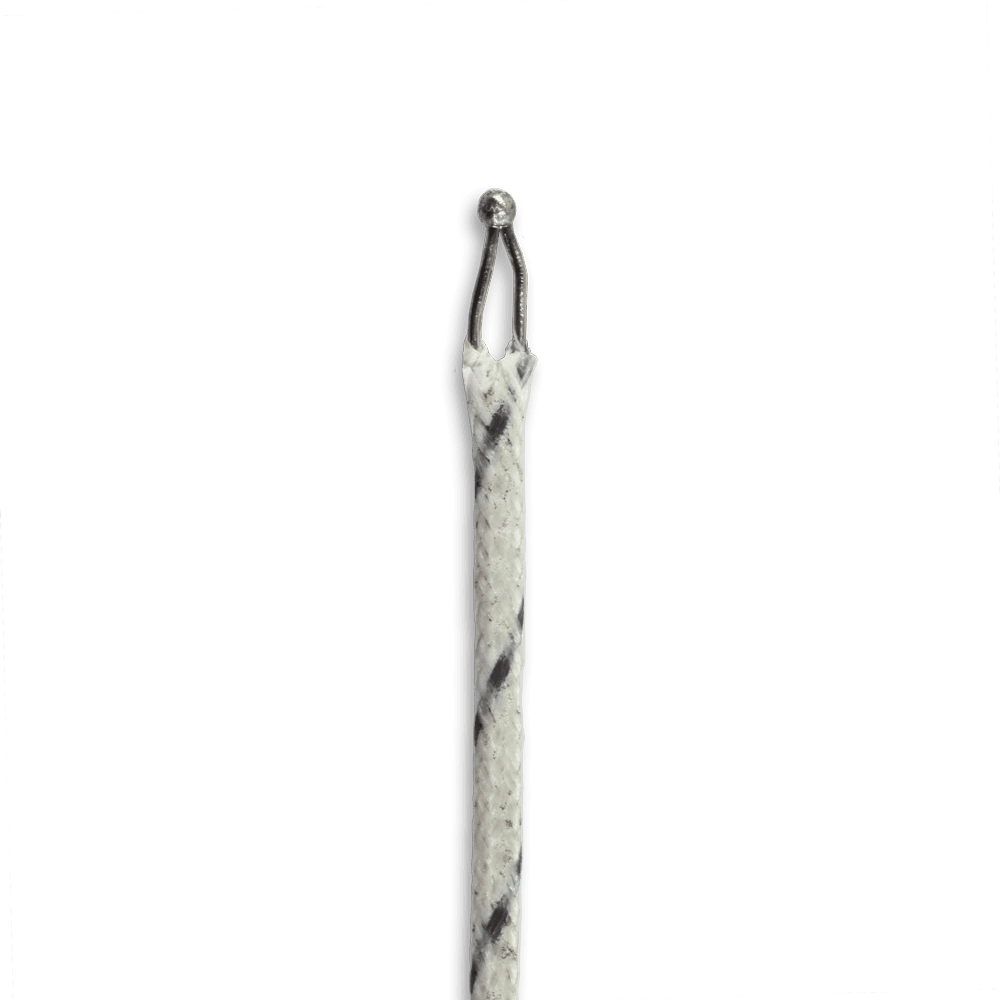

Inline thermocouple Type J
- Temperature range: -100 °C to +450 °C
- Wire type: Fibreglass/fibreglass, 0.5 mm, wire, Tmax: +450 °C
Description
This inline thermocouple can be individually installed. For measurements in the wiring harness, on difficult to access points or on the smallest components. The wire facilitates very flexible installation. The fibreglass insulation facilitates routing the probe along very hot components (Tmax. 450 °C). The thin probe tip guarantees very rapid response.
Technical data
- Thermocouple pairing: Type J
- Limiting deviation:Cl. 1 as per DIN EN 60584-1: 2014-07
- Conductor: Fibreglass G/G24-J-IEC
- Conductor:Wire, 2 x 0.5 mm
- Conductor insulation: Fibreglass
- Operating temperature:up to +450 °C
- Exterior dimension:approx. 2.1 x 1.5 mm
- Wire length: 500–5,000 mm
- Connection: Selection
Discount on large quantities on request
