Connector plug + Coupling jack Standard | Duplex (CSPD-CSJD) 25,85 €
Back to products
Coupling jack Miniature | Locking (CMLJ) 7,10 €
Click to enlarge

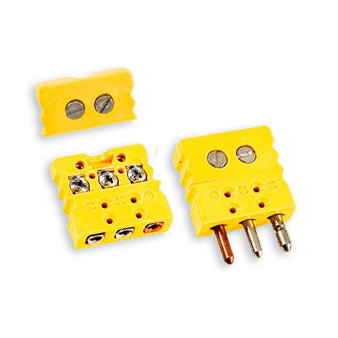

Connector plug + Coupling jack Standard | Three-pin (CSPT-CSJT)

  • copper pin connection for ground
  • Temperature load max. +220 °C
  • Contacts of original thermocouple material pins
  • All international colour designations are available

Title Range Discount
Rabattstaffel 1 26 - 50 10% 18,04 €
Rabattstaffel 2 51 - 100 20% 16,03 €
Rabattstaffel 3 101 + 25% 15,03 €
Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Water temperature sensor
    • Exhaust gas temperature sensors
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Recently Viewed Products

  • Connector plug + Coupling jack Standard | High-temperature (CSPH-CSJH) 20,20 €
  • Panel Assembly Standard Vertical (PASV) 24,23 €
  • Connector plug + Coupling jack Standard | Duplex (CSPD-CSJD) 25,85 €
Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Use:
Connector for thermocouple and RTD circuits. The solid connector pins guarantee reliable connection under even the most difficult conditions. The third contact for ground or continuous shield or for three wire RTD´s.

Mechanical design:

  • Glass filled high quality thermoplastic body with original thermocouple material pins and springloaded inserts.
  • Polarized pins.
  • Central cover screw design for quick wiring.
  • Molded barriers prevent short circuit.
  • Captive cover screw for easy assembly.
  • Easy wire connection through sandwich construction
  • Stainless Steel screws with Phillips head

Conductor diameter:

  • Accepts wires up to 1,6 mm.
  • Max. cable diameter 8.0 mm.

Temperature rating:

  • Max. +220 °C.

Available types:

  • online available: Type K, J, E, N, T, U, R/S, B
  • on request:
    • Type C
    • gold plated, hard nickel plated pins
    • hollow pins

Resistance themometer:

  • for RTD use type U (Cu/Cu).



Colour designations:

  • All international colour designations are available:
    DIN IEC, DIN 43710, ANSI, NFE, BS, JIS, etc.

Material-Code:

Discount on large quantities on request

Additional information
Weight 0,06 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 422 Categories: Standard connectors, Connector Standard, Thermo connectors
