Connectors for thermocouples and resistance thermometer measurement circuits. Suitable for measurement with small wires and mineral-insulated metal sheathed cables.

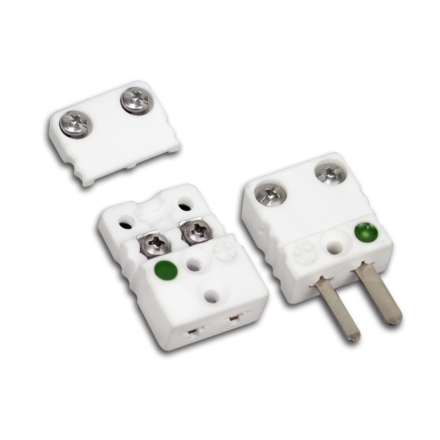

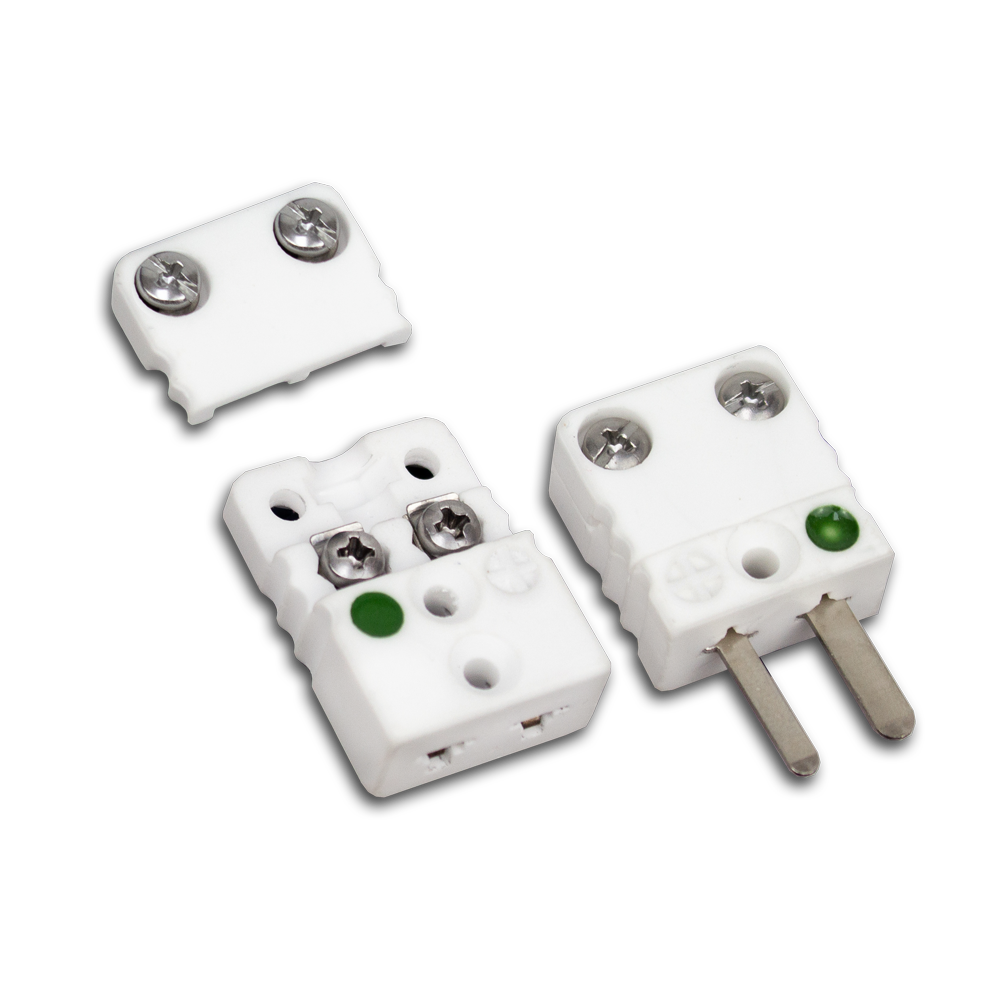

- Ceramic housing with contacts of original thermocouple materials and spring-loaded sockets for reliable contact .
- Reverse polarity protection by different contact pin widths.
- Oversize screw head for easy wiring.
- One body design
- High purity alumina body material
- Accepts wires up to 0,6 mm..
- Max. cable diameter 4.5 mm.
- Max. +650 °C.
- online available: Type K, J, E, N, T, U, R/S, B
- on request: Type C
- Body colour white. Calibration indication by coloured dot
Discount on large quantities on request
