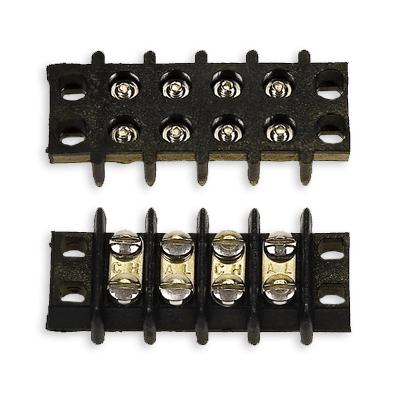

Barrier Terminal Block (BTB)

Use:
Terminal rails enable the easy connection of thermocouples or resistance thermometer measurement circuits in junction boxes or on the rear side of devices.

Mechanical design:

• Core material of fibreglass-filled nylon
• Insulators between the contacts prevent short-circuits.
• Screw connections for easy installation.
• Available in a wide range of thermo-pairings.
• Dimensions suitable for the use of cable-shoes A-20.131-(…) and A-20.132-(…).

Temperature load:

• Max. +200 °C.

Conductor diameter:

• Reliable connection from 0.2 to 3.0 mm.

Available types:

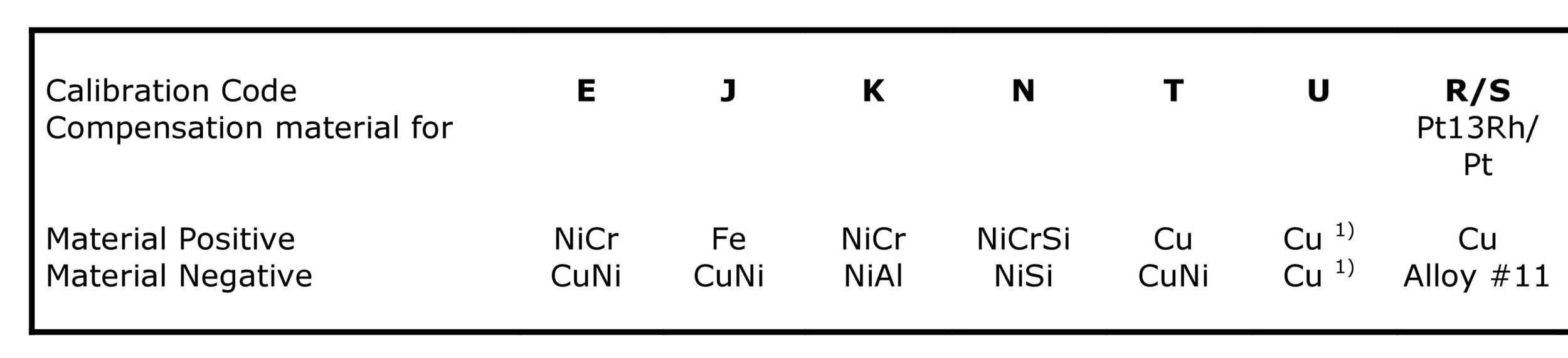

• online available: Type K, J, E, N, T, U, R/S

Designation:

• The housing colour is black and the terminal bridges are labelled with the material.

Discount on large quantities on request
