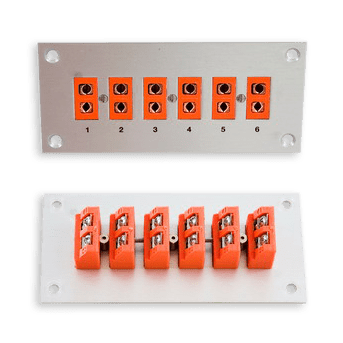

Panel Assembly Standard Horizontal (PAS)

  • up to 24 circuits possible
  • Temperature load max. +220 °C
  • Contacts of original thermocouple material
  • All international colour designations are available

Title Range Discount
Rabattstaffel 1 6 - 10 5% 15,61 €
Rabattstaffel 2 11 - 20 10% 14,79 €
Rabattstaffel 3 21 + 15% 13,97 €
close
Categories
  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Use:
Panel assembly for thermocouples and RTD circuits for mounting in control rooms, test stands, laboratory applications, pilot plans, etc.
This Panel is mounted with Panel standard insert (PSI)

Mechanical design:

  • Aluminium front plate, anodised, protected against corrosion.
  • Measurement circuit numbering, abrasion- and wipe-proof.
  • Attachments of stainless steel and nickel-plated brass.
  • The assembly type and design prevent the fitted built-in couplings
    from being pushed in or out.
  • The bevelled connection levels enable easy connection and
    disconnection of the conductors in the installed condition.
  • Individual panel insert can be replaced by loosening only a few screws.
  • Standard panels for 1 to 24 measurement circuits.

Conductor diameter:

  • Accepts wires upto 1,6 mm.

Temperature load:

  • Max. +220 °C.


Available types:

  • online available: Type K, J, E, N, T, U, R/S, B
  • on request: Type C

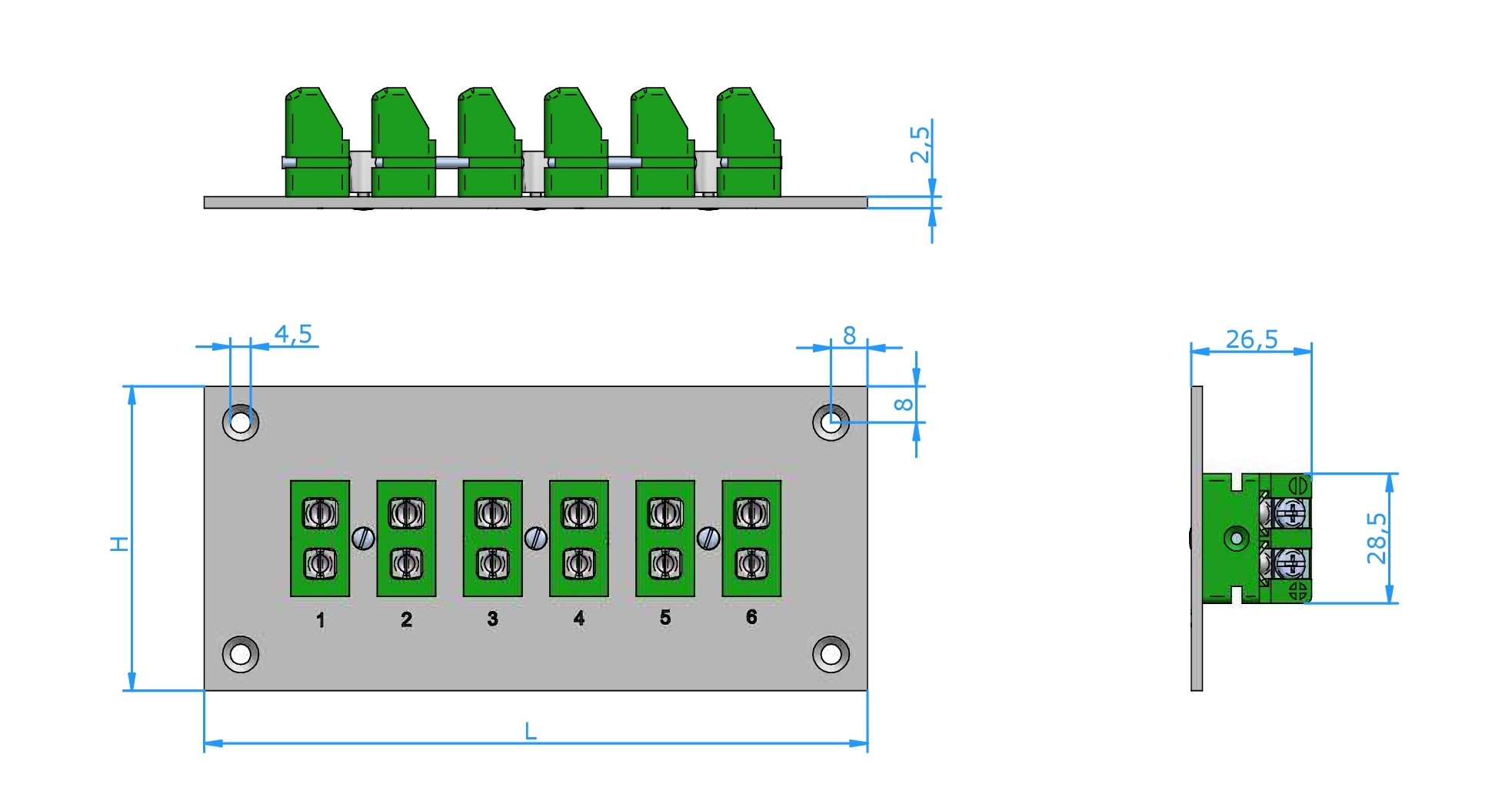

Dimension:

Circuits Rows Panel
dimension
(L x H in mm)
Dimension
panel cut-out
(in mm)
1 1 38 x 38 31 Ø
2 1 70 x 67 40 x 40
3 1 89 x 67 49 x 40
4 1 108 x 67 78 x 40
5 1 127 x 67 97 x 40
6 1 146 x 67 116 x 40
8 1 184 x 67 154 x 40
10 1 222 x 67 192 x 40
12 1 260 x 67 230 x 40
18 1 374 x 67 344 x 40
24 2 260 x 115 230 x 88



Material-Code:

Discount on large quantities on request

Additional information
Weight 0.2 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 19 Categories: Panel Standard, Standard connectors, Thermo connectors
