Coupling jack Miniature | High-temperature (CMJH)

Use:
Connectors for thermocouples and resistance thermometers measurement circuits. Suitable for measurement with small wires and mineral-insulated metal sheathed cables.

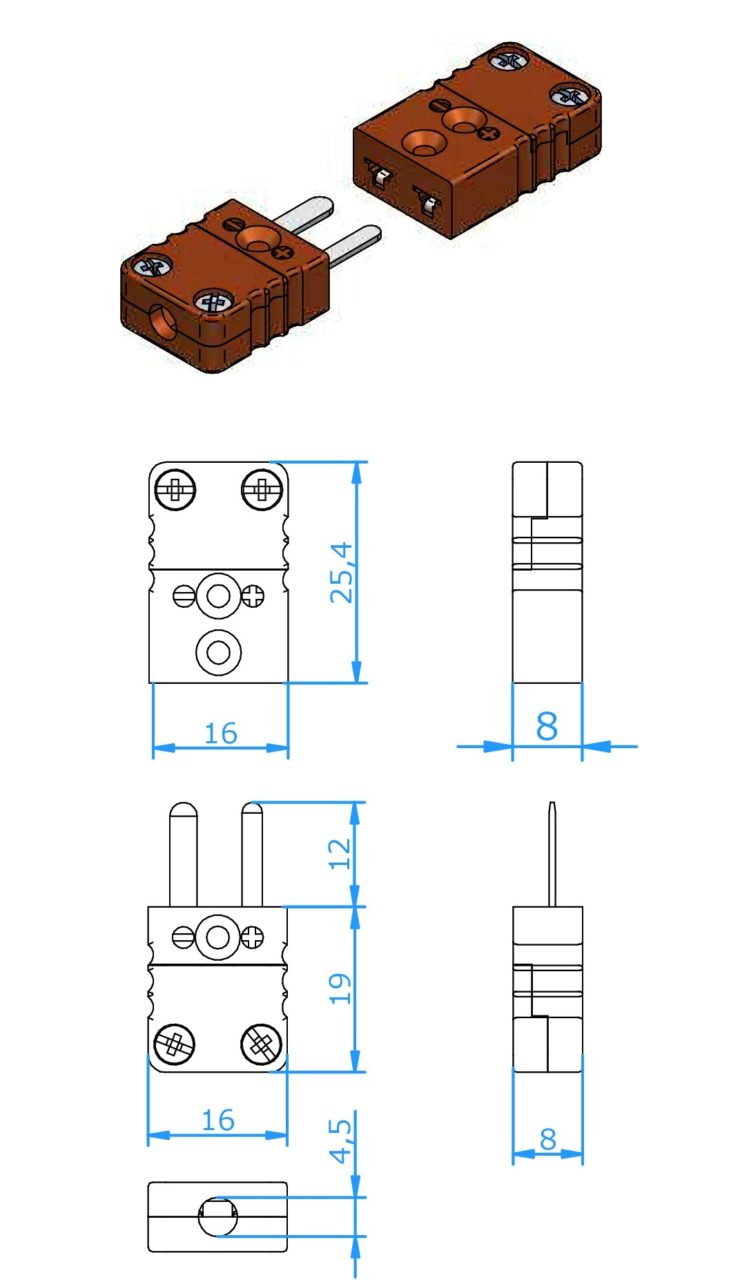

Mechanical design:

• body of thermoset material with original thermocouple material pins and springloaded inserts.
• Polarized pins ensure proper connection.
• Easy wire connection through sandwich construction.
• Molded barriers prevent short circuit.
• Rugged one body design.

Conductor diameter:

• Accepts wires up to 0,6 mm.
• Max. cable diameter 4.5 mm.

Temperature load:

• Max. +350 °C.

Available types:

• online available: Type K, J, E, N, T, U, R/S, B
• on request: Type C

Resistance themometer:

• for RTD use type U (Cu/Cu).

Colour designations:

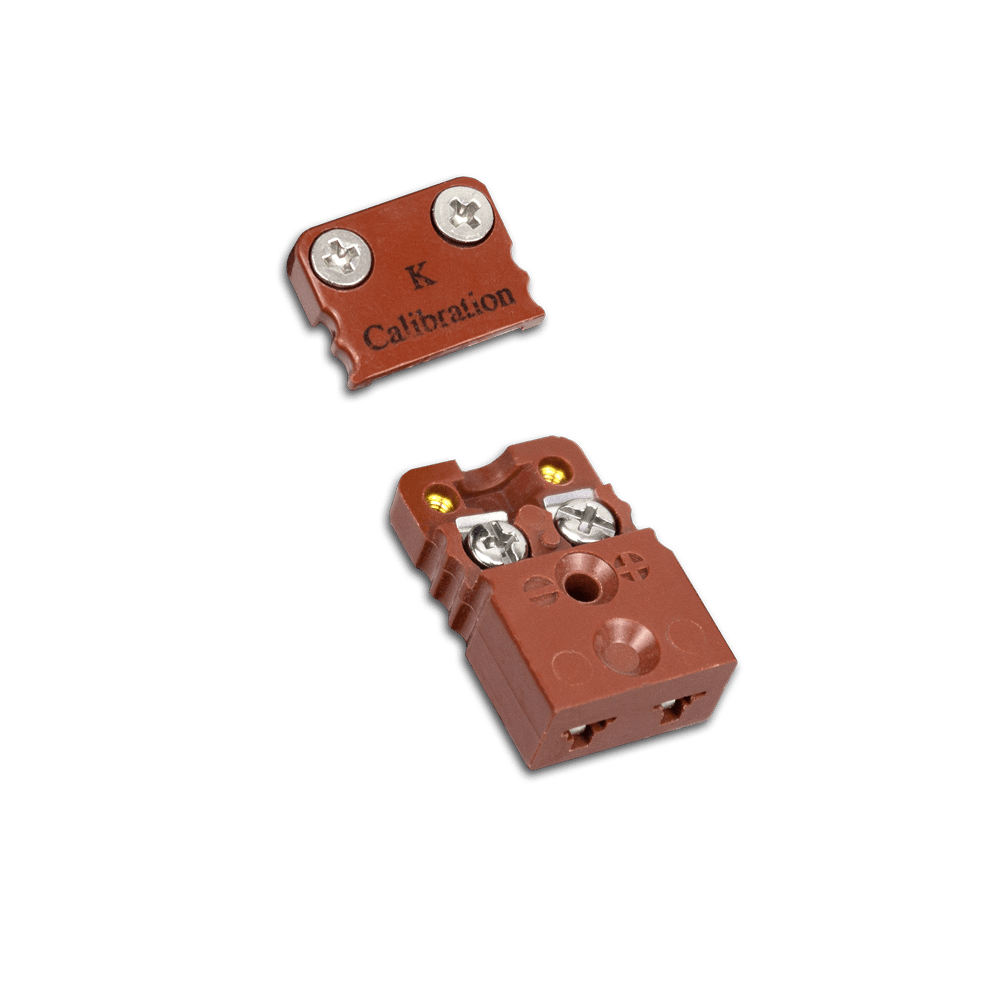

• Body color brown. Calibration indication printed on cover.

Discount on large quantities on request
