Startseite » Shop » Thermo connectors » Miniature connectors » Connector Miniature » Coupling jack Miniature | Ceramic (CMJC)
Coupling jack Miniature | Locking (CMLJ) 7,10 €
Back to products
Coupling jack Miniature | High-temperature (CMJH) 6,34 €
Click to enlarge

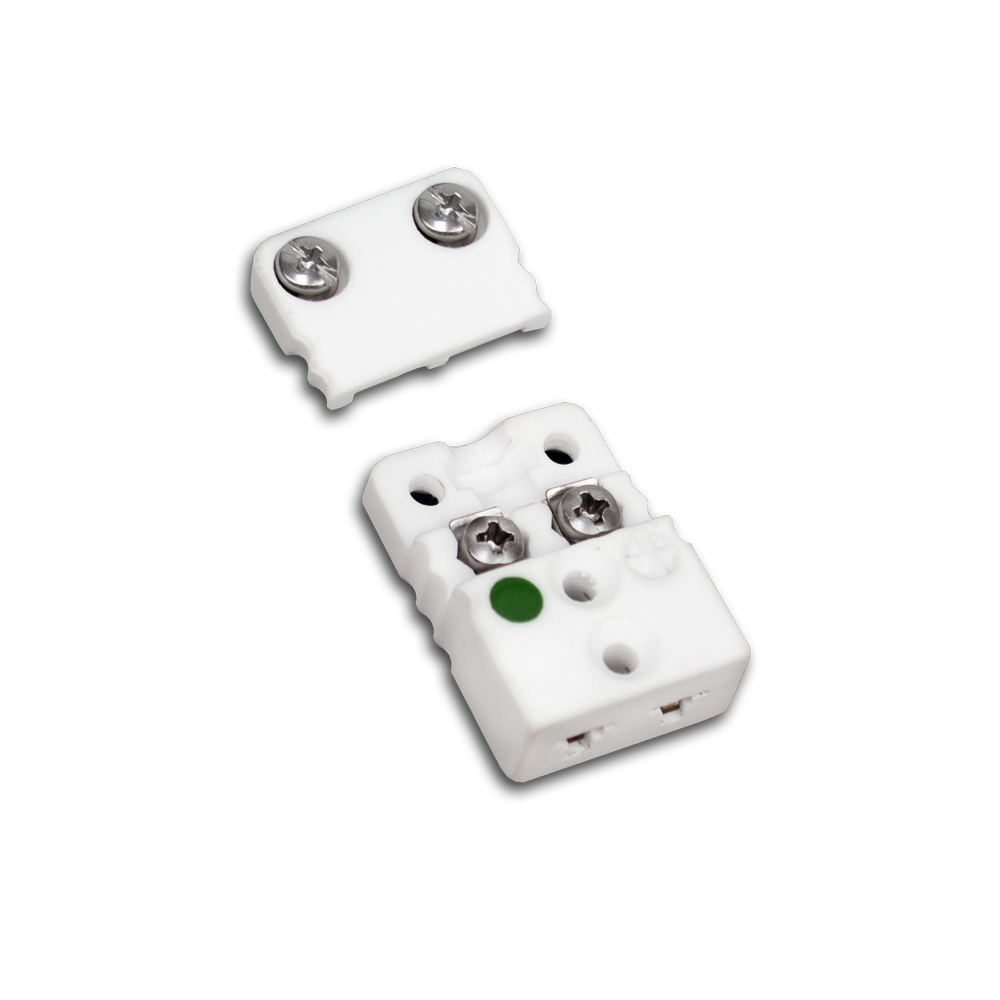

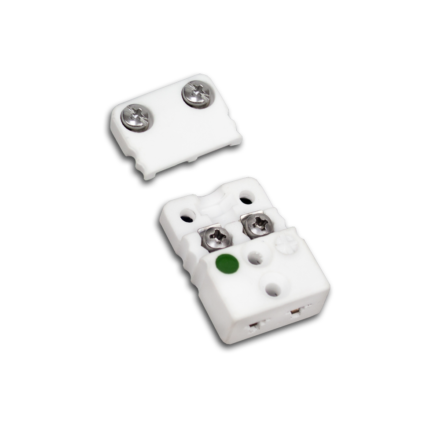

Coupling jack Miniature | Ceramic (CMJC)

  • Temperature load max. +650 °C
  • Contacts of original thermocouple material pins
  • Ceramic housing

Title Range Discount
Rabattstaffel 1 26 - 50 10% 8,46 €
Rabattstaffel 2 51 - 100 20% 7,52 €
Rabattstaffel 3 101 + 25% 7,05 €
Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Water temperature sensor
    • Exhaust gas temperature sensors
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Recently Viewed Products

  • Connector plug Miniature | Ceramic (CMPC) 9,40 €
  • Fiberglass with armour braiding| 4 x 24F-Ni | +600°C 2,49 €
  • Teflon with shield | 4 x 26F-Cuvn | Ø2,5mm | +260°C 2,91 €
Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Use:
Connectors for thermocouples and resistance thermometer measurement circuits. Suitable for measurement with small wires and mineral-insulated metal sheathed cables.

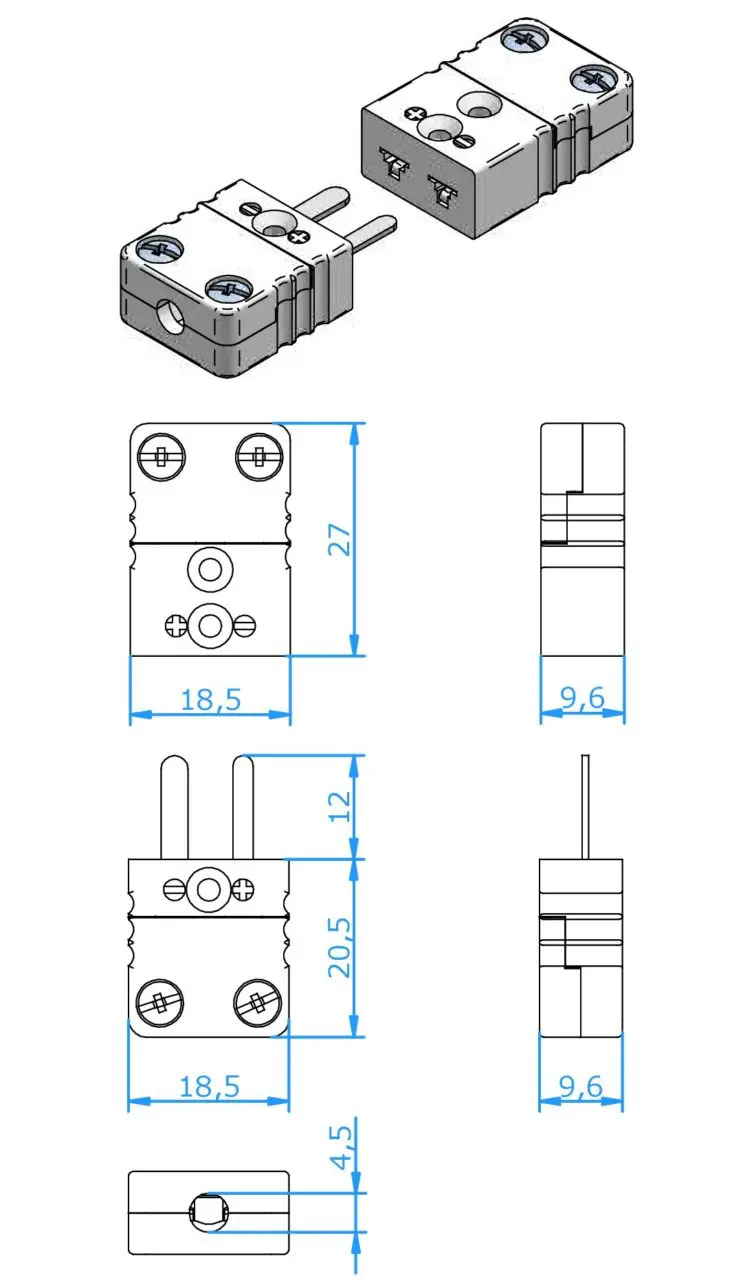

Mechanical design:

  • Ceramic housing with contacts of original thermocouple materials and
spring-loaded sockets for reliable contact .
  • Reverse polarity protection by different contact pin widths.
  • Oversize screw head for easy wiring.
  • One body design
  • High purity alumina body material

Conductor diameter:

  • Accepts wires up to 0,6 mm
  • Max. cable diameter 4.5 mm.

Temperature load:

  • Max. +650 °C.


Available types:

  • online available: Type K, J, E, N, T, U, R/S, B
  • on request: Type C

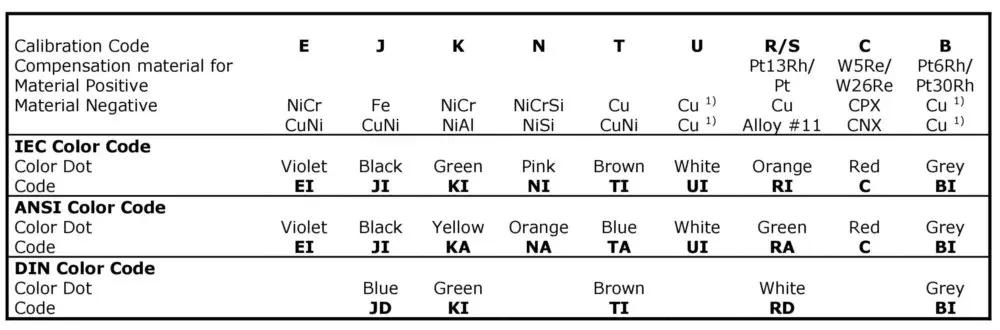

Colour designations:

  • Body colour white. Calibration indication by coloured dot

Material-Code:

Discount on large quantities on request

Additional information
Weight 0,01 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 424 Categories: Miniature connectors, Connector Miniature, Thermo connectors
