Teflon | Type K | 2x 0.2 mm AWG30 | oval | Tmax 280 °C

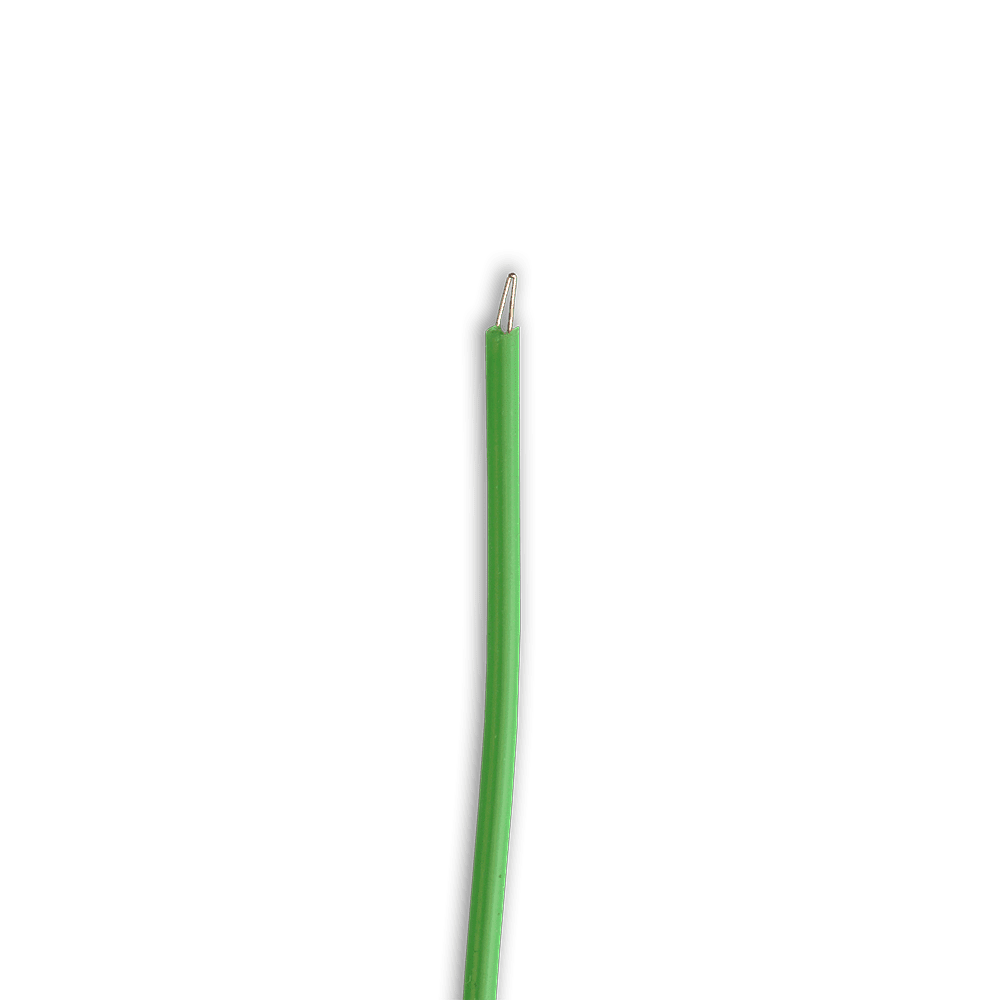

Inline thermocouple Type K

• Temperature range: -190 °C bis +260 °C, short-duration to + 280 °C
• Wire type: Teflon, 0.2 mm, wire, oval, Tmax: + 280 °C

Description

This inline thermocouple can be individually installed. For measurements in the wiring harness, on difficult to access points or on the smallest components. The thin wire, barely 0,9 x 1,4 mm, facilitates highly flexible installation. The thin probe tip guarantees very rapid response.

Technical data

• Thermocouple pairing: Type K
• Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07
• Conductor: Teflon TF/TF-30-KK-IEC
• Insulation: PFA-Teflon, 260 °C
• Conductor Ø: 2 x 0.20 mm, solid
• Dimension: 0,9 x 1,4 mm
• Wire length: 500–5,000 mm
• Connection: Selection

Discount on large quantities on request
