Spring loaded | Copper | Type K

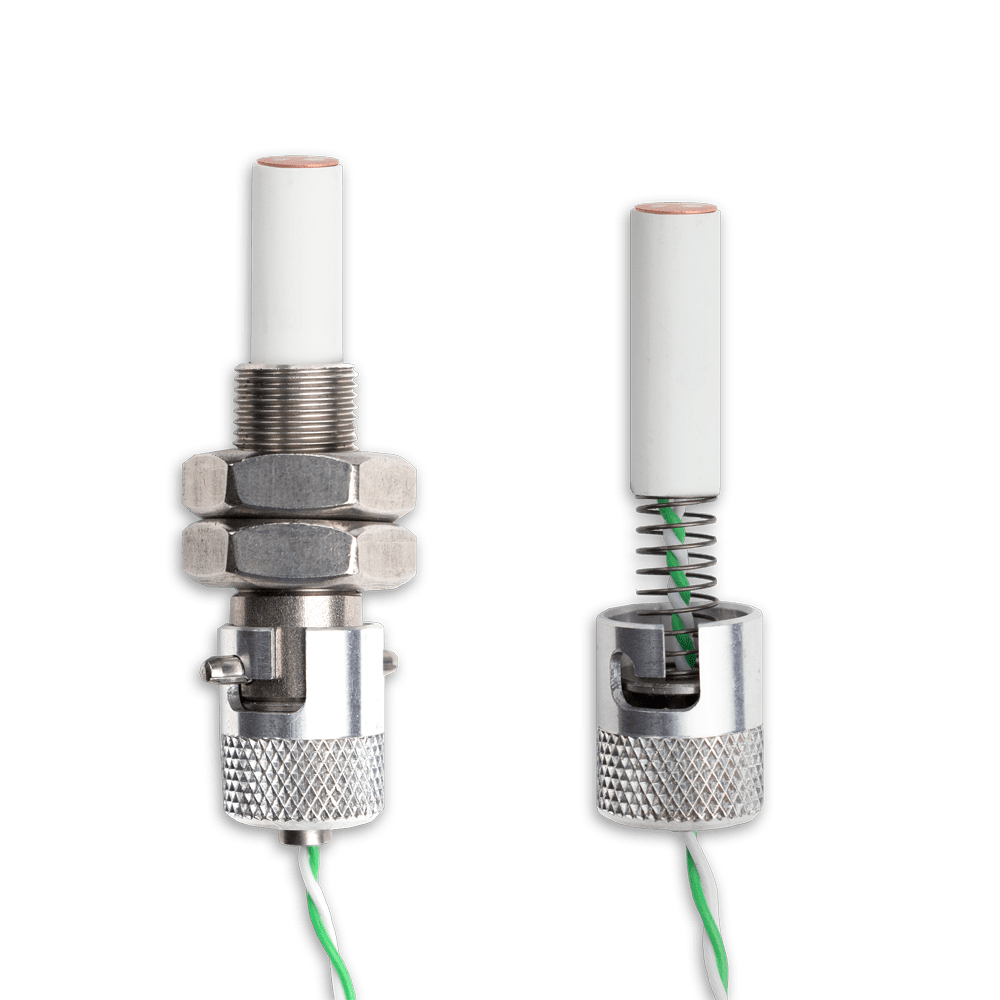

Spring loaded surface thermocouple, Type K

• Measuringsite on copper plate
• Temperature range: -100 °C to +900 °C continuous
• Wire type: Teflon,single-conductor, open strand, Tmax: +230 °C continuous

Description

This spring-loaded surface thermocouple is specially made for temperature measurements on metal surfaces. To get a fast reaction on changing temperatures the measuring site is on a thin copper plate. By attaching the mounting adapter, the spring-loaded sensor is guided on the surface with uniform pressure by means of a bayonet cap.

Technical Data

• Thermocouple pairing: Type K
• Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07
• Limiting deviation: Cu-plate Ø 7.0 mm, 0,5 mm thick
• Housing:Ceramic, Ø 8.0 x 25 mm
• Wire length: 500–5,000 mm
• Conductor: FEP-Teflon, strand, 2x 0,22 mm², open strand
• Temperature range of the wire: up to 205 °C in continuous duty, 230 °C peak
• Connection: With or without bayonet cap and mounting adapter M 12×1 with 2 counternut

Discount on large quantities on request
