Length 50 m
Technical data:

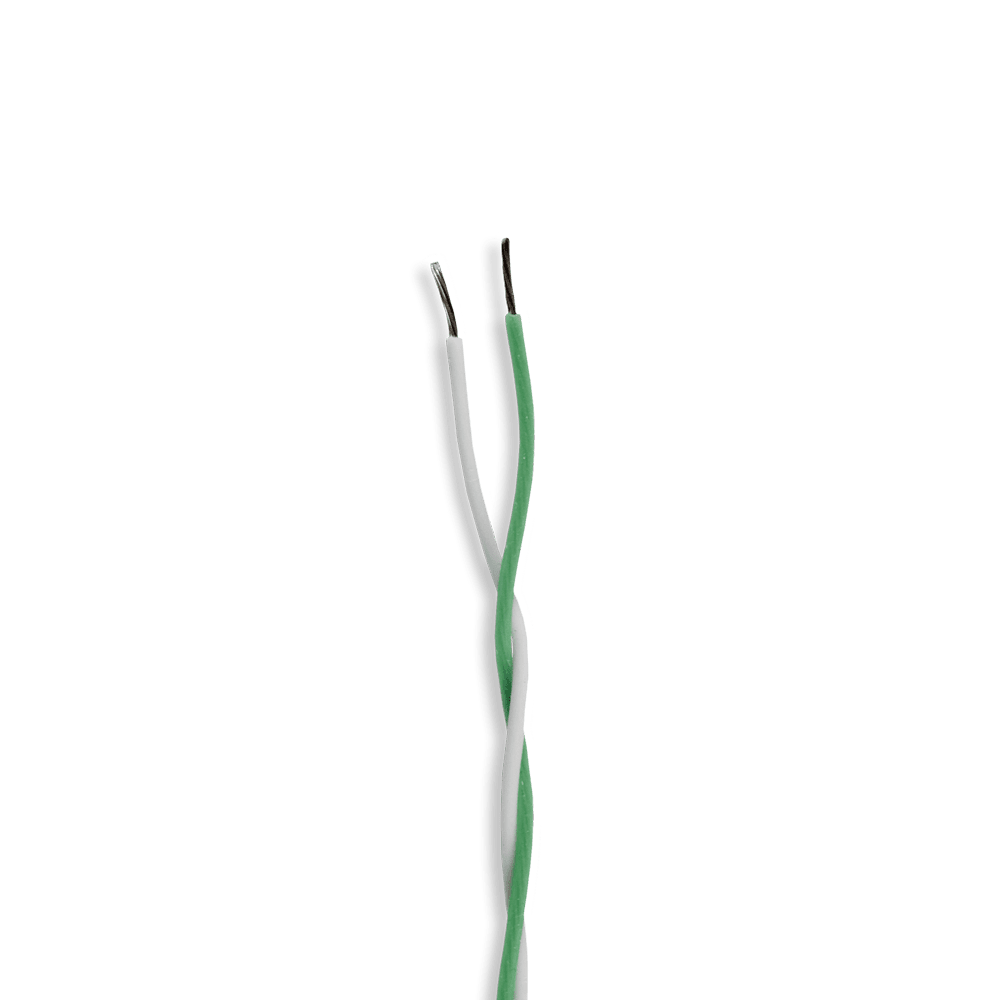

- Thermocouple combination: NiCr-Ni Type “K”
- Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 1.5 °C or 0.004 x | t |
- Stranded conductor: stranded, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
- Conductor insulation: FEP Teflon
- Conductor guide: open strands
- Operating temperature: -100 °C to +200 °C
- Outer dimension: Approx. 2.3 mm round
- Core colour: + = green, – = white
