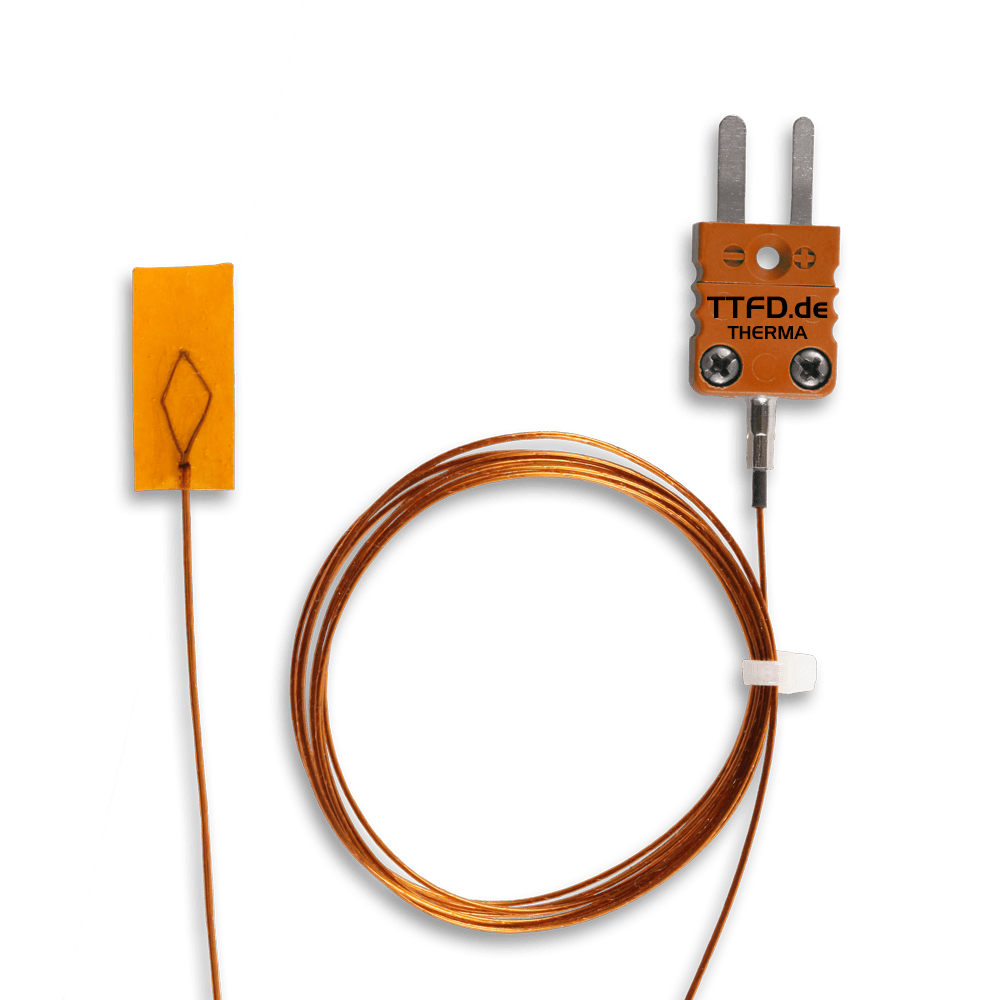

Self-adhesive surface thermocouple Type T with Kapton adhesive foil
- Temperature range: -100 °C to +150 °C continuous, +260 °C short-duration
- Adhesive foil: Kapton, approx. 9 x 20 mm
Description
This self-adhesive thermocouple is ideal for surface temperature measurements. For both curved and flat objects. The extremely thin wire, not even 1 mm in diameter, facilitates highly flexible installation. The thin probe tip guarantees very rapid response.
Technical data
- Thermocouple pairing: Type T, Cu-CuNi
- Limiting deviation:Cl. 1 as per DIN EN 60584-1: 2014-07
- Conductor:Kapton KFD-30-T-IEC
- Insulation: Kapton, 285 °C
- Conductor Ø: 2 x 0.25 mm, solid
- Dimension: 0.8 x 0.9 mm
- Wire length: 500–5,000 mm
- Connection: Selection
- Self-adhesive surface: Kapton, approx. 9 x 20 mm
- Tmax. Adhesive surface: 150 °C continuous, 260 °C short-duration
Limiting deviation
Class 1 as per DIN EN 60584-1: 2014-07
- -40 °C bis +125 °C = ± 0.5 °C
- +125 °C bis +350 °C = ± 0.004 x |t|
Discount on large quantities on request
