Startseite » Shop » Wires and cables » Thermowires » Type "K" » Fibreglas » G/GSTW-24F-KK-IEC | 10 m
Weld-on sockets 10,00 €
Back to products

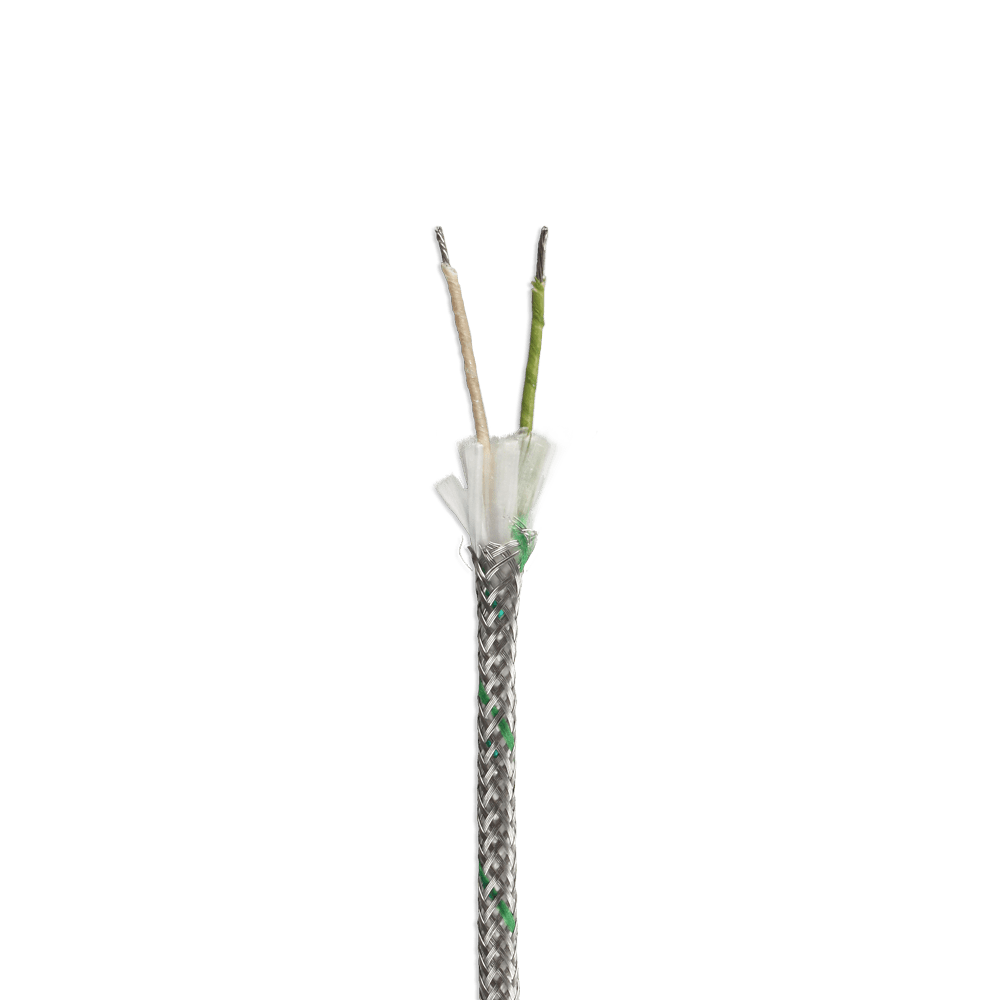

Fiberglass with armour braiding | Type L | AWG 24F 2,20 €
Click to enlarge

G/GSTW-24F-KK-IEC | 10 m

Technical data:

  • Thermocouple combination: NiCr-Ni Type “K”
  • Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 1.5 °C or 0.004 x | t |
  • Conductor: Strand, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
  • Conductor insulation: Fibreglass
  • Conductor guide: stranded with fibreglass filler insulation
  • Outer sheathing: armour-VA braiding
  • Operating temperature: up to +450 °C
  • Outer dimension: approx. 2.3 mm round
  • Sheathing colour: silver with green identification thread
  • Core colour: + = green, – = white

Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Water temperature sensor
    • Exhaust gas temperature sensors
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Length 10 m

Technical data:

  • Thermocouple combination: NiCr-Ni Type “K”
  • Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 1.5 °C or 0.004 x | t |
  • Conductor: Strand, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
  • Conductor insulation: Fibreglass
  • Conductor guide: stranded with fibreglass filler insulation
  • Outer sheathing: armour-VA braiding
  • Operating temperature: up to +450 °C
  • Outer dimension: approx. 2.3 mm round
  • Sheathing colour: silver with green identification thread
  • Core colour: + = green, – = white
Additional information
Weight 0,22 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 80 Categories: Wires and cables, Thermowires, Type "K", Fibreglas
