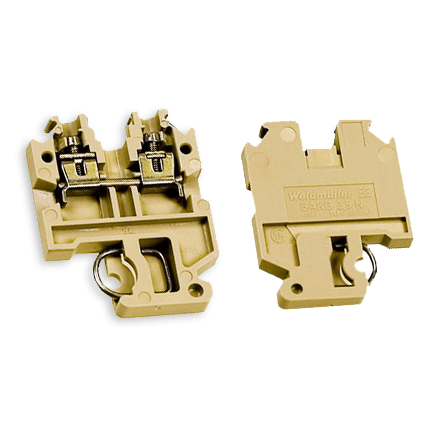

Rail Terminal Block (RTB)

Application
Terminal blocks in the proven rail mounted design especially suited for those applications where a lot of terminals have to be fitted in a limited space.

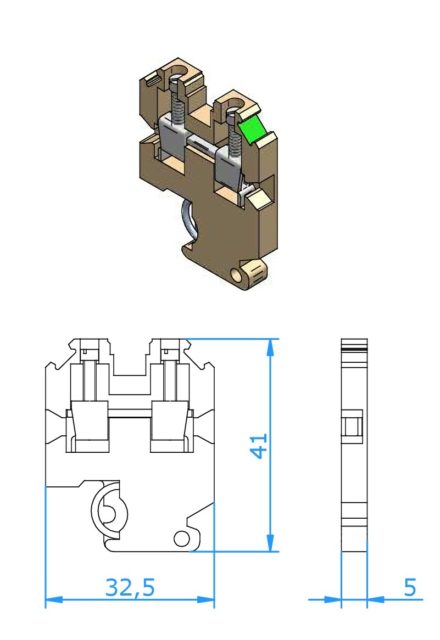

Mechanical design:

• Body in durable thermoplastic material
• Design will prevent accidental short circuit.
• The terminal width of 5 mm allows the maximum number of connections with the lowest possible space requirement.
• Screw connections for easy and quick installation.
• Can be ordered together with a mounting kit containing all required mounting components.
• Original thermocouple material strips

Conductor diameter:

• Reliable connection up to 2.5mm²

Temperature rating:

• Max. +100 ºC.

Designation:

• Installation part set number and polarity label for insertion into a labelling field.
• Further labels available on request.

Mounting kit for max 20 curiciuts in request:

• Rail 200 mm long
• Endplate
• Two end stops
• Circuit identification 1 thru 20

Discount on large quantities on request
