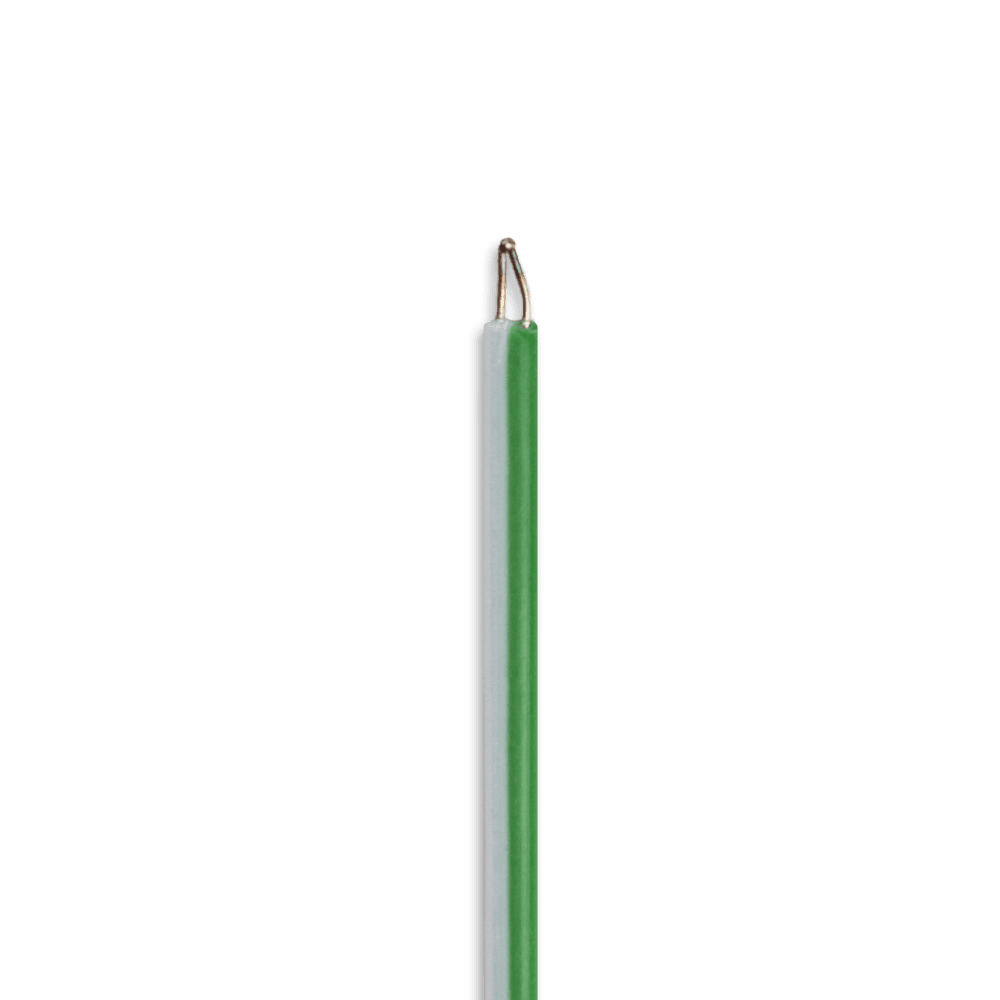

Inline thermocouple Type K
- gas-, steam- and watertight
- Temperature range: -75°C to +250 °C, short-duration to + 300 °C
- Wire type: Teflon,0.38 mm, solid, Tmax: +300 °C
Description
This inline thermocouple is especially invented for using under humid conditions. Compared with normal wire production this wire isolation is made in one work process, both conductors get moulded in Teflon at the same time. With this wire the measurement equipment is protected from capillary rising moisture through the wire.
Technical data
- Thermocouple pairing: Type K
- Limiting deviation: Cl.1 as per DIN EN 60584-1: 2014-07
- Conductor: TeflonTEX-27-KK-IEC-Special
- Insulation: PTFE-Teflon, 250 °C
- Conductor Ø: 2 x0.38 mm, solid
- Dimension: 2.0mm
- Wire length: 500–5,000 mm
- Connection: Selection
Discount on large quantities on request
