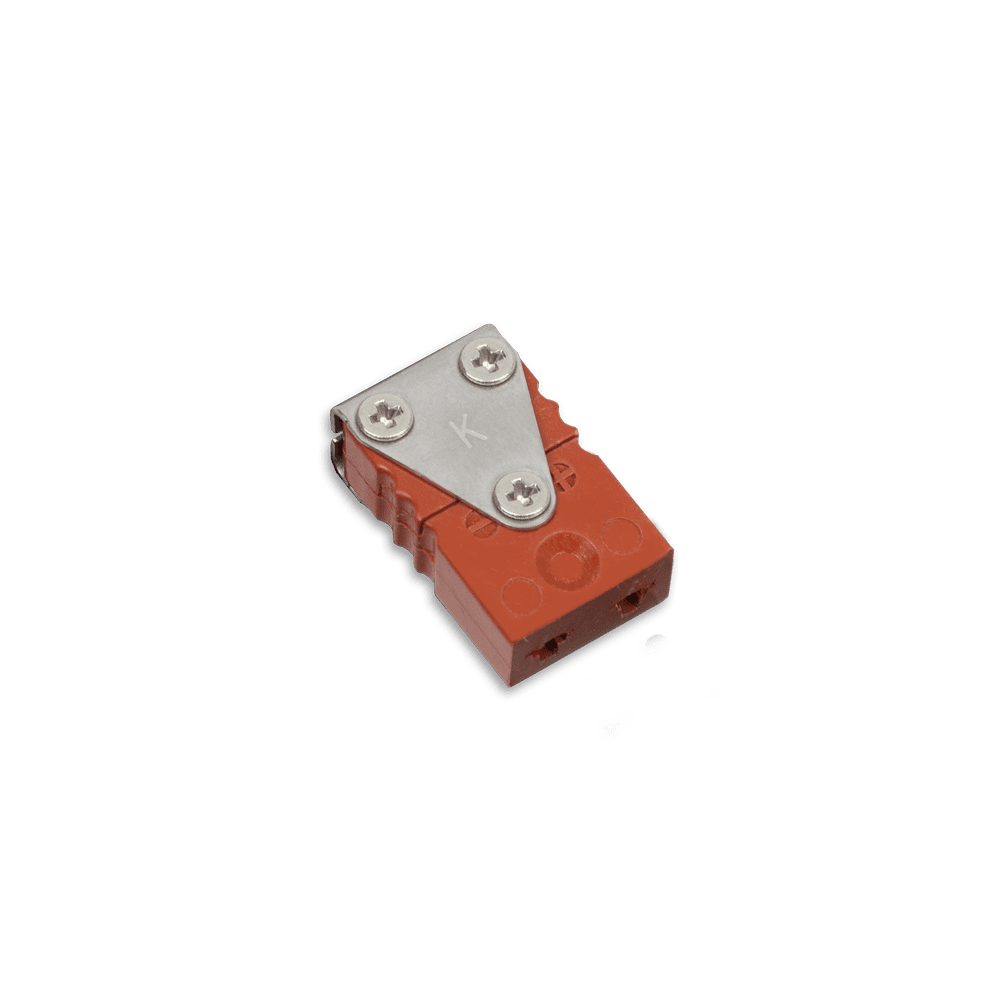

Connector jack Miniature | Ultra high-temperature (CMJU)

  • Temperature load +425 °C (+540°C)
  • Contacts of original thermocouple material pins
  • All major types available
» individual request
Range Discount
10 - 24 5%
25 - 49 10%
50 - 99 15%
100 + 20%
Sales only to companies, traders and institutions.
We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.
Description

Use:
Connectors for thermocouples and resistance thermometer measurement circuits. Suitable for measurement with small wires and mineral-insulated metal sheathed cables.

Mechanical design:

  • body of ultra high temp thermoset compound.
  • Contacts of original thermocouple materials and spring-loaded sockets for reliable contact.
  • Reverse polarity protection by different contact pin widths.
  • One-piece housing withstands great stresses.
  • Moulded barriers prevent short circuit.
  • Screw terminals enable quick connection.

Conductor diameter:

  • Accepts wires up to 0,6 mm.
  • Max. cable diameter 4.5 mm.

Temperature load:

  • +425 °C continuous, +540 °C intermittent


Available types:

  • online available: Type K, J, E, N, T, U, R/S, B
  • on request: Type C

Resistance themometer:

  • for RTD use type U (Cu/Cu).

Colour designations:

  • Body color brown. Calibration indication stamped on the stainless steel top-bracket.

Cmph Materialcode Eng

Discount on large quantities on request

Additional information
Weight 0,01 kg
