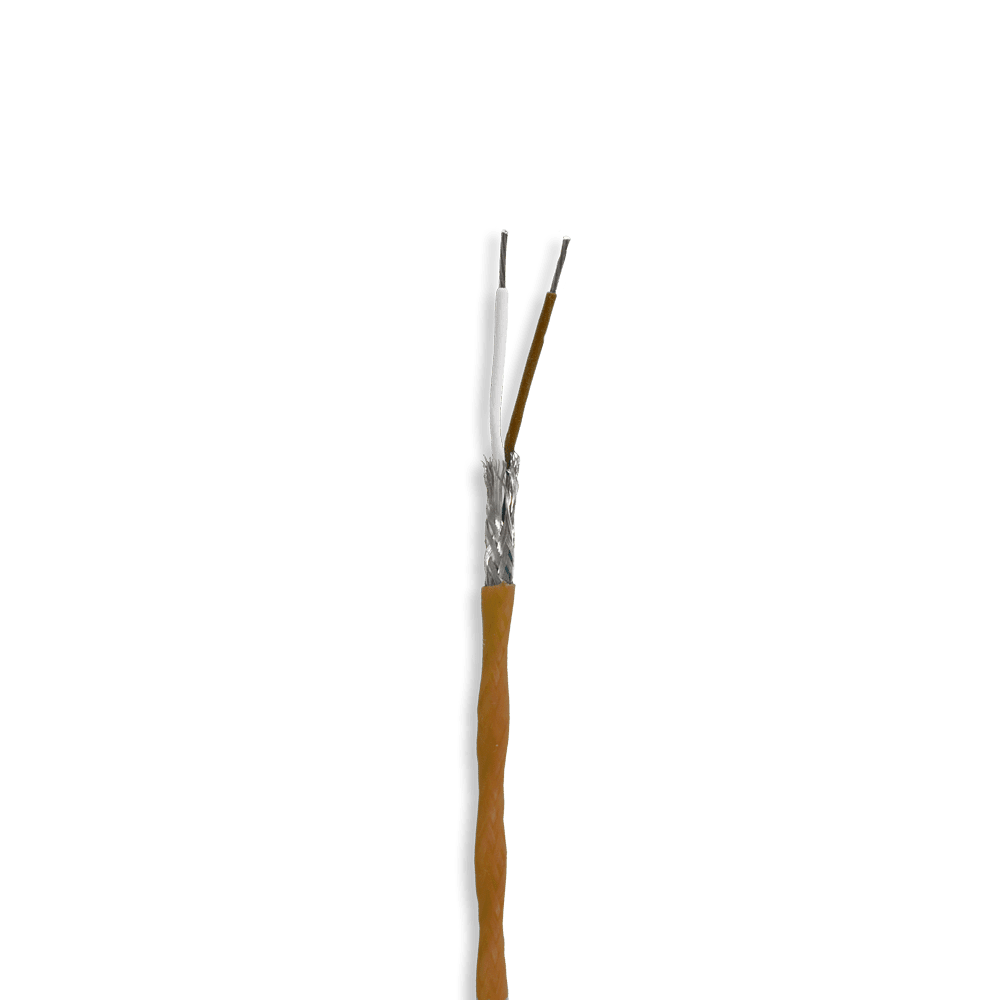

Thermowire
TEX/CUTEXTW-24F-TT-IEC
Technical data:
- Thermocouple combination: Cu-CuNi Type „T”
- Limiting deviation: Class 1, DIN IEC 584 Part 2, +/- 0.5 °C or 0.004 x | t |
- Stranded conductor: stranded, AWG 24F, 2 x 0.22 mm² (7 x 0.2 mm)
- Conductor insulation: FEP Teflon
- Conductor guide: stranded
- Braiding: Cu tin-plated
- Outer sheathing: FEP Teflon
- Operating temperature: -190 °C to +200 °C
- Outer dimension: approx. 3.0 mm round
- Sheathing colour: brwon
- Core colour: + = brown, – = white
Packaging
- individual lengths possible
- coiled as ring up to 25m
- more then 25m on a plastic coil
- delivery as one piece, if not diffrently declared
Discount on large quantities on request.
