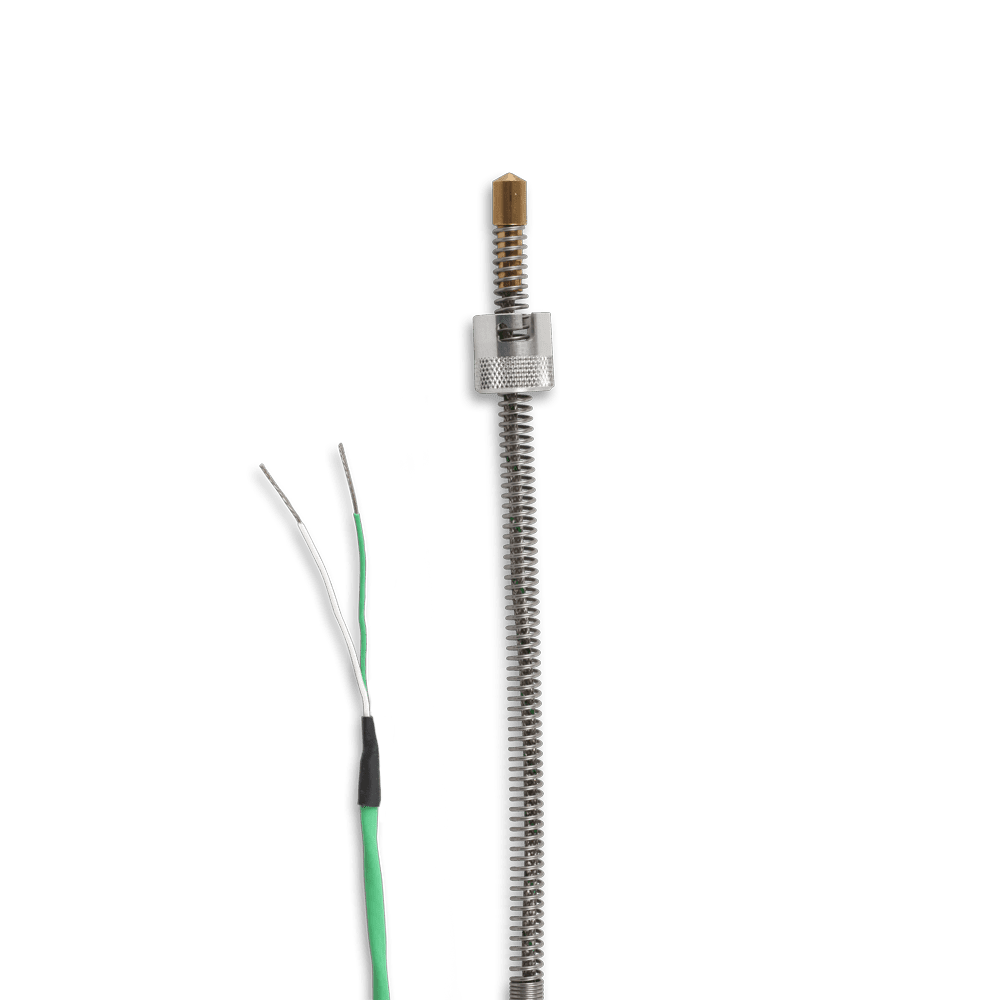

Plug-in thermocouple Type K
- Temperature range: -100 °C to +260 °C continuous
- Wire type: Teflon with CU shielding, Tmax: +200 °C continuous
Technical data
- Thermocouple pairing: Type K
- Limiting deviation:Cl. 1 as per DIN EN 60584-1: 2014-07
- Measuring point: insulated
- Probe housing: Brass
- Probe Ø: 6.0 x 10 or 8.0 x 10 mm
- Bayonet cap:interior approx. Ø 12.5 mm or 14.5 mm
- Positioning range:along the spring approx. 180 mm
- Conductor:Teflon with CU shielding
- Conductor insulation: Teflon
- Conductor: AWG 24F (2 x 0.22 mm²)
- Wire length: 500–5,000 mm
- Connection: Selection
Recommended bore diameter 6.4mm or 8.4mm.
Discount on large quantities on request
