Inline thermocouple Type K
- Temperature range: -100 °C to +450 °C
- Wire type: Fibreglass/fibreglass, 0.127 mm, wire, Tmax: +450 °C
Description

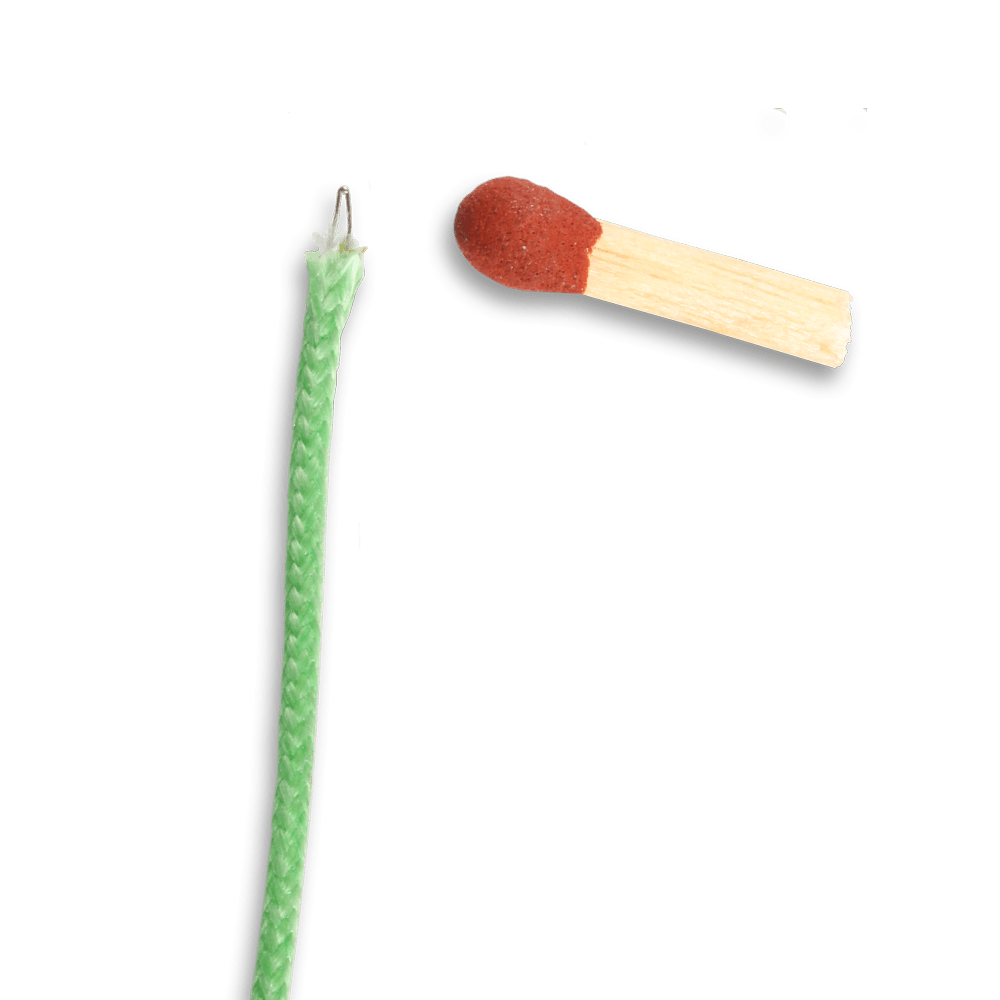

This inline thermocouple can be individually installed. For measurements in the wiring harness, on difficult to access points or on the smallest components. The extremely thin wire, not even 1 mm in diameter, facilitates highly flexible installation. The thin probe tip guarantees very rapid response.
Technical data
- Thermocouple pairing: Type K
- Limiting deviation:Cl. 1 as per DIN EN 60584-1: 2014-07
- Conductor: Fibreglass
- Insulation: Fibreglass, 450 °C
- Conductor Ø: 2 x 0.127 mm, solid
- Dimension: 0.9 x 1.2 mm
- Wire length: 500–5,000 mm
- Connection: Selection
Discount on large quantities on request
