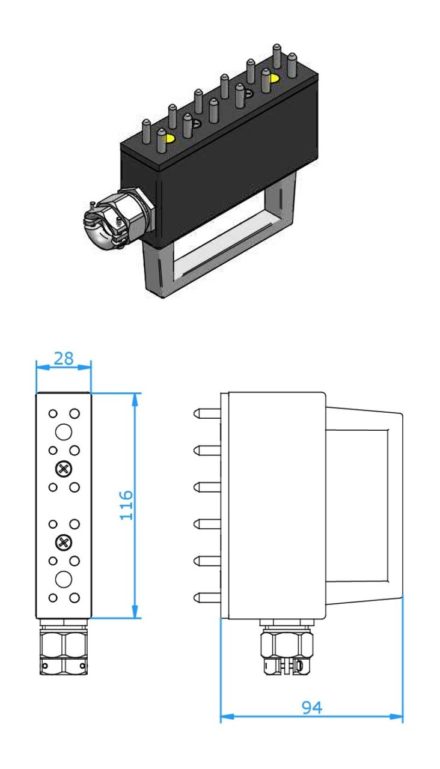

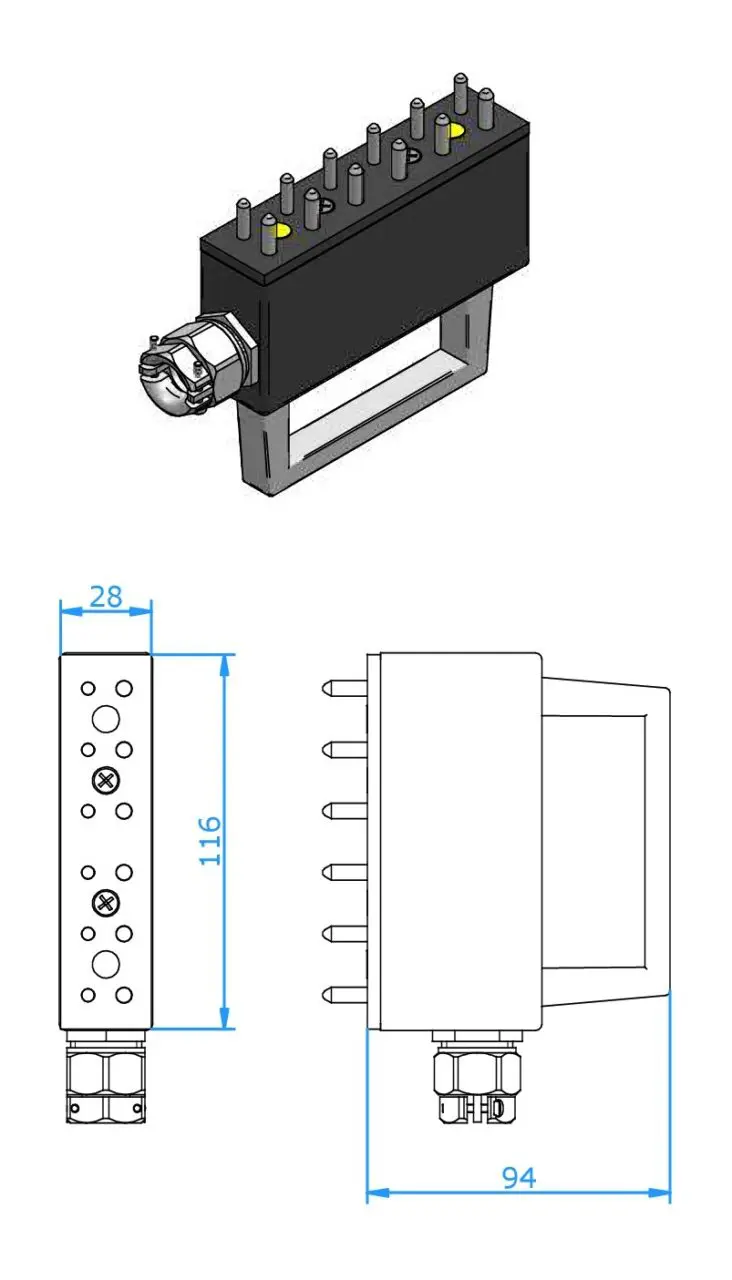

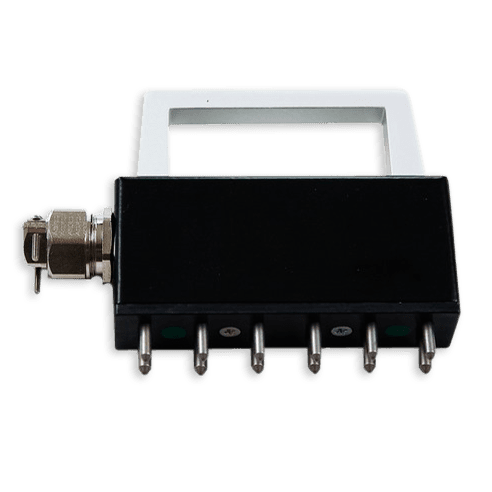

Multiple Plug Standard (MPS)

Use:
Multiple connectors for thermocouple and RTD circuits. Suitable for direct connection of up to 6 circuits simultaneously.

Mechanical design:

• Strong steel plate housing, coated with epoxy resin.
• Anodised aluminium handle for easy disconnection of the plug connectors.
• Available with contacts for 1 to 6 measurement circuits.
• Corresponds with Standard Vertical Panel Type “PASV-(…)” and Sandard Multiple Jack Type “MJS-(…)”.

Conductor diameter:

• Reliable connection from 0.2 mm to 1.5 mm diameter…
• Cable inlet screw fitting PG13 for cable diameter up to 15 mm.

Temperature load:

• Max. 200 °C.

Available types:

• online available: Type K, J, E, N, T, U, R/S
• on request: Type C

Colour designations:

• All international colour designations are available.

Material code:

Discount on large quantities on request
