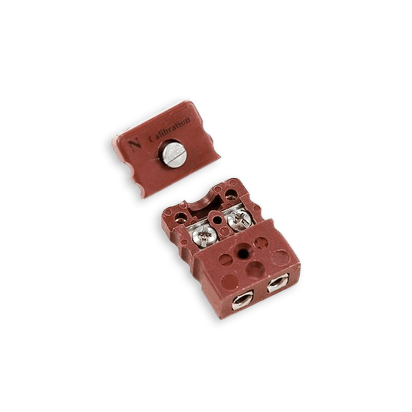

Coupling jack Standard | High-temperature (CSJH)

Use:
Plug connector for thermocouple and RTD circuits. The solid connector pins guarantee reliable connection under even the most difficult conditions. The special plastic used allows high working temperatures.

Mechanical design:

• Glass filled high quality thermoplastic body with original thermocouple material pins and springloaded inserts.
• Polarized pins.
• Central cover screw design for quick wiring.
• Molded barriers prevent short circuit.
• Captive cover screw for easy assembly.
• Easy wire connection through sandwich construction
• Stainless Steel screws with Phillips head

Conductor diameter:

• Accepts wires up to 1,6 mm.
• Max. cable diameter 8.0 mm.

Temperature rating:

• Max. +350 °C.

Available types:

• online available: Type K, J, E, N, T, U, R/S, B
• on request:
  • Type C
  • gold plated, hard nickel plated pins

  • hollow pins

Resistance themometer:

• for RTD use type U (Cu/Cu).

Colour designations:

• Colour of the connector-body is brown, calibration indication printed on body

Discount on large quantities on request
