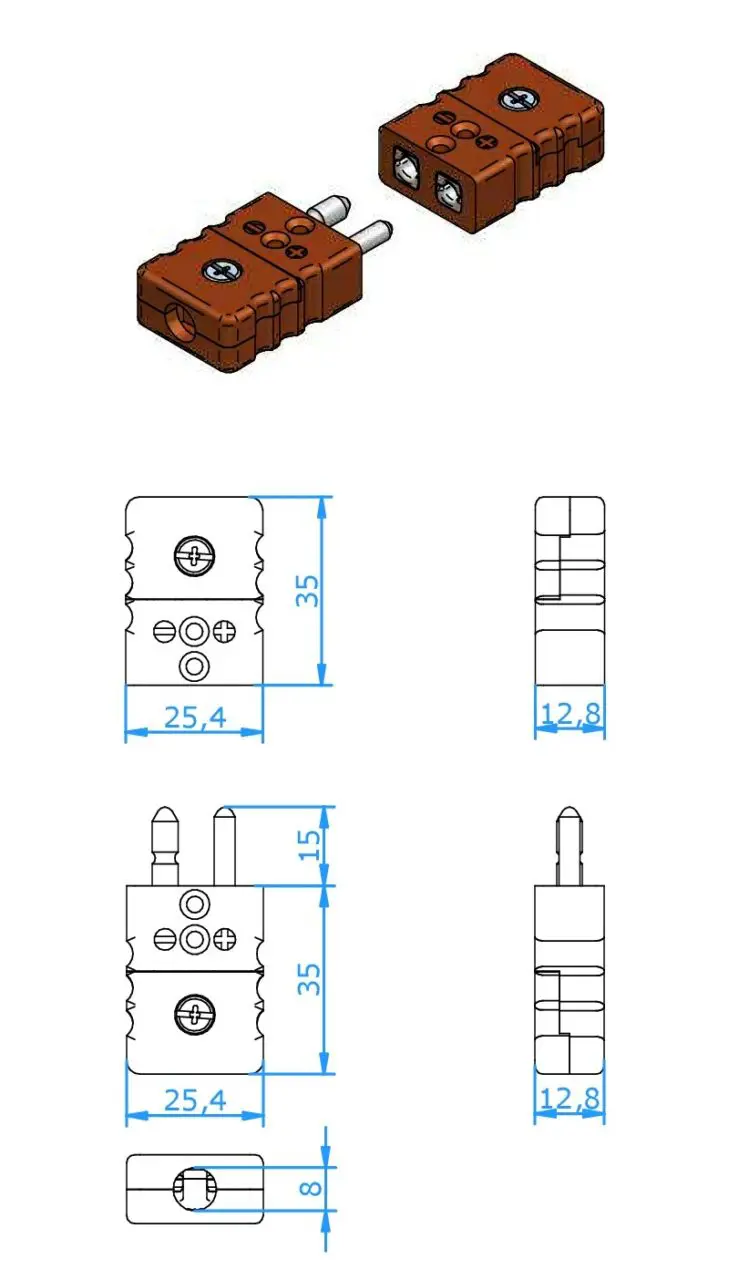

Plug connector for thermocouple and RTD circuits. The solid connector pins guarantee reliable connection under even the most difficult conditions. The special plastic used allows high working temperatures.
- Glass filled high quality thermoplastic body with original thermocouple material pins and springloaded inserts.
- Polarized pins.
- Central cover screw design for quick wiring.
- Molded barriers prevent short circuit.
- Captive cover screw for easy assembly.
- Easy wire connection through sandwich construction
- Stainless Steel screws with Phillips head
- Accepts wires up to 1,6 mm.
- Max. cable diameter 8.0 mm.
- Max. +350 °C.
- online available: Type K, J, E, N, T, U, R/S, B
- on request:
- Type C
- gold plated, hard nickel plated pins
- hollow pins
- for RTD use type U (Cu/Cu).

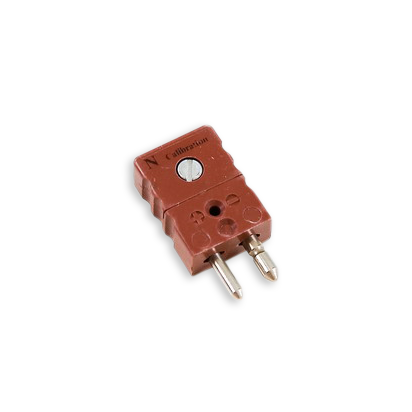

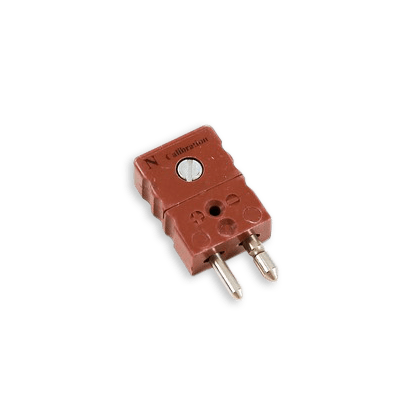

- Colour of the connector-body is brown, calibration indication printed on body
Discount on large quantities on request
