Startseite » Shop » Thermo connectors » Miniature connectors » Connector Miniature » Connector plug Miniature | Ceramic (CMPC)
Previous product

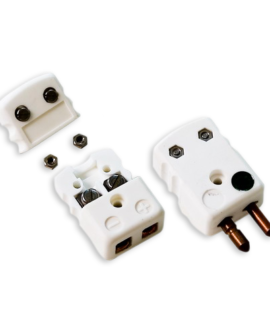

Connector plug + Coupling jack Standard | Ceramic (CSPC-CSJC) 19,84 €
Back to products
Next product

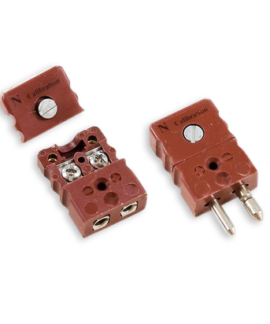

Connector plug + Coupling jack Standard | High-temperature (CSPH-CSJH) 19,62 €
Click to enlarge

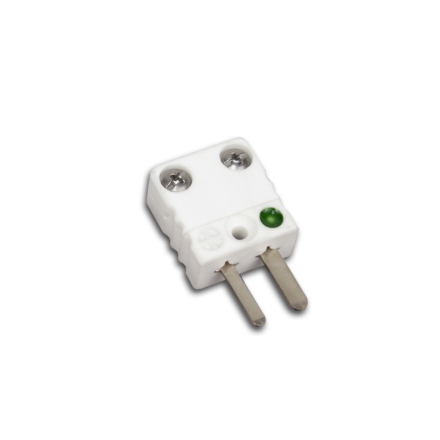

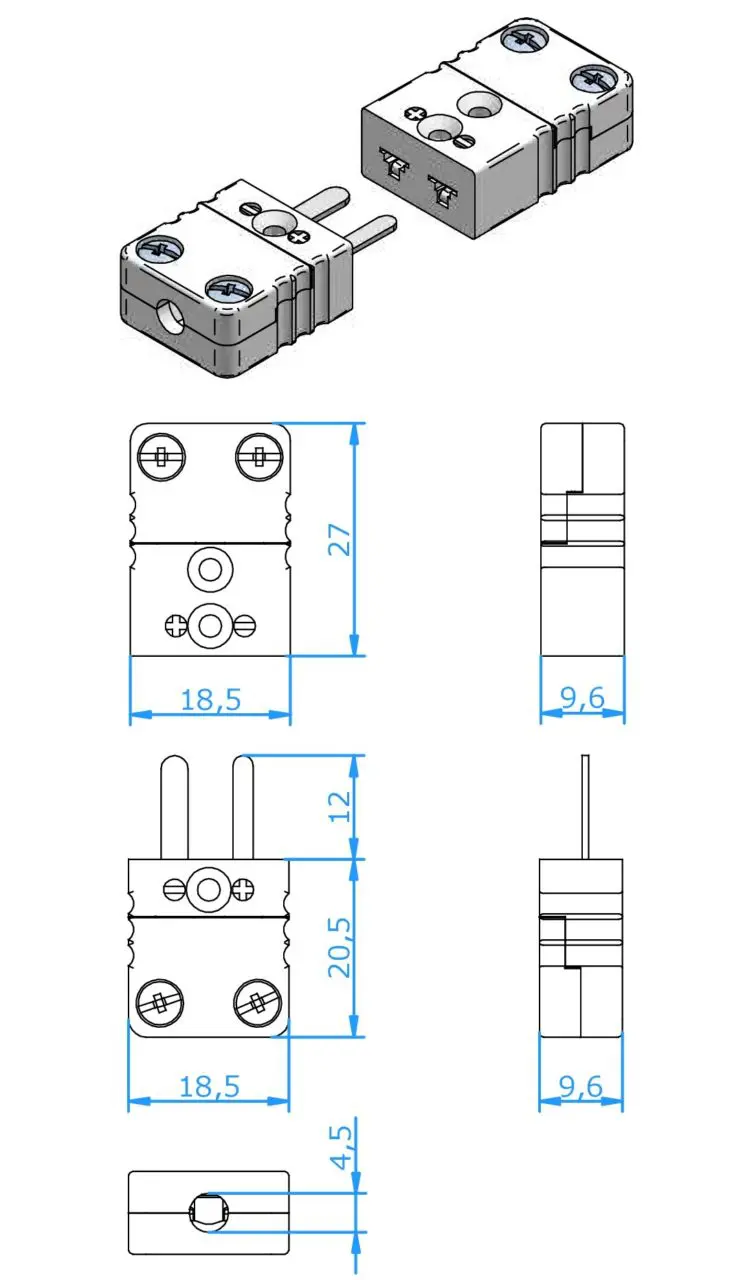

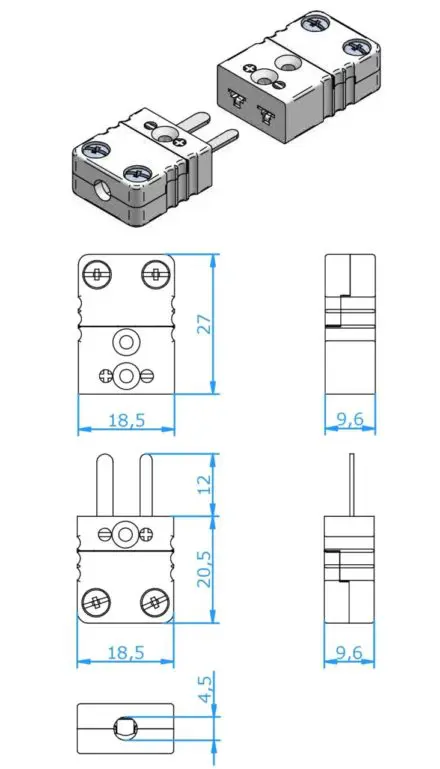

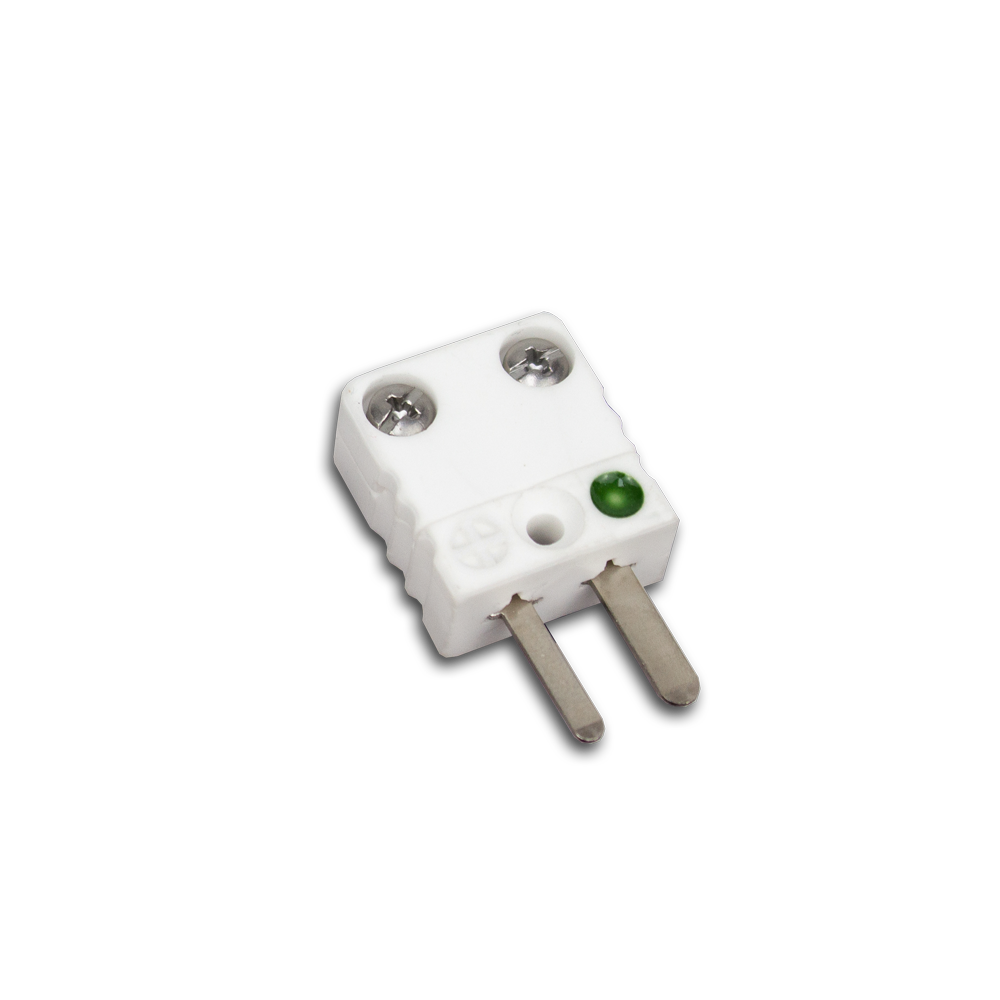

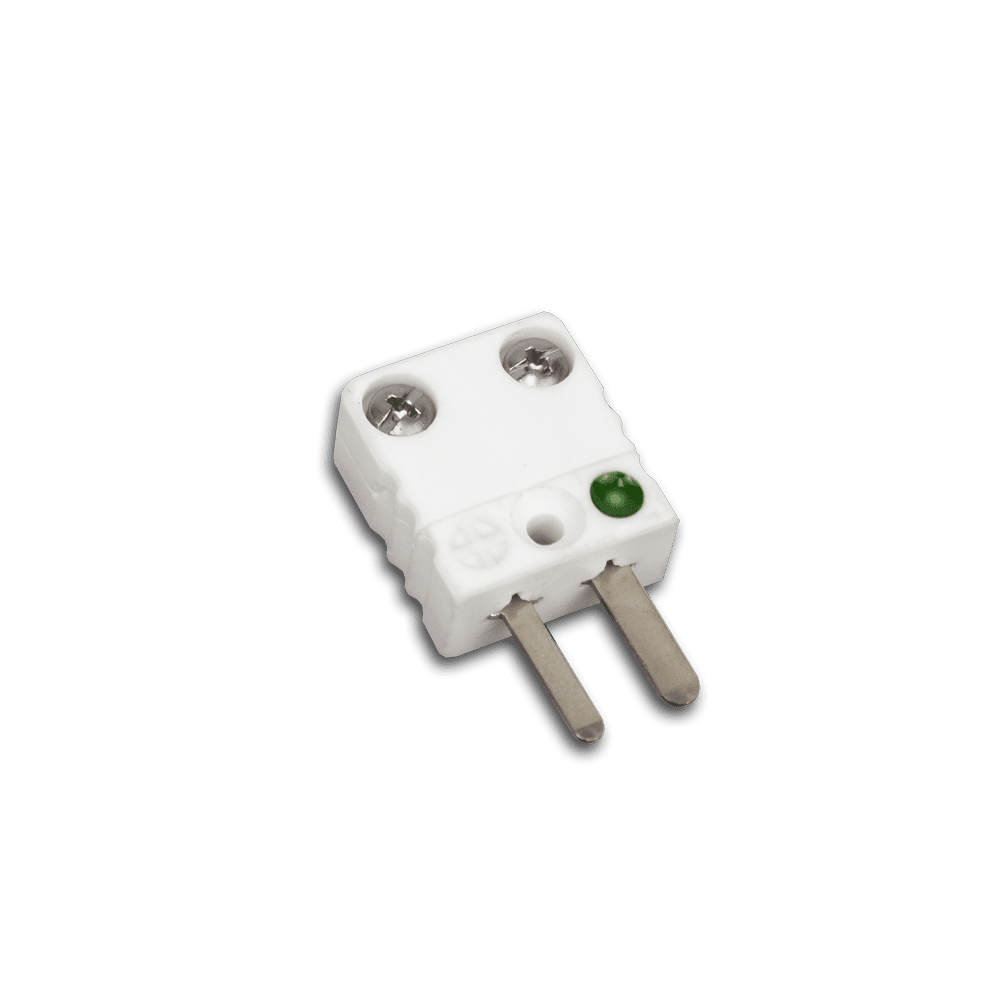

Connector plug Miniature | Ceramic (CMPC)

  • Temperature load max. +650 °C
  • Contacts of original thermocouple material pins
  • Ceramic housing

Title Range Discount
Rabattstaffel 1 26 - 50 10% 8,46 €
Rabattstaffel 2 51 - 100 20% 7,52 €
Rabattstaffel 3 101 + 25% 7,05 €
close
Categories
  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

Use:
Connectors for thermocouples and resistance thermometer measurement circuits. Suitable for measurement with small wires and mineral-insulated metal sheathed cables.

Mechanical design:

  • Ceramic housing with contacts of original thermocouple materials and
spring-loaded sockets for reliable contact .
  • Reverse polarity protection by different contact pin widths.
  • Oversize screw head for easy wiring.
  • One body design
  • High purity alumina body material

Conductor diameter:

  • Accepts wires up to 0,6 mm.
  • Max. cable diameter 4.5 mm.

Temperature load:

  • Max. +650 °C.


Available types:

  • online available: Type K, J, E, N, T, U, R/S, B
  • on request: Type C

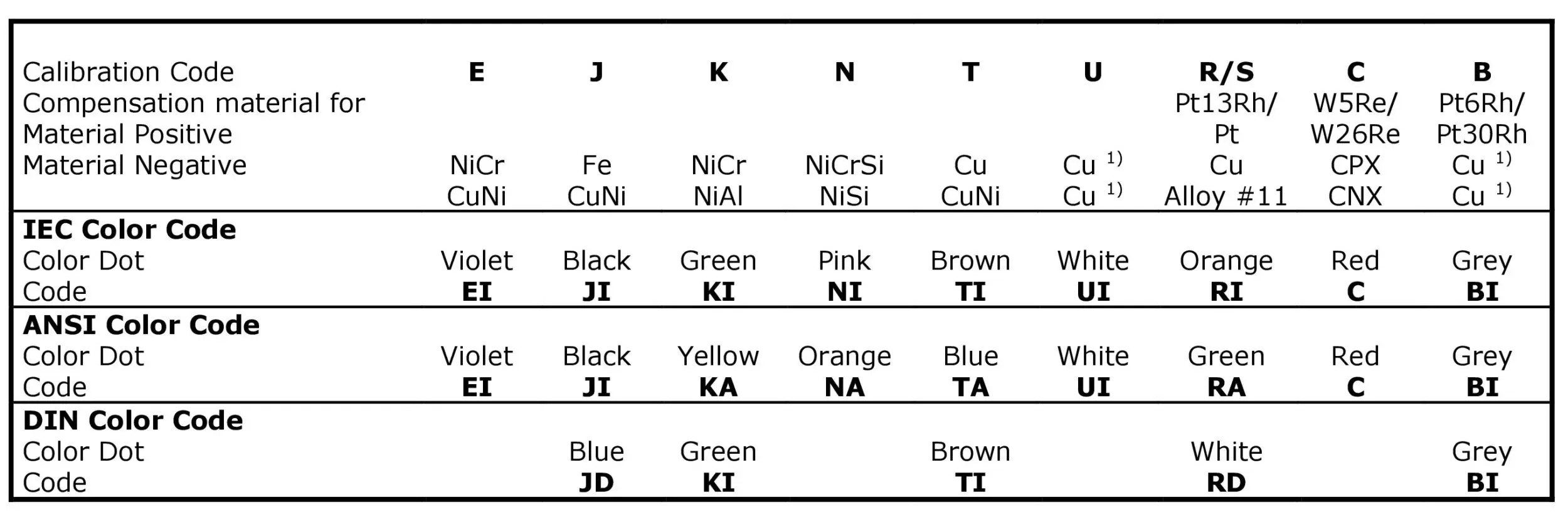

Colour designations:

  • Body colour white. Calibration indication by coloured dot

Material-Code:

Discount on large quantities on request

Additional information
Weight 0.01 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 42 Categories: Connector Miniature, Miniature connectors, Thermo connectors

You may also like…

Select options
Close

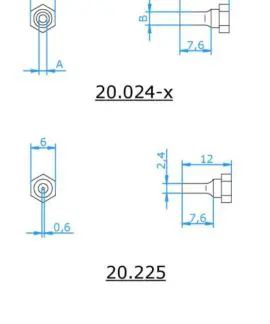

Crimp Insert

1,57 €
Select options
Close

Connector plug + Coupling jack Miniature | Ceramic (CMPC-CMJC)

18,80 €
Select options
Close

Coupling jack Miniature | High-temperature (CMJH)

6,34 €
Select options
Close

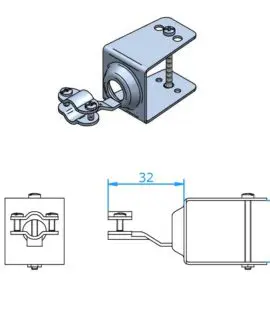

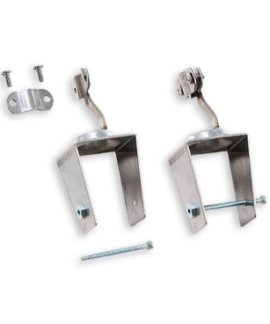

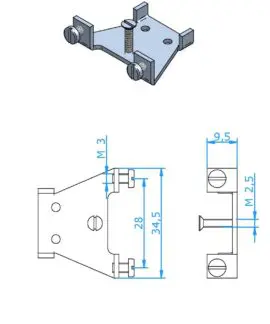

Wire Clamp Bracket

2,67 €

Related products

Select options
Close

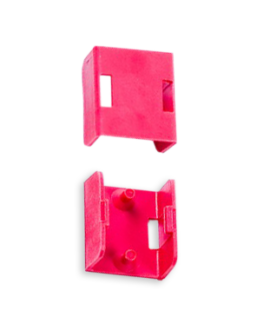

Protection Boot

2,61 €
Select options
Close

Protection Boot

2,00 €
Select options
Close

Panel Miniature Insert Round Direct Mount (PMIR)

5,36 €
Select options
Close

Connector plug + Coupling jack Miniature (CMP-CMJ)

8,62 €
Select options
Close

High Temperature Panel Miniature Insert (PMIH)

10,23 €
Select options
Close

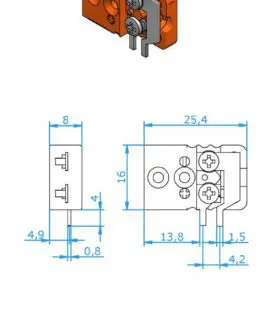

Connector Miniature Jack PCB Side Mounting (CMJ-XXPS)

5,34 €
Select options
Close

Wire insert

1,16 €
Select options
Close

Grommet

0,17 €
Select options
Close

Panel Miniature Insert Lugged (PMIL)

4,42 €
Add to cart
Close

Bending Protection

0,52 €
Select options
Close

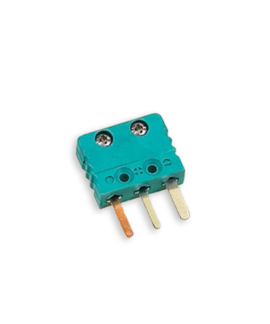

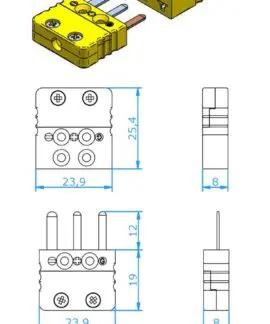

Connector plug Miniature | Three-pin (CMPT)

6,12 €
Select options
Close

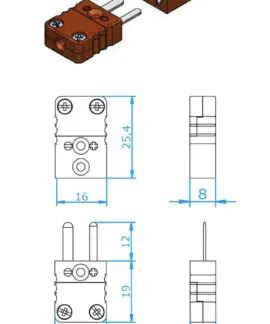

Connector plug Miniature | High-temperature (CMPH)
