Tube Adapter

Stainless steel compression fitting with a brass ferrule
suitable for standard connector

Title	Range	Discount
Rabattstaffel 1	10 - 24	5% 7,73 €
Rabattstaffel 2	25 - 49	10% 7,33 €
Rabattstaffel 3	50 - 99	15% 6,92 €
Rabattstaffel 4	100 +	20% 6,51 €

Sales only to companies, traders and institutions.

We manufacture according to individual configuration within 1-2 weeks and according to your requirements. Our probes and sensors are completely produced within a very short time at our location in Germany.

Description

Application:
Can be used to mount the connector on mineral insulated metal sheathed cable or a tube type thermocouple.

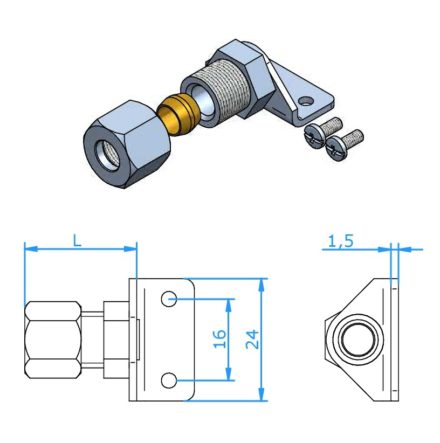

Construction

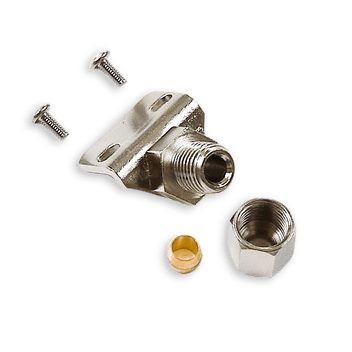

Stainless steel compression fitting with a brass ferrule on stainless steel bracket
suitable for standard connector (standard, jab-in, high-temperature, three-pin)

Order no.

Number	dimension	L (mm)	HEX
20.154-1	1,7 mm – 1/16’’	+/- 19 mm	10
20.154-2	3,3 mm – 1/8’’	+/- 20 mm	10
20.154-3	4,9 mm – 3/16’’	+/- 23 mm	13
20.154-4	6,5 mm – 1/4’’	+/- 24 mm	13
20.154-5	8,1 mm – 5/16’’	+/- 25 mm	16
20.154-6	6,0 mm	+/- 24 mm	13
20.154-7	9,7 mm – 3/8’’	+/- 26 mm	16

Discount on large quantities on request

Additional information

Weight	0,01 kg
