Startseite » Shop » Motor sports » Sensors for tyre and braking systems » Brake fluid sensor
Tube Adapter 8,14 €
Back to products
Plug-in thermocouple with cap nut 90,00 €
Click to enlarge

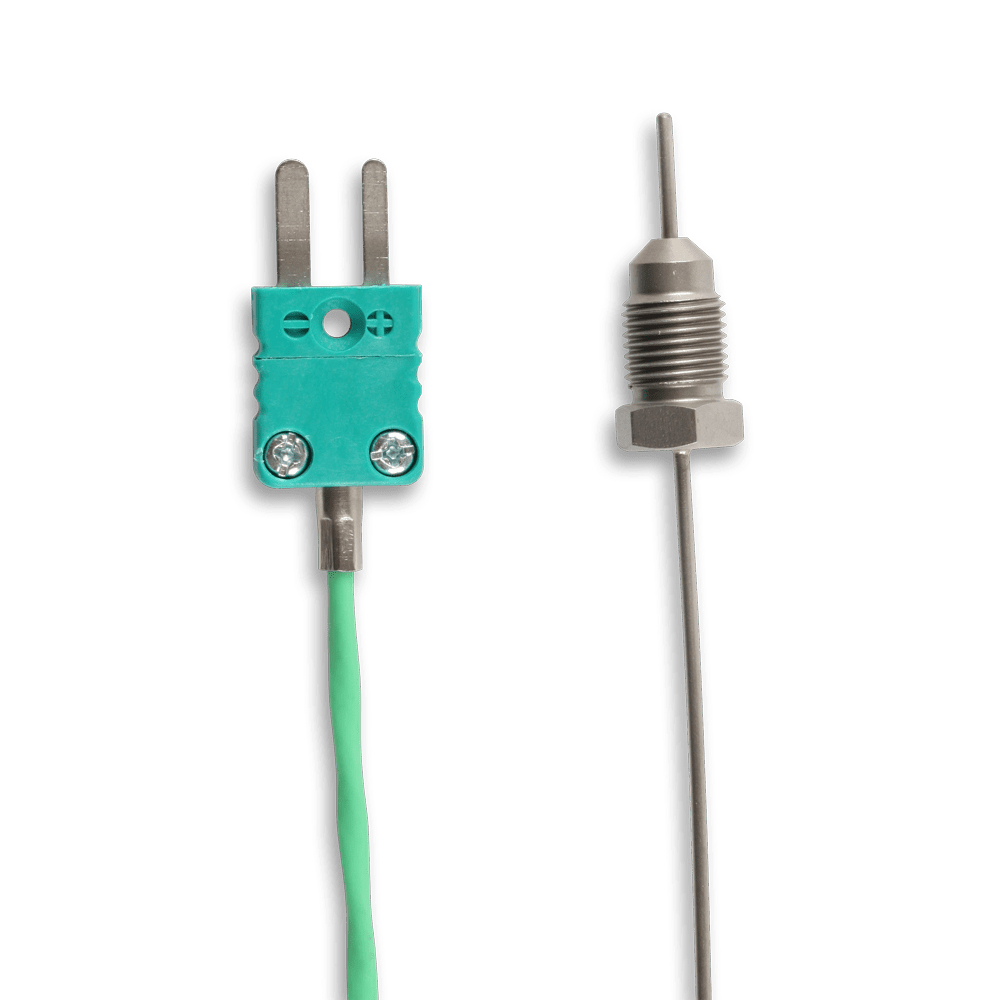

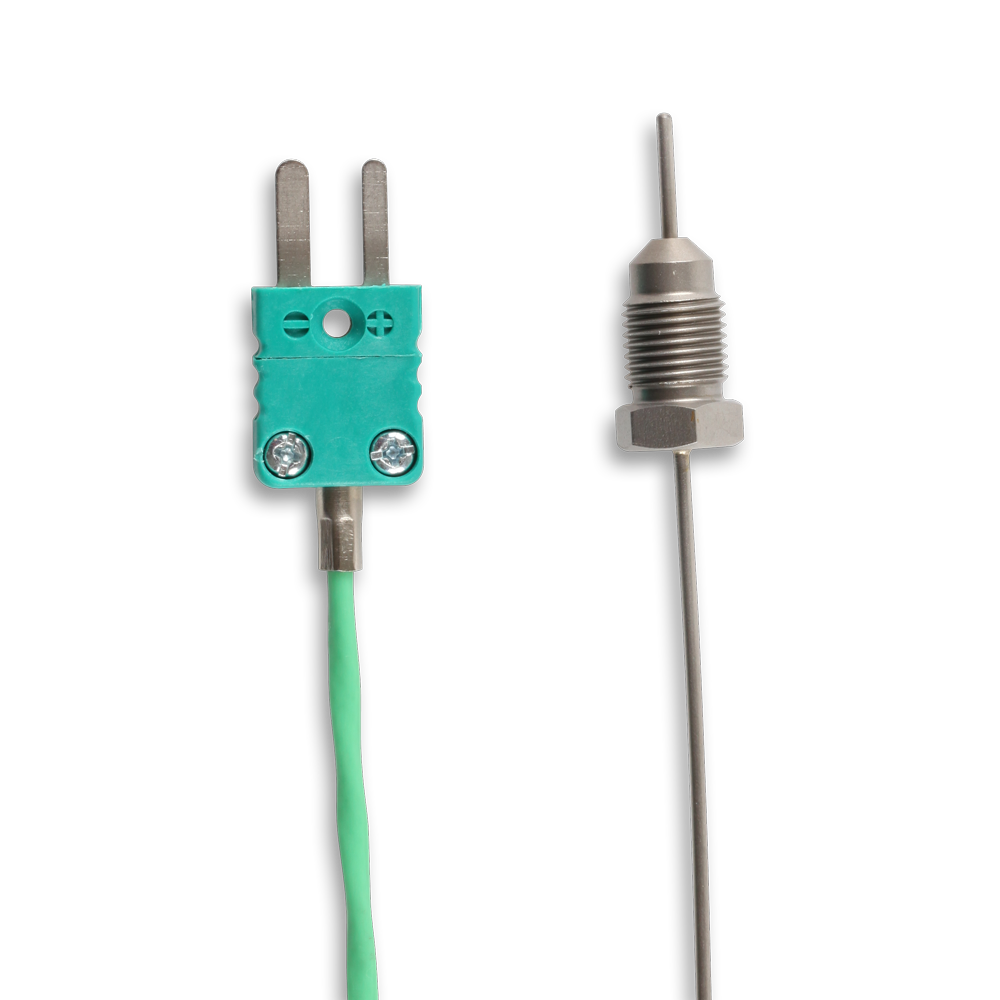

Brake fluid sensor

temperature measurement of the brake fluid

Close

Categories

  • Thermocouples
    • Sheathed thermocouple
      • Type K
      • Type N
      • Type T
      • Type J
    • Sheathing-tube thermocouples
    • Screw-in thermocouple
    • Surface thermocouple
    • Wire thermocouple
    • Plug-in thermocouple
    • Dipstick-Thermocouples
    • Accessories Thermocouples
  • Resistance thermometers
    • Wire resistance thermometer
    • Sheating tube resistance thermometer
    • Screw-in resistance thermometer
    • Plug-in resistance thermometer
    • Sheathing resistance thermometer
    • Surface resistance thermometer
  • Wires and cables
    • Thermowires
      • Type "K"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Fibreglas
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Fibreglass
        • Other
      • Type "N"
    • Compensating wires
      • Type "K"
        • Teflon
        • Kapton
        • Other
      • Type "J"
        • Teflon
        • Kapton
        • Other
      • Type "T"
      • Type "L"
        • Teflon
        • Other
      • Type "N"
    • Connection wires
      • Teflon
      • Fibreglass
      • Silicone
    • Extensions
  • Thermo connectors
    • Miniature connectors
      • Connector Miniature
      • Panel Miniature Insert
      • Panel Miniature
      • PCB jacks
      • Accessories Miniature
    • Standard connectors
      • Connector Standard
      • Panel Standard Insert
      • Panel Standard
      • Accessories Standard
    • Other connectors
  • Compression fittings
  • Displays
  • Transmitters
  • Motor sports
    • Water temperature sensor
    • Exhaust gas temperature sensors
    • Sensors for tyre and braking systems
    • Sensors for exhaust systems
    • Sensors for fluids
    • Displays and transmitters
    • Thermocouples Accessories

The shop for sensors and thermocouples

Our Therma online shop for sensors and thermocouples is only aimed at companies, traders and institutions.
Your direct contact to us:
+49 (0) 2266 / 487330-30
info@thermagmbh.de
or contact form

Therma Gmbh Handmade In Germany Quadrat
  • Description
  • Additional information
Description

MST-20269 – Brake fluid-thermocouple type”K”, NiCr-Ni, Cl. 1

The braking fluid thermocouple from Therma convinces not only with its compact construction but also with its simple installation. Just screw it in in-place of the air vent screw to measure the temperature of the brake fluid. The subsequent sheathing line can then be comfortably bent in the required direction. When the thermocouple is screwed in, the braking system is then vented through its thread.

The temperature measurement of the brake fluid, along with the brake disc surface measurement, also supplies important control values for a successful and safe race. During long races or races with many downhill routes, the brake disc overheats over-proportionally. The accruing radiation heat during this has a direct effect on the brake fluid, respectively heats it up. Depending on the type of brake fluid being used, it already reaches its boiling point at approx. 140–260 °C. The air bubbles which develop during this primarily cause the compression of the gas when the braking pressure is built-up, which in the worst case can lead to the complete failure of the braking system, but will at least cause a great loss of braking force. Furthermore, the measurements help optimise the brake system.

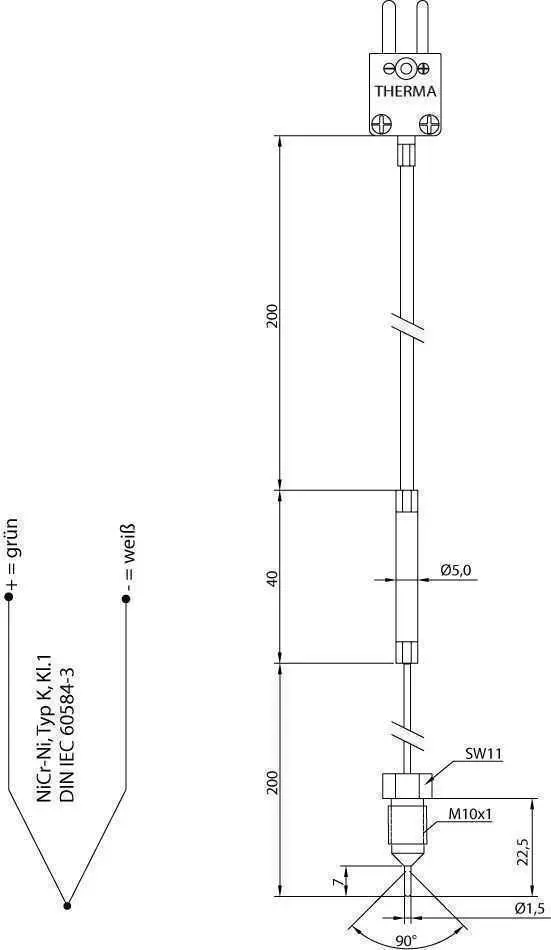

Technical Data

  • Sheathed thermocouple NiCr-Ni, Type “K”
  • Limiting deviation: Cl. 1 as per DIN EN 60584-1: 2014-07
  • Sensor diameter: 1.5 mm
  • Sheathing material: Inconel600
  • Measuring point: hot junction insulated
  • Sensor length: 100 mm or 200 mm
  • Installation length: 22.5 mm
  • Thread: M10x1
  • Adapter sleeve: VA 5.0 x 40 mm
  • Line length: 1,000 mm, 2,000 mm or 3,000 mm
  • Line type: FEP-Teflon with Cu shield
  • Conductor: Strand, 2x 0.22 mm²
  • Temperature range of the line: up to 205 °C in continuous duty, 230 °C peak
  • Connection: free ends, mini-plug, mini-plug self-locking, analogue 0–5 V (THK)
Additional information
Weight 0,05 kg

Your advantages with us for over 30 years
  • Entire production made in Germany (handmade)
  • German specialists (employees mostly since the beginning of the company and family business 25+ years in the company)
  • High quality and durability (high quality materials, better and experienced manufacturing)
  • Production individually made to measure
  • Further scale of discounts on request
SKU: 121 Categories: Motor sports, Sensors for tyre and braking systems

You may also like…

-1%
Add to cart

Digital Quick Response Thermometer for NiCr-Ni, Type K

73,45 € 72,99 €
Select options

Digital thermometer for NiCr-Ni, Pt100 or Pt1000

59,80 €
Select options

Connector plug Miniature | Locking (CMLP)

7,10 €
Select options

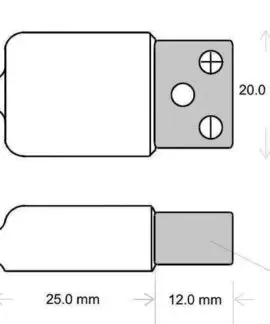

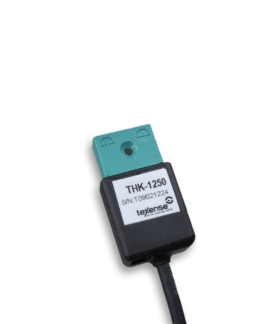

THK – Thermocouple Amplifier

136,00 €
Select options

Connector plug + Coupling jack Miniature (CMP-CMJ)

8,62 €
Select options

Coupling jack Miniature | Locking (CMLJ)

7,10 €
Select options

TEX/CUTEXTW-24F-KK-IEC | 10 m

35,90 €

Related products

Select options

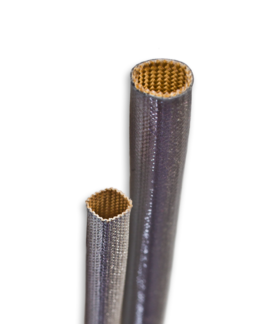

Heat protection sleeve TEXTALU® 1202
